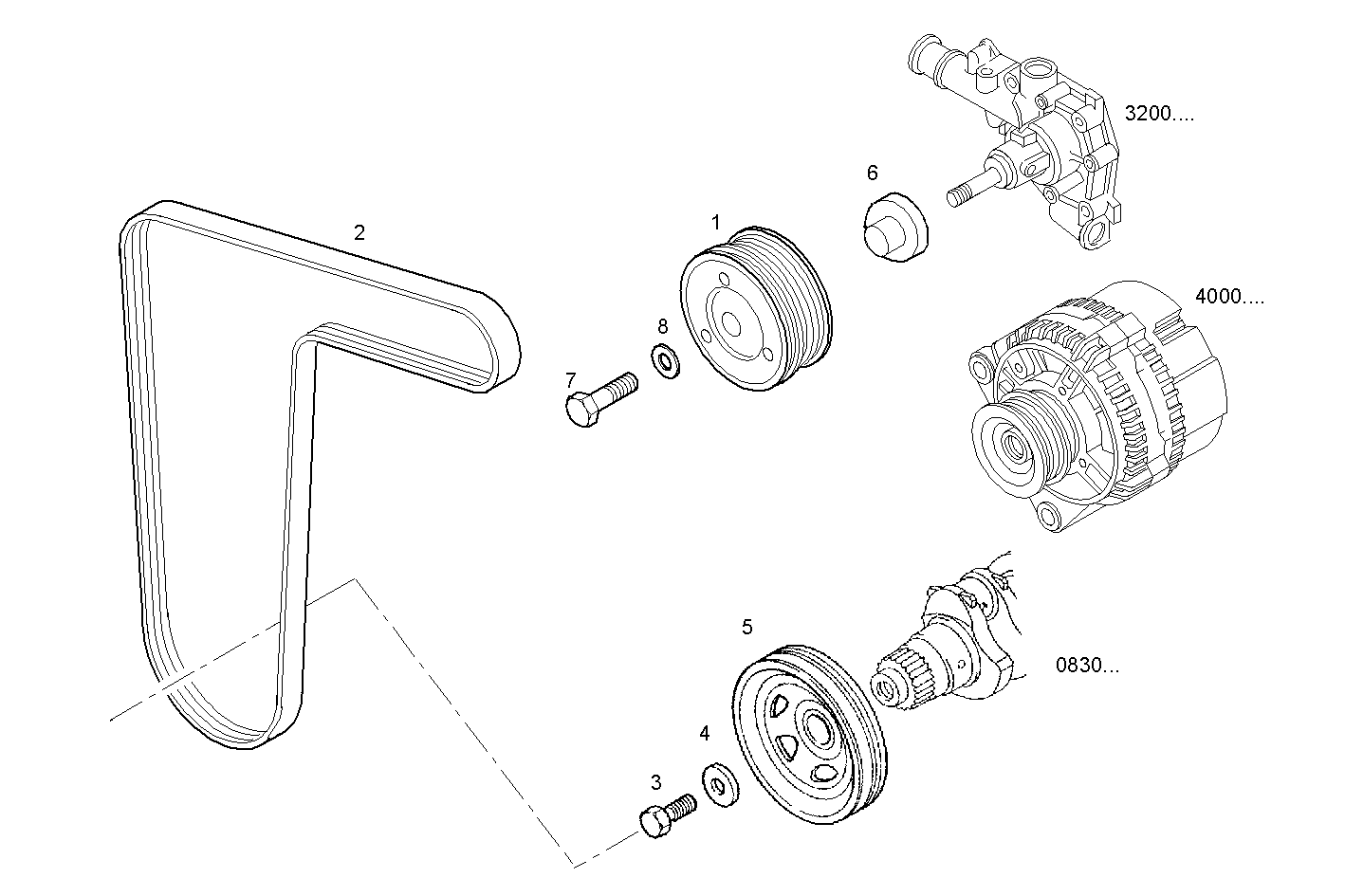

PULLEYS AND BELTS
8140SRC31.35L002- 1C — 8140SRC31
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8028147 | PULLEY PULLEY | 1 | |
| 2 | 500368902 | WATER PUMP BELT WATER PUMP BELT | 1 | |
| 3 | 98432123 | SCREW SCREW | 1 | |
| 4 | 98429488 | SPACING BAR SPACING BAR | 1 | |
| 5 | 500332830 | CRANKSHAFT PULLEY CRANKSHAFT PULLEY | 1 | |
| 6 | 8034600 | SPACING BAR SPACING BAR | 1 | |
| 7 | 16690624 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 3 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 3 |
