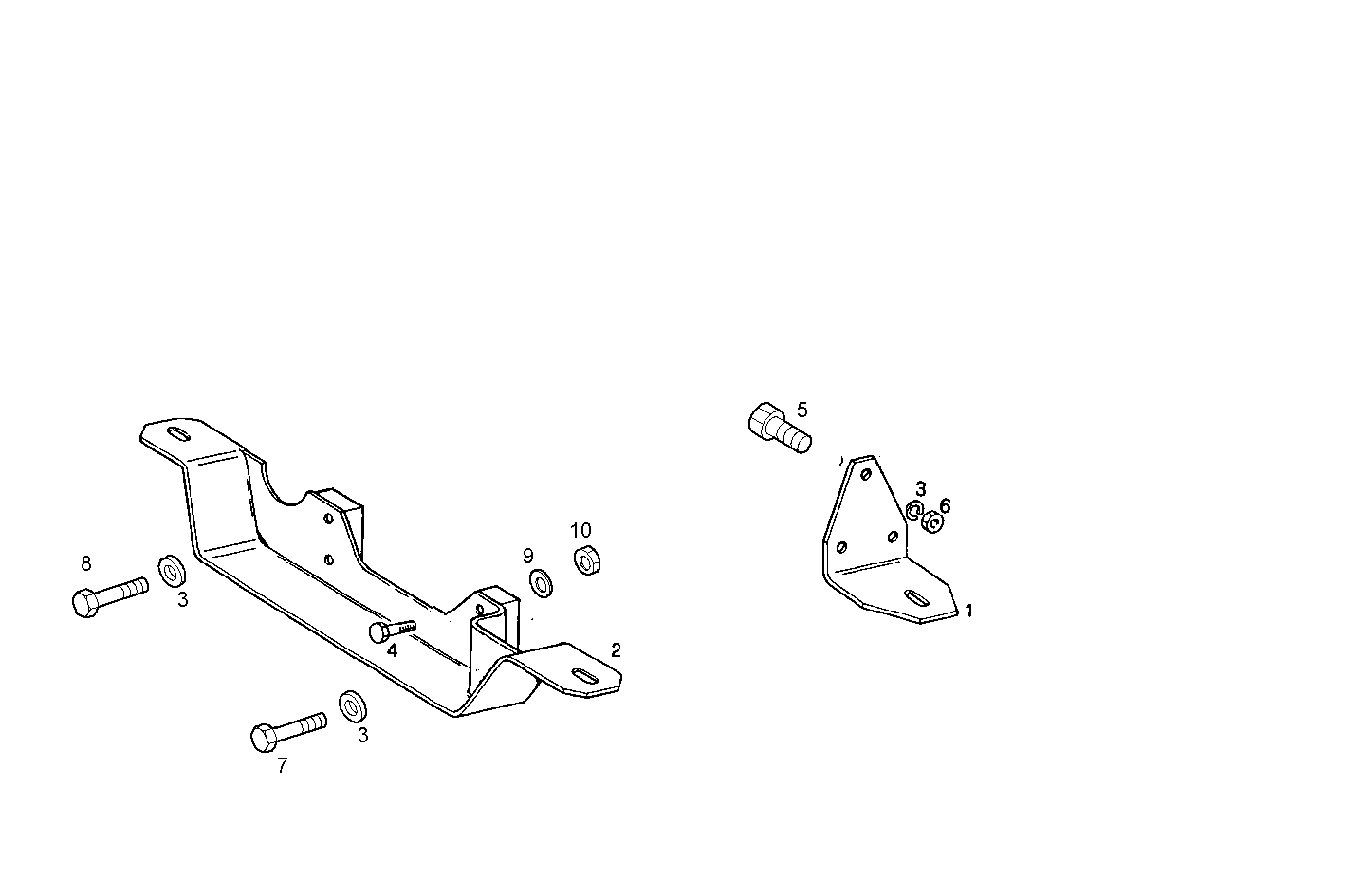

RIGID MOUNTING
8140SRC31.35L002- 1D — 8140SRC31
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4919262 | SUPPORT SUPPORT | 2 | |
| 2 | 8021704 | SUPPORT SUPPORT | 1 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 10 | |
| 4 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 16607734 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 6 | 17038121 | HEXAGON NUT HEXAGON NUT | 6 | |
| 7 | 15972224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 11306924 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 17037925 | HEXAGON NUT HEXAGON NUT | 2 |
