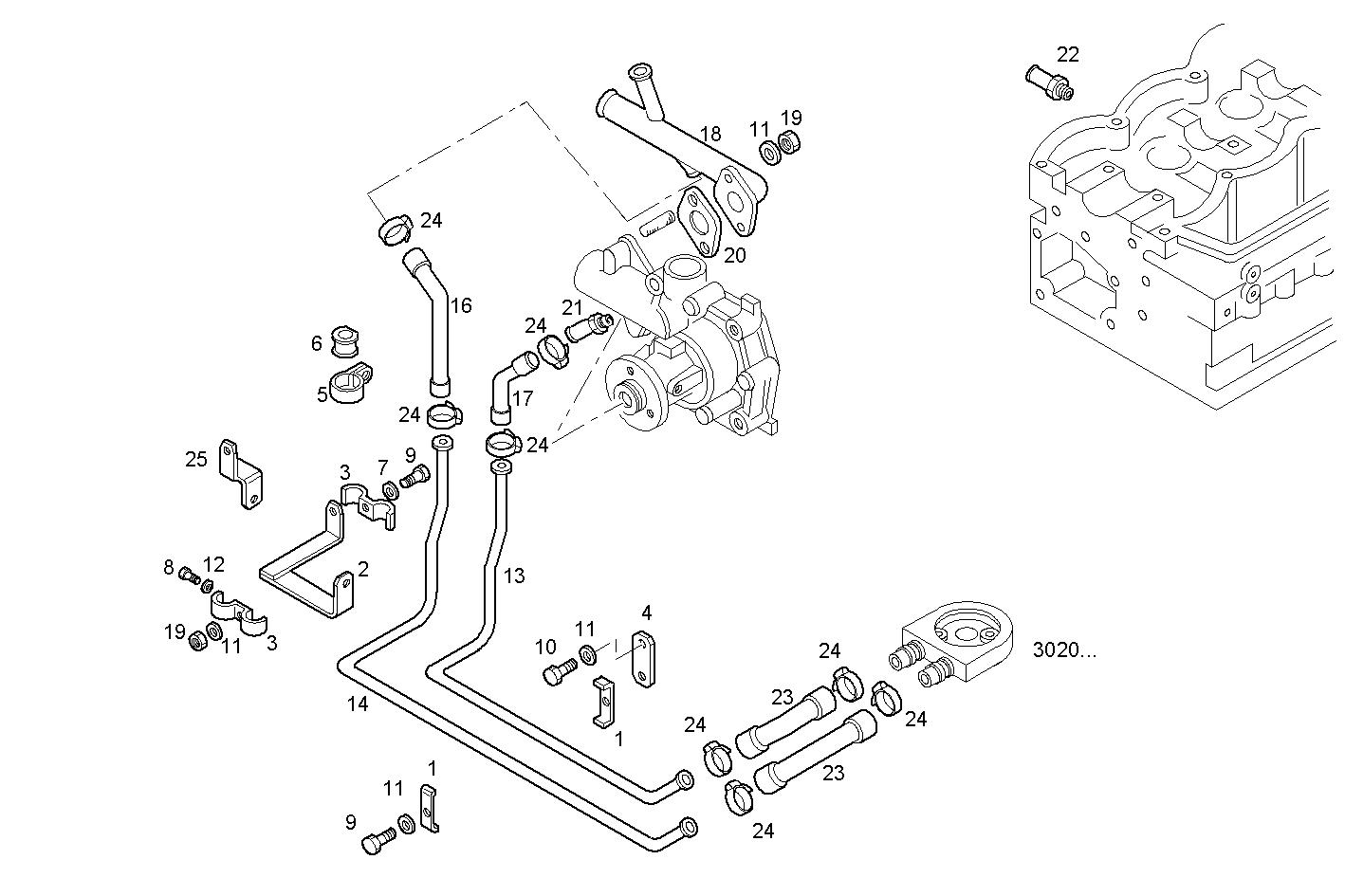

WATER LINES
8140SRC31.35L002- 1D — 8140SRC31
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4837062 | CLIP CLIP | 4 | |
| 2 | 98457736 | RETAINER RETAINER | 1 | |
| 3 | 4837065 | CLIP CLIP | 2 | |
| 4 | 4837072 | RETAINER RETAINER | 2 | |
| 5 | 4837087 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 4837090 | RUBBER PAD RUBBER PAD | 1 | |
| 7 | 14496501 | WASHER WASHER | 1 | |
| 8 | 15540321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 10 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 12 | 17091074 | WASHER WASHER | 1 | |
| 13 | 98443321 | WATER PIPE WATER PIPE | 1 | |
| 14 | 98443320 | WATER PIPE WATER PIPE | 1 | |
| 16 | 98443337 | WATER HOSE WATER HOSE | 1 | |
| 17 | 1904633 | WATER HOSE WATER HOSE | 1 | |
| 18 | 98443322 | WATER PIPE WATER PIPE | 1 | |
| 19 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 20 | 98430478 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 21 | 98433822 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 22 | 99447076 | CONNECTION PIPE CONNECTION PIPE | 1 | |
| 23 | 98443339 | WATER HOSE WATER HOSE | 2 | |
| 24 | 98463347 | CLIP CLIP | 8 | |
| 25 | 98443332 | RETAINER RETAINER | 1 |
