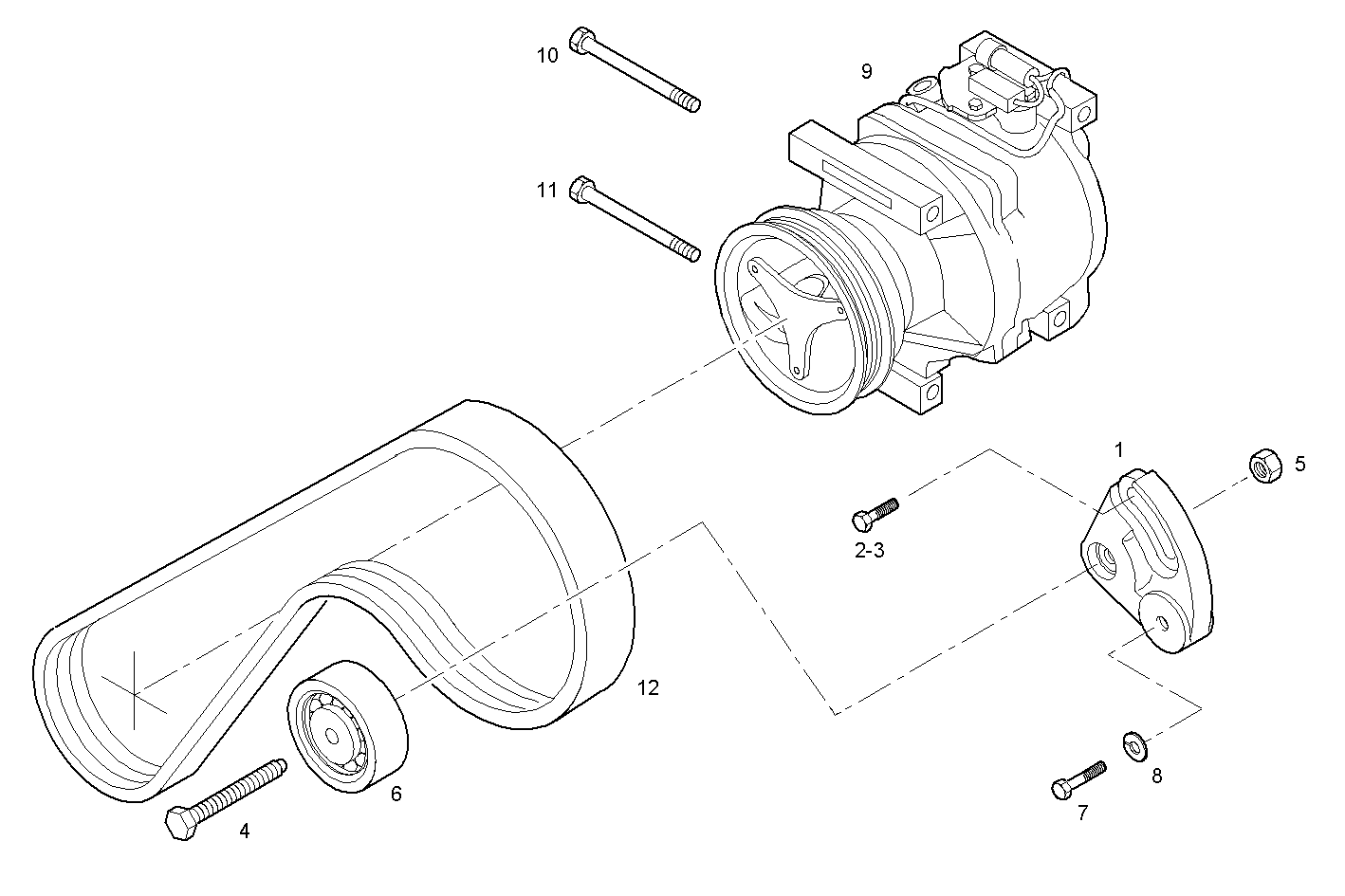

COMPRESSOR AIR CONDITIONING
8140SRC33.10A001 — 8140SRC33
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500327469 | BELT TENSIONER BELT TENSIONER | 1 | |
| 2 | 16586225 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 3 | 16673835 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 98460578 | ADJUSTING SCREW ADJUSTING SCREW | 1 | |
| 5 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 6 | 98429701 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 7 | 16690424 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 9 | 500313156 | AIR COND.COMPRESS. AIR COND.COMPRESS. | 1 | |
| 10 | 16598524 | SCREW SCREW | 3 | |
| 11 | 16598325 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 500329310 | V-BELT V-BELT | 1 |
