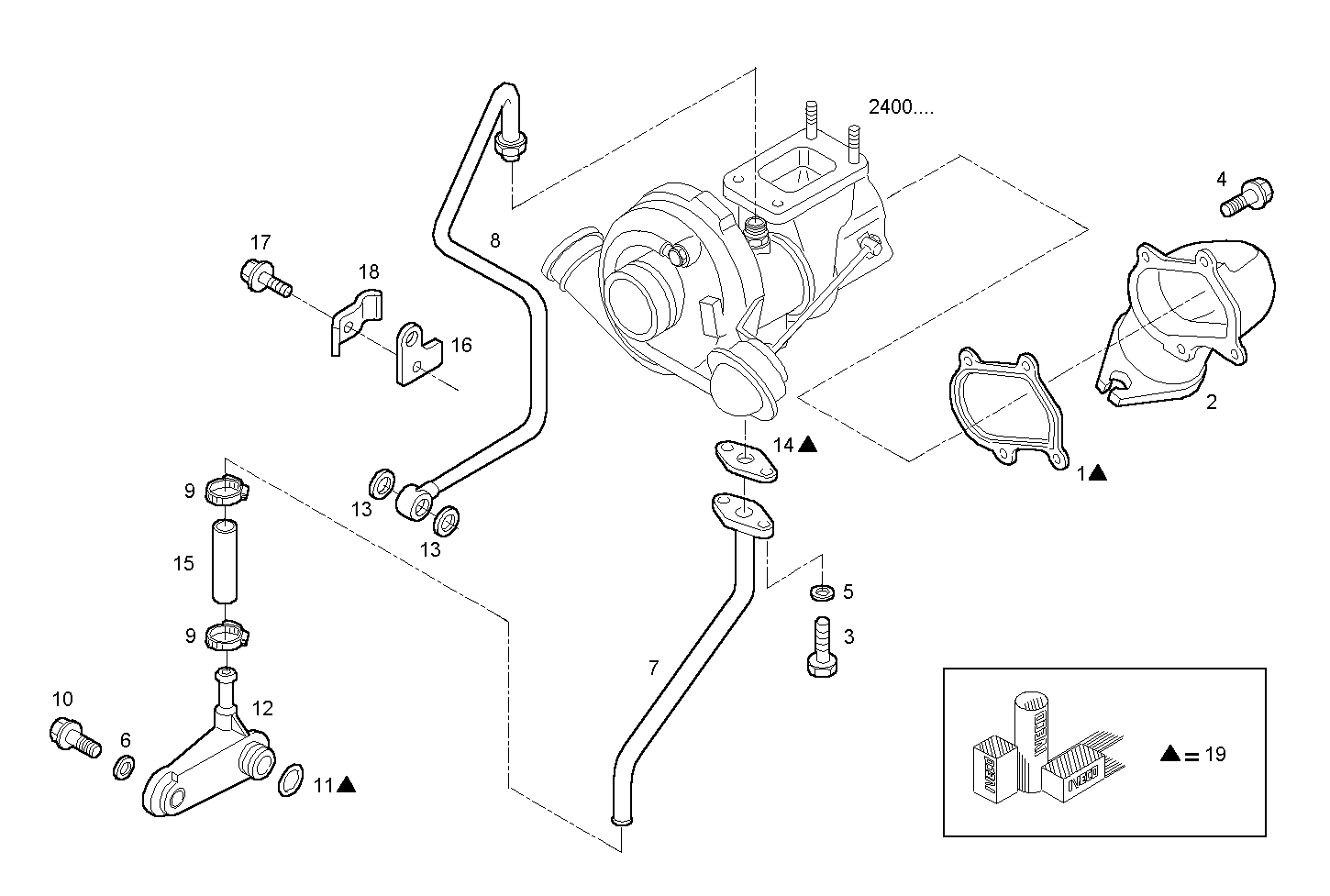

SUPERCHARGING LINES
8140SRC33.10A001 — 8140SRC33
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98484659 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 99462592 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 3 | 16585724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 16673834 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 17088474 | WASHER WASHER | 2 | |
| 6 | 17097124 | WASHER WASHER | 1 | |
| 7 | 500344909 | OIL LINE OIL LINE | 1 | |
| 8 | 99462609 | OIL LINE OIL LINE | 1 | |
| 9 | 98463346 | CLIP CLIP | 2 | |
| 10 | 16288424 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 14462881 | O-RING O-RING | 1 | |
| 12 | 98499352 | FLANGED SOCKET FLANGED SOCKET | 1 | |
| 13 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 14 | 500370706 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 500313648 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 16 | 500318425 | RETAINER RETAINER | 1 | |
| 17 | 16597924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 98487328 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 19 | 500366293 | KIT-SEAL.GASKETS KIT-SEAL.GASKETS | 1 |
