ACCESSORIES
8140SRC36.10A002 — 8140SRC36

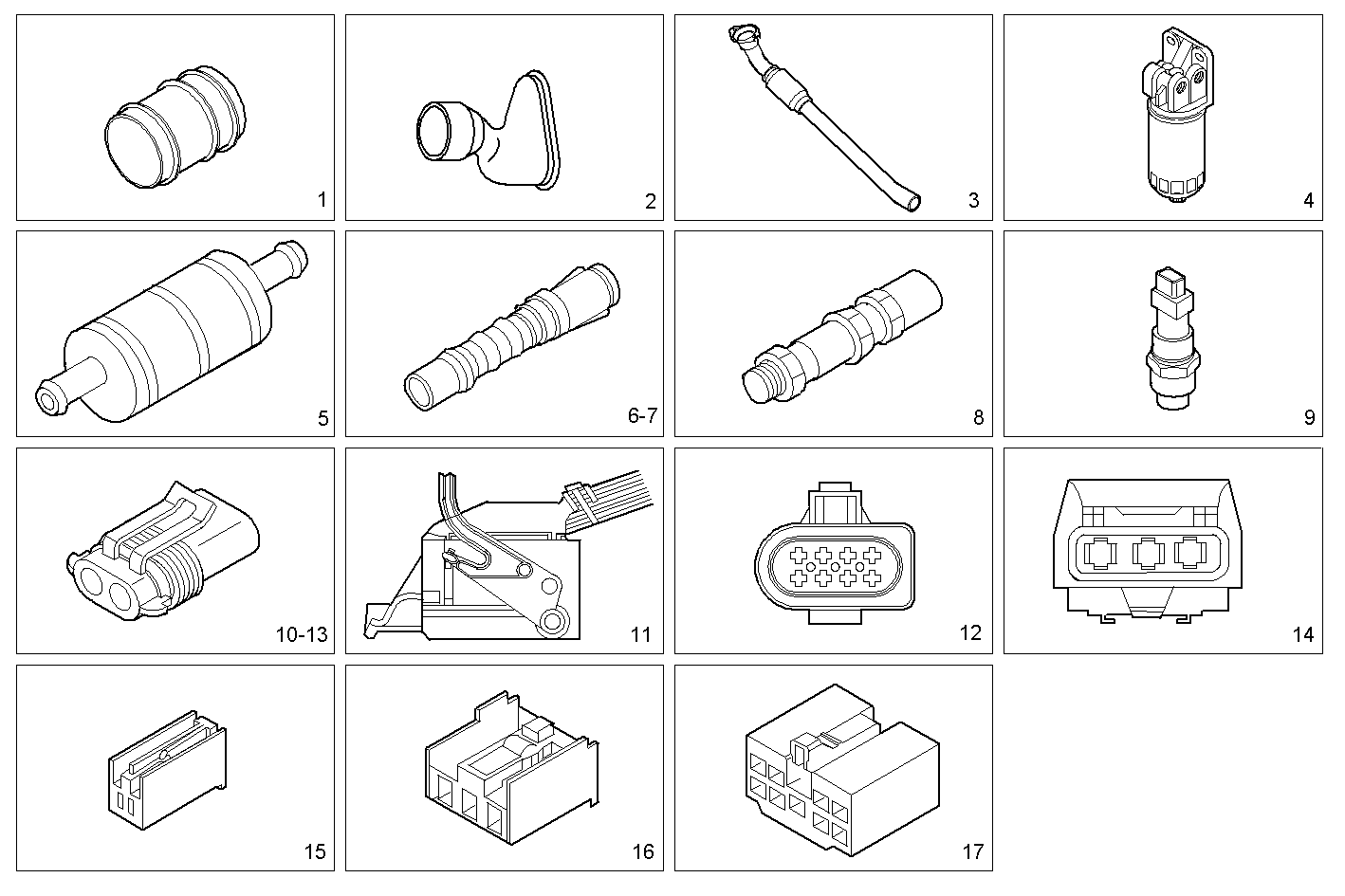

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99475940 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 2 | 500325384 | AIR INDUCT.FILTER AIR INDUCT.FILTER | 1 | |
| 3 | 504059011 | EXHAUST PIPE EXHAUST PIPE | 1 | |
| 4 | 504044712 | FUEL FILTER FUEL FILTER | 1 | |
| 5 | 500318246 | PREFILTER PREFILTER | 1 | |
| 6 | 500373710 | PIPE SOCKET PIPE SOCKET | 2 | |
| 7 | 500373711 | PIPE SOCKET PIPE SOCKET | 2 | |
| 8 | 500319244 | LIGHT STOP SWITCH LIGHT STOP SWITCH | 2 | |
| 9 | 500365771 | SWITCH SWITCH | 1 | |
| 10 | 8030573 | CONNECTION CONNECTION | 3 | |
| 11 | 8029081 | CONNECTION CONNECTION | 1 | |
| 12 | 8029082 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 13 | 8030572 | CONNECTION CONNECTION | 1 | |
| 14 | 8030575 | CONNECTION CONNECTION | 1 | |
| 15 | 8031429 | CONNECTION CONNECTION | 1 | |
| 16 | 8031430 | CONNECTION CONNECTION | 2 | |
| 17 | 8031431 | WIRE CONNECTOR WIRE CONNECTOR | 1 |
