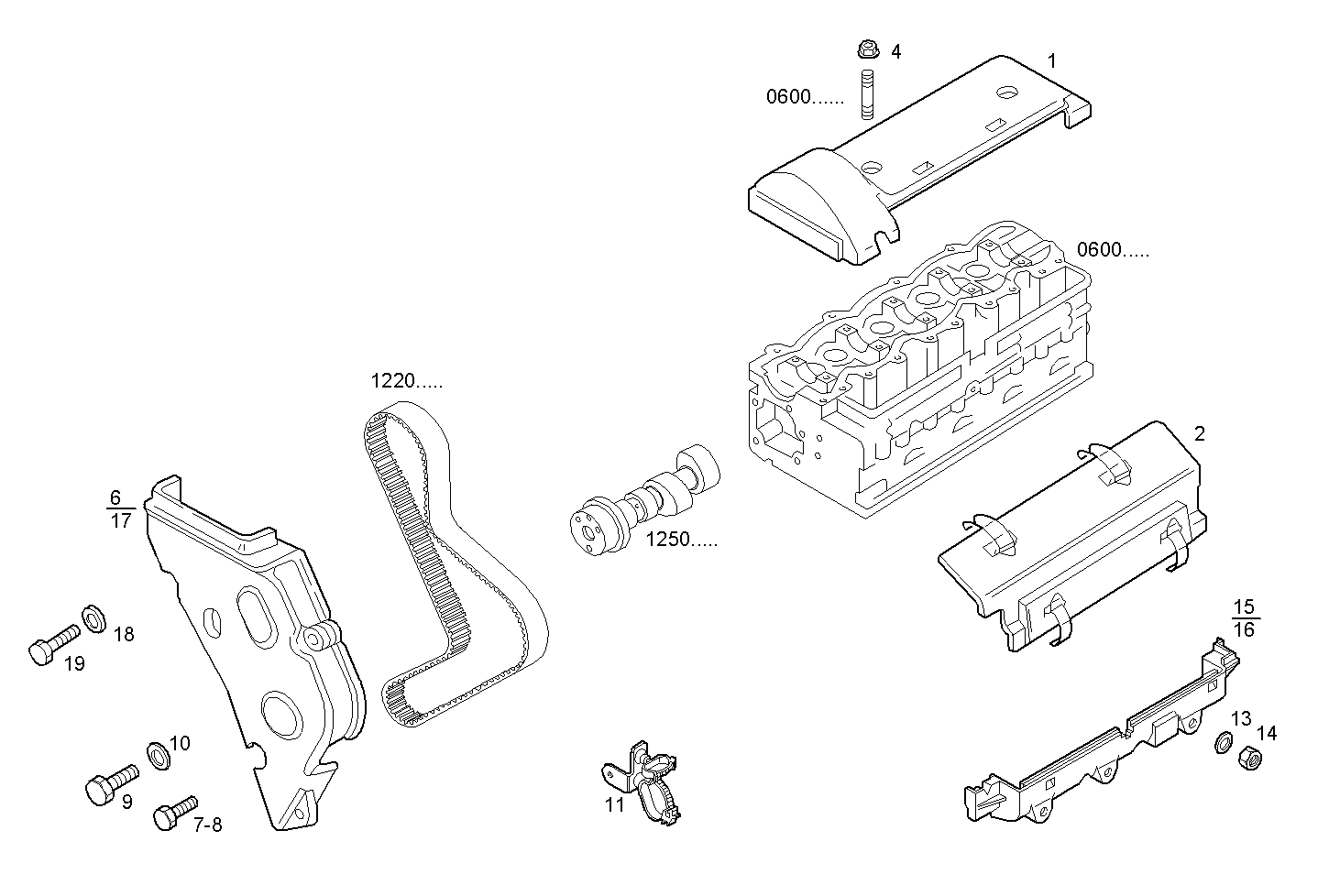

ASSY SOUND PROOFING
8140SRC36.10A006 — 8140SRC36
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99471017 | CYL. HEAD COVER CYL. HEAD COVER | 1 | |
| 2 | 99471006 | SIDE COVER SIDE COVER | 1 | |
| 4 | 98439382 | NUT NUT | 2 | |
| 6 | 500341406 | COVER COVER | 1 | |
| 7 | 16597224 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 16585924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 99485223 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 12647724 | WASHER WASHER | 1 | |
| 11 | 500343591 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 13 | 13550301 | WASHER WASHER | 3 | |
| 14 | 17044731 | HEXAGON NUT HEXAGON NUT | 3 | |
| 15 | 99463363 | SIDE COVER SIDE COVER | 1 | |
| 16 | 500398047 | COVER COVER | 1 | |
| 17 | 504022580 | COVER COVER | 1 | |
| 18 | 12646624 | WASHER WASHER | 1 | |
| 19 | 16296924 | HEXAGON BOLT HEXAGON BOLT | 1 |
