ACCESSORIES

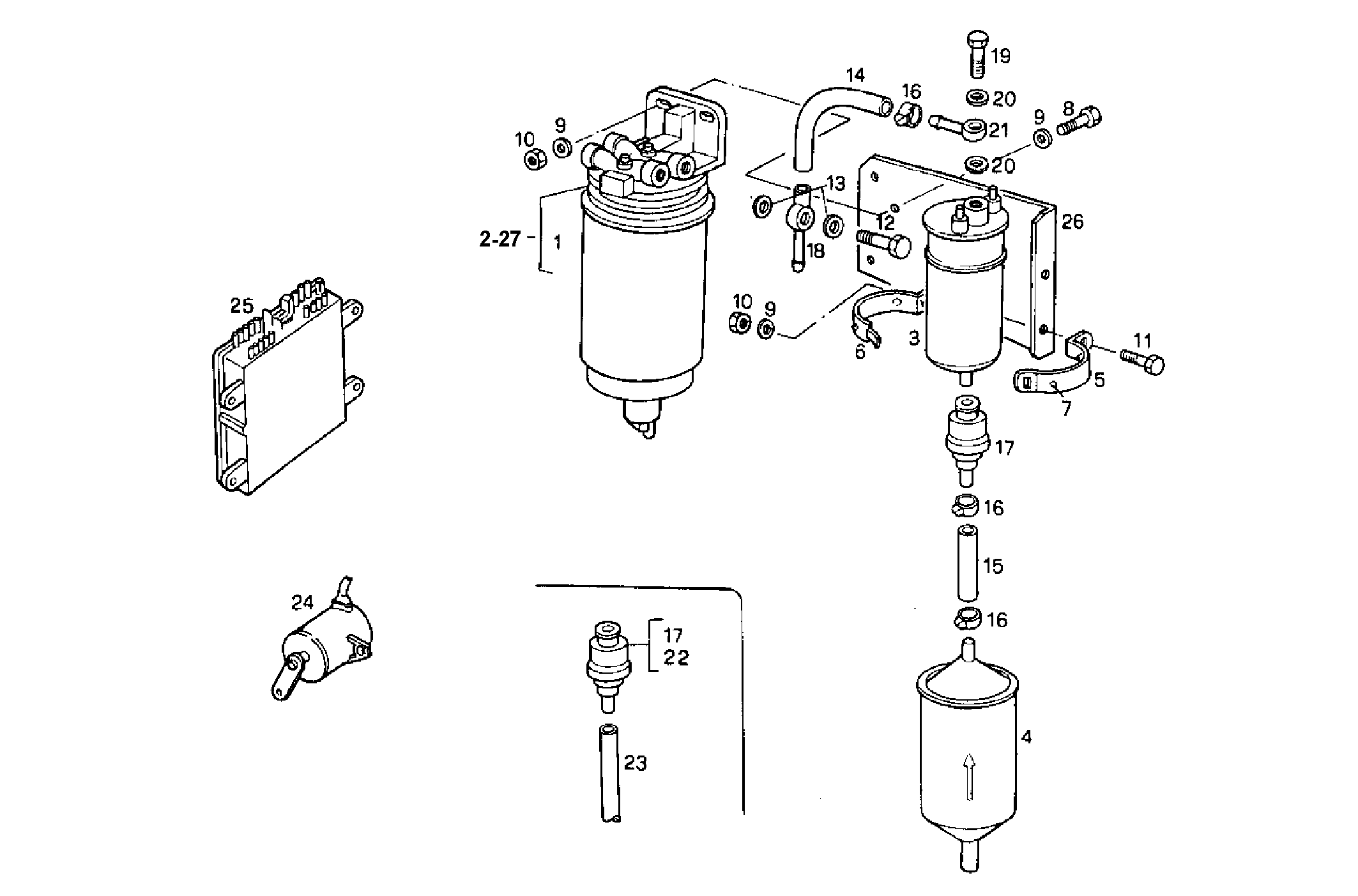

8140SRM15.10 — 8140SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 1908556 | FUEL FILTER ELEM. FUEL FILTER ELEM. | 1 | |
| 2 | 500327431 | FUEL FILTER FUEL FILTER | 1 | |
| 3 | 500366053 | PUMP PUMP | 1 | |
| 4 | 8030740 | PREFILTER PREFILTER | 1 | |
| 5 | 8113295 | CLAMP CLAMP | 2 | |
| 6 | 8113296 | CLAMP CLAMP | 2 | |
| 7 | 1366290 | RUBBER PAD RUBBER PAD | 8 | |
| 8 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 17038121 | HEXAGON NUT HEXAGON NUT | 2 | |
| 11 | 16607624 | SCREW SCREW | 2 | |
| 12 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 13 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 14 | 500379942 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 15 | 500378749 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 16 | 18088293 | CLIP CLIP | 4 | |
| 17 | 500373710 | PIPE SOCKET PIPE SOCKET | 1 | |
| 18 | 98413896 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 4864079 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 20 | 4858606 | GASKET GASKET | 2 | |
| 21 | 98417522 | PIPE SOCKET PIPE SOCKET | 1 | |
| 22 | 500373711 | PIPE SOCKET PIPE SOCKET | 1 | |
| 23 | 19056687 | RUBBER HOSE RUBBER HOSE | 1 | |
| 24 | 500388702 | TRANSMITTER TRANSMITTER | 1 | |
| 25 | 500332361 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 | |
| 26 | 8030877 | RETAINER RETAINER | 1 | |
| 27 | 504044712 | FUEL FILTER FUEL FILTER | 1 |
