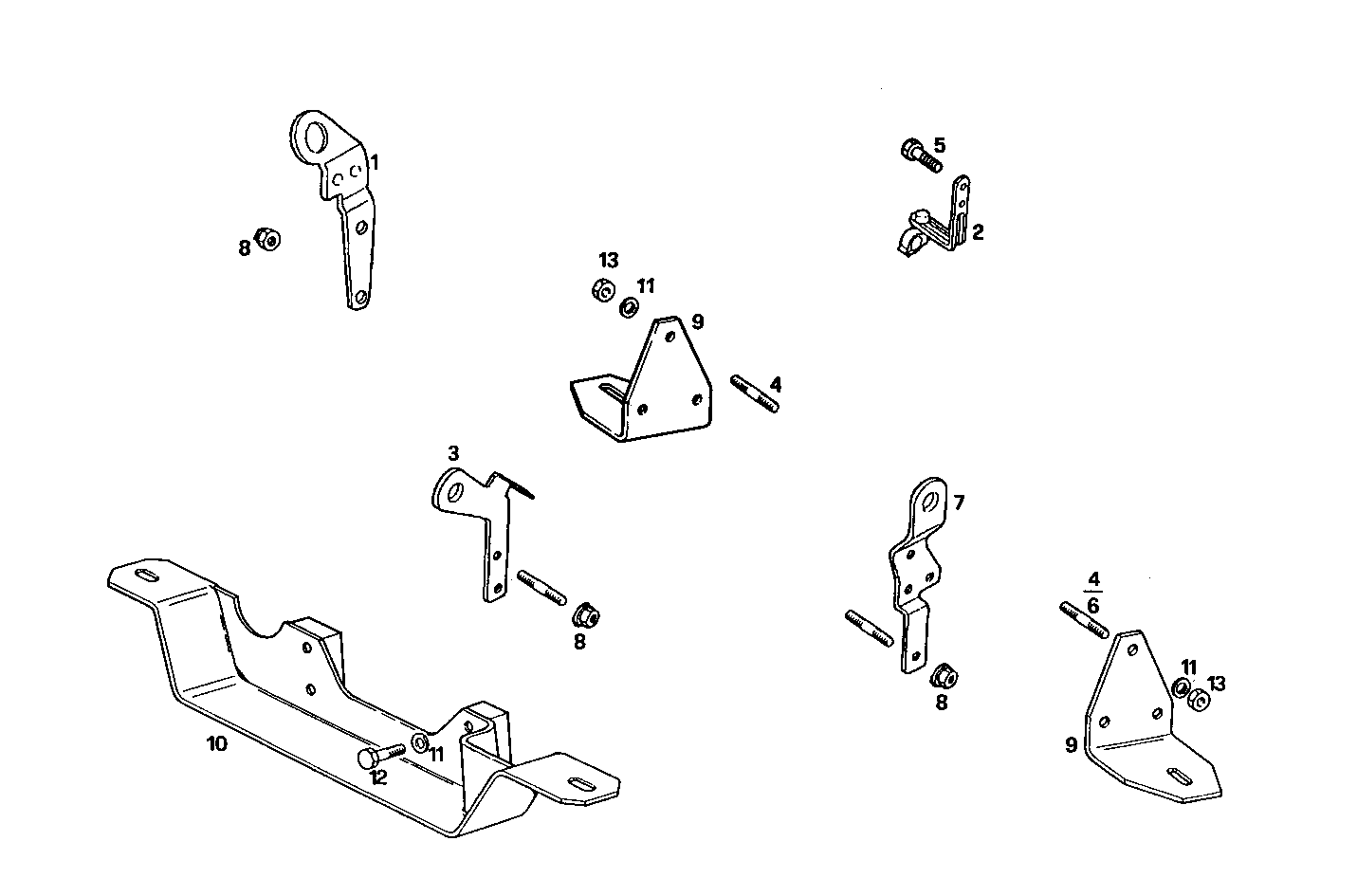

ENGINE SUSPENSION
8140SRM15.10 — 8140SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500351024 | TOWINGCLEVIS FRONT TOWINGCLEVIS FRONT | 1 | |
| 2 | 500336300 | RETAINER RETAINER | 1 | |
| 3 | 500348840 | TOWINGCLEVIS FRONT TOWINGCLEVIS FRONT | 1 | |
| 4 | 13546321 | STUD STUD | 4 | |
| 5 | 16596924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 13546521 | STUD STUD | 2 | |
| 7 | 99463366 | TOWINGCLEVIS FRONT TOWINGCLEVIS FRONT | 1 | |
| 8 | 17044731 | HEXAGON NUT HEXAGON NUT | 6 | |
| 9 | 4919262 | SUPPORT SUPPORT | 2 | |
| 10 | 8018348 | SUPPORT SUPPORT | 1 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 10 | |
| 12 | 11288021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 13 | 17038221 | HEXAGON NUT HEXAGON NUT | 6 |
