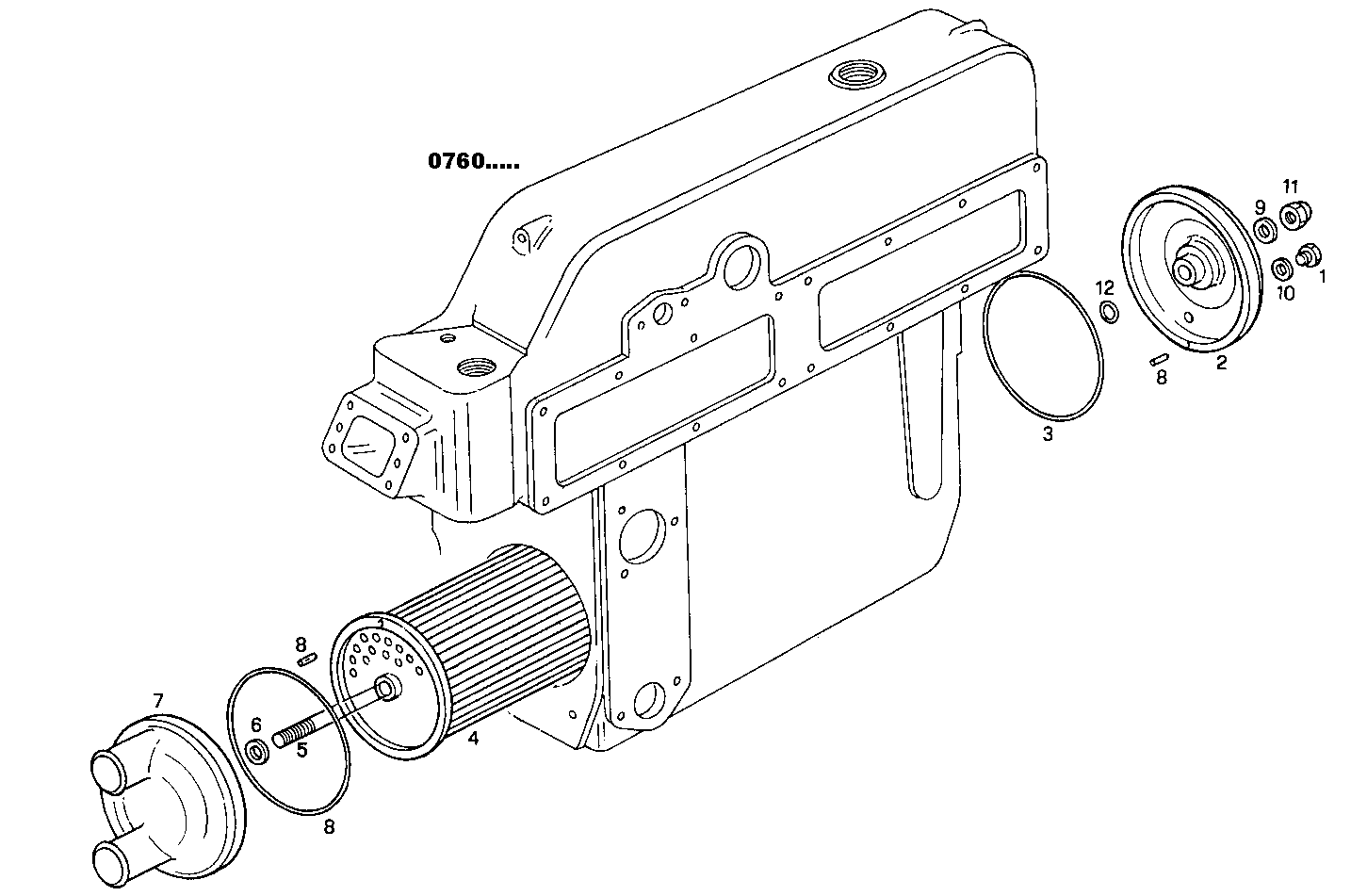

FRESH WATER - SEA WATER HEAT EXCHANGER
8140SRM15.10 — 8140SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4918907 | NUT NUT | 1 | |
| 2 | 4927723 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 3 | 4918846 | O-RING O-RING | 2 | |
| 4 | 4927719 | TUBE STACK TUBE STACK | 1 | |
| 5 | 4919239 | TIE ROD TIE ROD | 1 | |
| 6 | 4927193 | GASKET GASKET | 1 | |
| 7 | 4934328 | COVER COVER | 1 | |
| 8 | 17234710 | PIN PIN | 2 | |
| 9 | 4858606 | GASKET GASKET | 1 | |
| 10 | 4858607 | WASHER WASHER | 1 | |
| 11 | 11903140 | PLUG PLUG | 1 | |
| 12 | 17281681 | O-RING O-RING | 1 |
