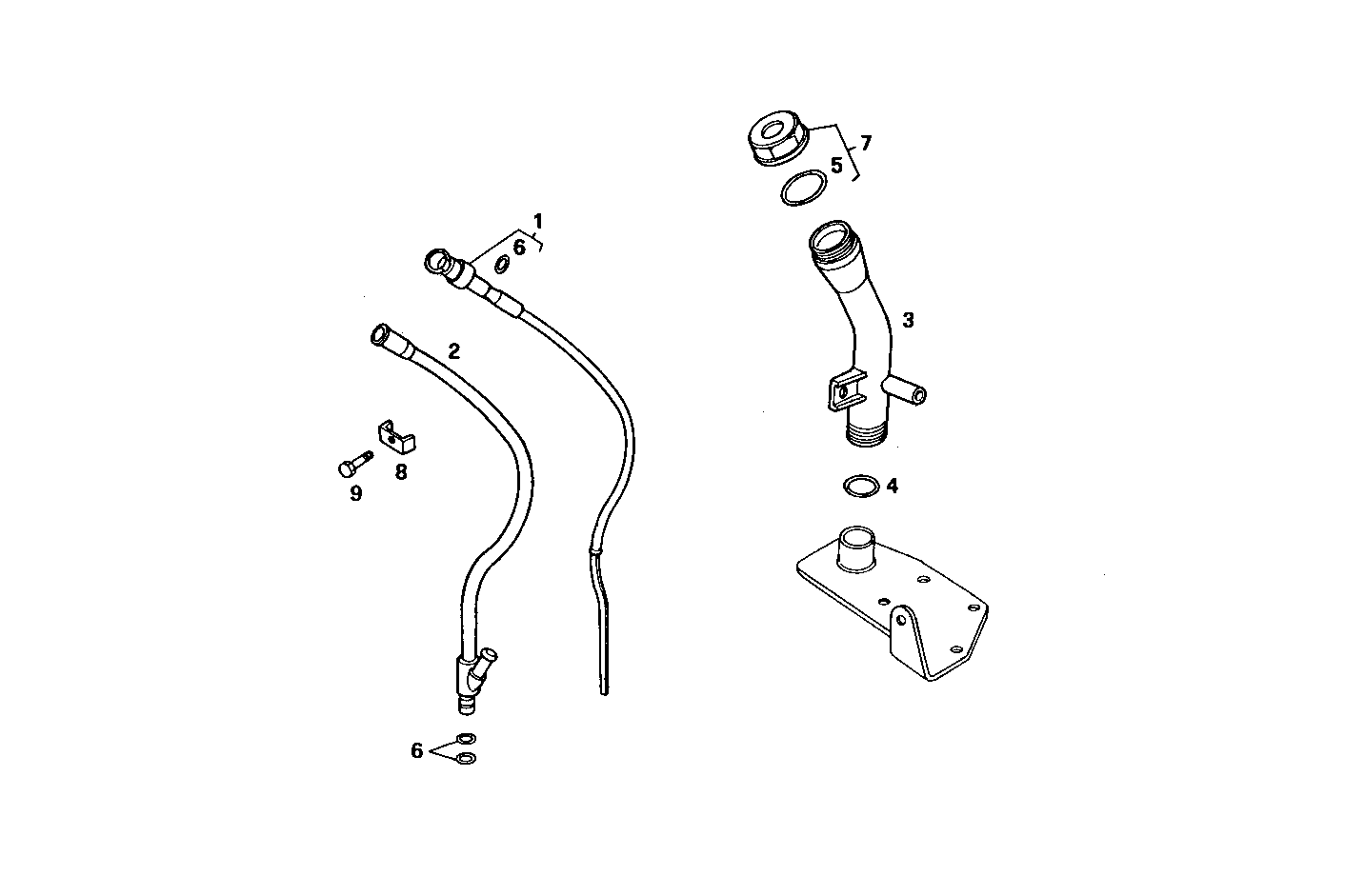

OIL DIPSTICK
8140SRM15.10 — 8140SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500352874 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 2 | 8028733 | ROD GUIDE ROD GUIDE | 1 | |
| 3 | 99470999 | OIL FILLER PIPE OIL FILLER PIPE | 1 | |
| 4 | 17282581 | O-RING O-RING | 2 | |
| 5 | 17295480 | O-RING O-RING | 1 | |
| 6 | 17277981 | O-RING O-RING | 3 | |
| 7 | 500301568 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 8 | 4716870 | RETAINER RETAINER | 1 | |
| 9 | 16673734 | HEXAGON BOLT HEXAGON BOLT | 1 |
