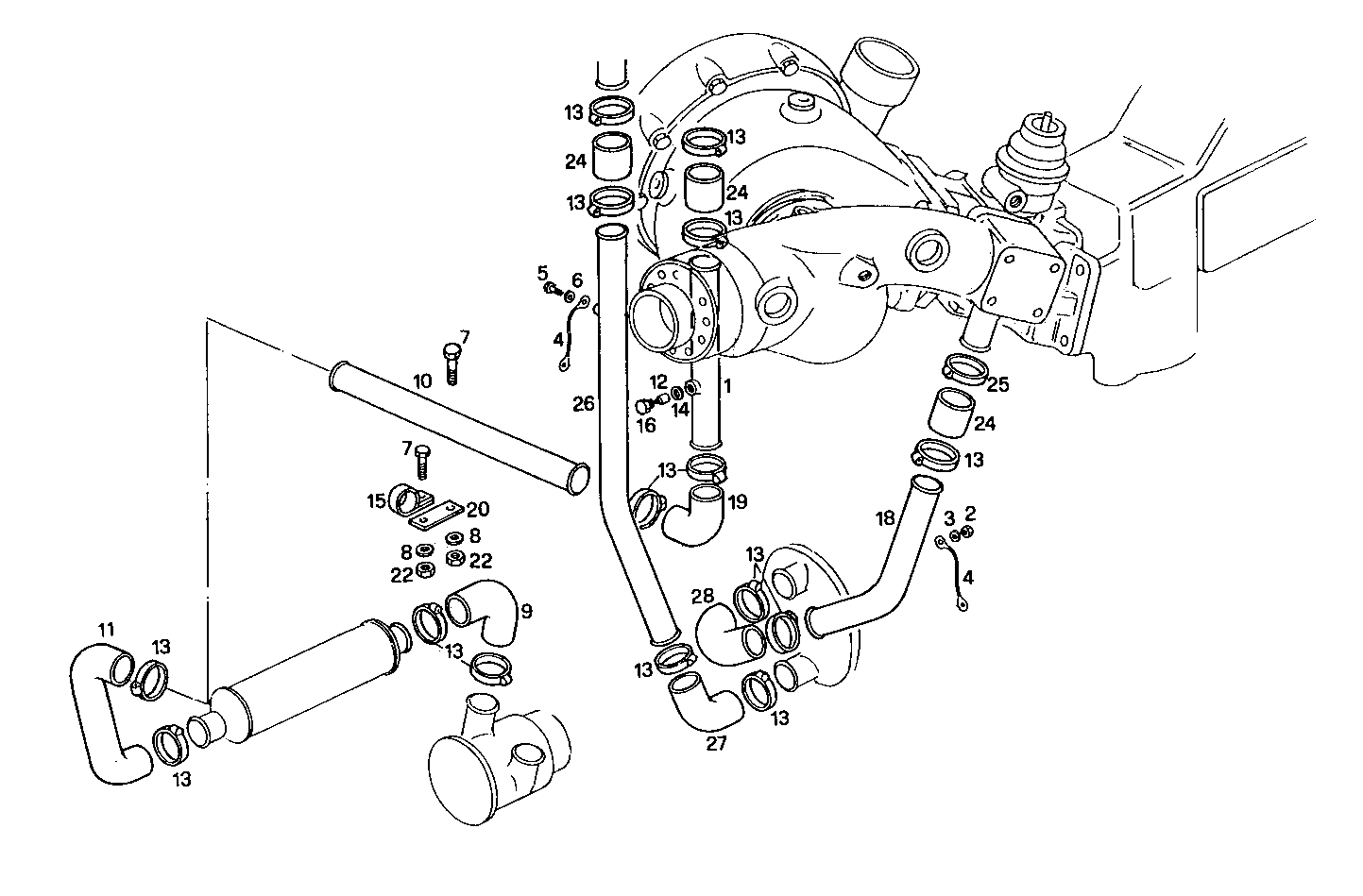

SEA WATER LINES
8140SRM15.10 — 8140SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8108610 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 3 | 17088474 | WASHER WASHER | 1 | |
| 4 | 8113786 | ENGINE HARNESS ENGINE HARNESS | 2 | |
| 5 | 16043021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 7 | 16607624 | SCREW SCREW | 2 | |
| 8 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 9 | 8110497 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 10 | 8029879 | WATER PIPE WATER PIPE | 1 | |
| 11 | 8028785 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 12 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 13 | 17764793 | CLIP CLIP | 15 | |
| 14 | 4858610 | WASHER WASHER | 1 | |
| 15 | 8103077 | CLIP CLIP | 2 | |
| 16 | 4917793 | PLUG PLUG | 1 | |
| 18 | 8024885 | WATER PIPE WATER PIPE | 1 | |
| 19 | 8016662 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 20 | 8030851 | RETAINER RETAINER | 1 | |
| 22 | 17038121 | HEXAGON NUT HEXAGON NUT | 2 | |
| 24 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 3 | |
| 25 | 17764893 | CLIP CLIP | 1 | |
| 26 | 8013004 | WATER PIPE WATER PIPE | 1 | |
| 27 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 28 | 4951429 | WATER HOSE WATER HOSE | 1 |
