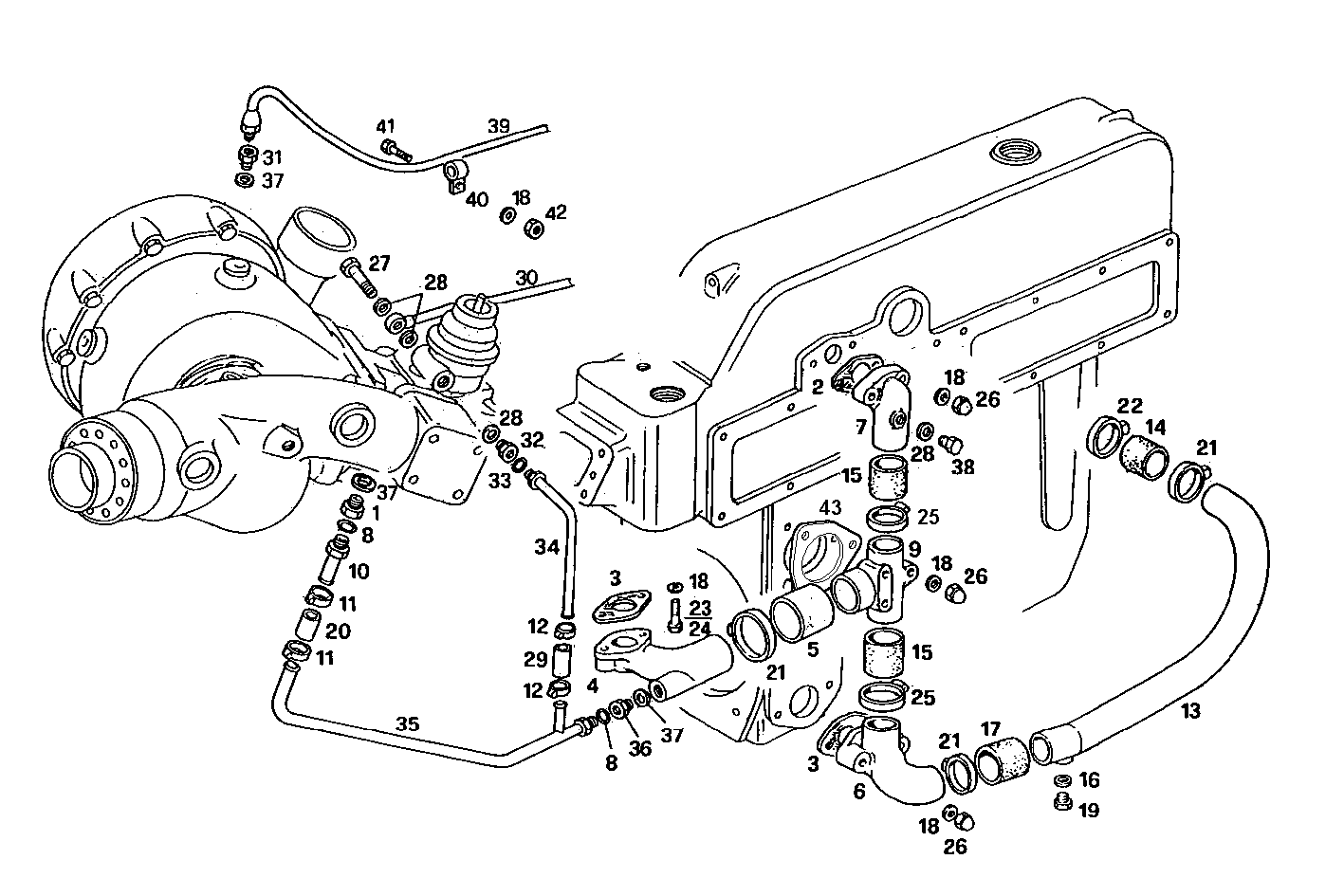

WATER LINES

8140SRM15.10 — 8140SRM15

Parts List

#	Part No	Name / Description	Qty
1	98443290	PIPE SOCKET PIPE SOCKET	1
2	98401052	FLAT ENGINE GKT FLAT ENGINE GKT	1
3	8008755	FLAT ENGINE GKT FLAT ENGINE GKT	2
4	8024907	WATER PIPE WATER PIPE	1
5	17744687	FILTER HOSE FILTER HOSE	1
6	4935519	WATER PIPE WATER PIPE	1
7	4935517	WATER PIPE WATER PIPE	1
8	8024650	O-RING O-RING	2
9	4935516	THERMOSTAT BODY THERMOSTAT BODY	1
10	8028804	PIPE SOCKET PIPE SOCKET	1
11	17764593	CLIP CLIP	2
12	17764393	CLIP CLIP	2
13	4935527	WATER PIPE WATER PIPE	1
14	8813238	WATER HOSE WATER HOSE	1
15	17740187	RUBBER SLEEVE RUBBER SLEEVE	2
16	4858606	GASKET GASKET	1
17	17743687	RUBBER SLEEVE RUBBER SLEEVE	1
18	17089474	SPRING WASHER SPRING WASHER	10
19	11903111	LOCK PLUG LOCK PLUG	1
20	98434883	WATER HOSE WATER HOSE	1
21	17764993	CLIP CLIP	5
22	17764793	CLIP CLIP	1
23	16606324	HEXAGON BOLT HEXAGON BOLT	1
24	16606024	SCREW SCREW	1
25	17764693	CLIP CLIP	4
26	17787321	NUT NUT	7
27	4864083	SCREW CONNECTOR SCREW CONNECTOR	2
28	4858608	SEAL GASKET SEAL GASKET	7
29	4931996	WATER HOSE WATER HOSE	1
30	8024890	WATER PIPE WATER PIPE	1
31	98445134	THREADED UNION THREADED UNION	1
32	16500214	THREADED UNION THREADED UNION	1
33	8024646	O-RING O-RING	1
34	8024891	WATER PIPE WATER PIPE	1
35	8024892	WATER PIPE WATER PIPE	1
36	16500511	THREADED UNION THREADED UNION	1
37	10263460	WASHER WASHER	2
38	16992340	THREADED PLUG THREADED PLUG	2
39	8030539	WATER PIPE WATER PIPE	1
40	17316190	PIPE CLIP PIPE CLIP	1
41	16605424	SCREW SCREW	1
42	17037931	HEXAGON NUT HEXAGON NUT	1
43	98420754	FLAT ENGINE GKT FLAT ENGINE GKT	1
