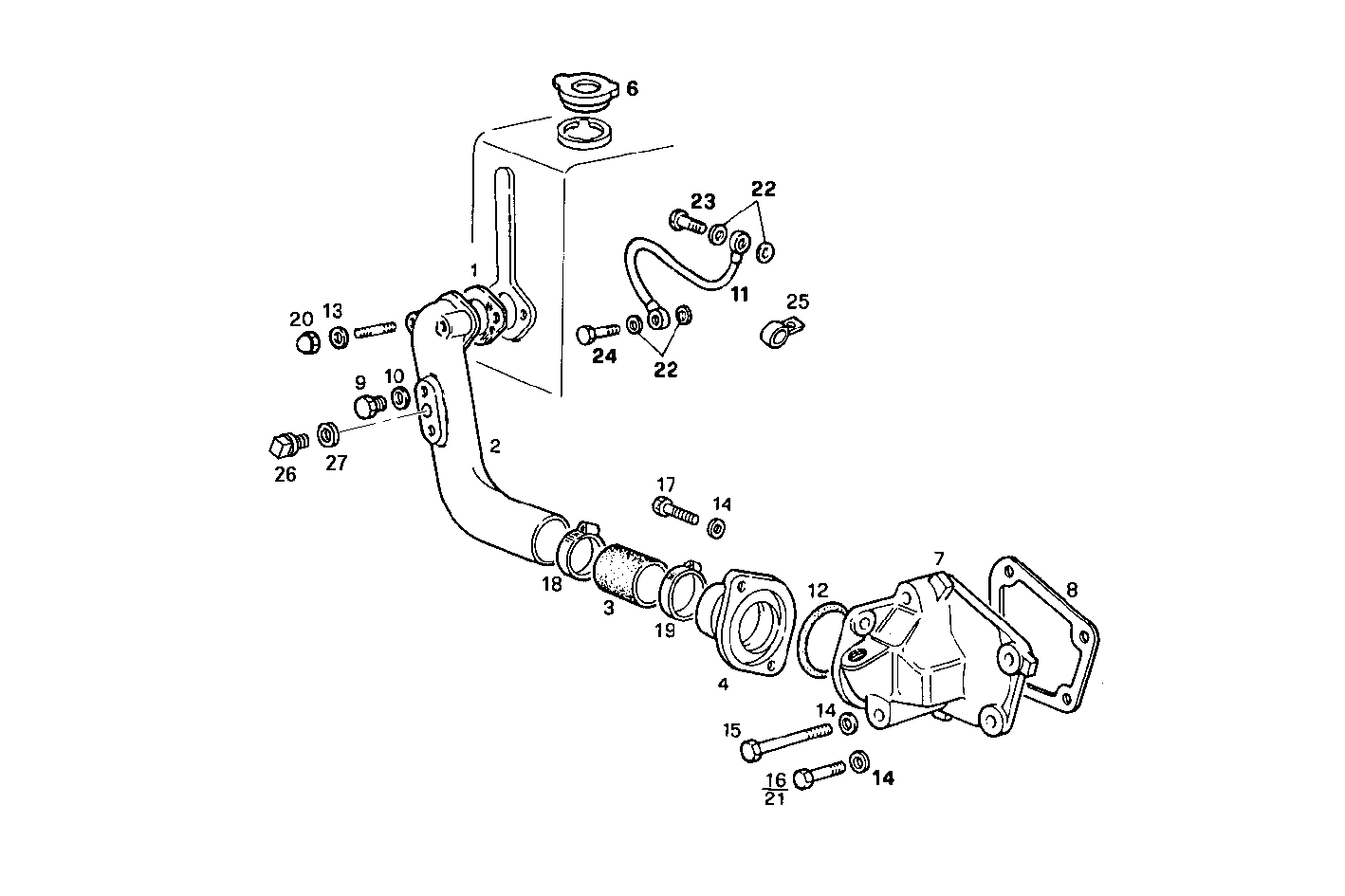

WATER LINES
8140SRM15.10 — 8140SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008755 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 2 | 4935520 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8813238 | WATER HOSE WATER HOSE | 1 | |
| 4 | 7301254 | COVER COVER | 1 | |
| 6 | 4935488 | RADIATOR PLUG RADIATOR PLUG | 1 | |
| 7 | 8024906 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 8 | 98421297 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 4858609 | WASHER WASHER | 1 | |
| 11 | 8008744 | WATER PIPE WATER PIPE | 1 | |
| 12 | 14455281 | O-RING O-RING | 1 | |
| 13 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 14 | 11193874 | WASHER WASHER | 6 | |
| 15 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 16605724 | SCREW SCREW | 1 | |
| 17 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 17764793 | CLIP CLIP | 1 | |
| 19 | 17764993 | CLIP CLIP | 1 | |
| 20 | 17787321 | NUT NUT | 2 | |
| 21 | 16606424 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 22 | 4858606 | GASKET GASKET | 4 | |
| 23 | 8015164 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 24 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 25 | 4929652 | RETAINER RETAINER | 1 | |
| 26 | 99455420 | TEMP. TRANSMITTER TEMP. TRANSMITTER | 1 | |
| 27 | 10298460 | SEAL GASKET SEAL GASKET | 1 |
