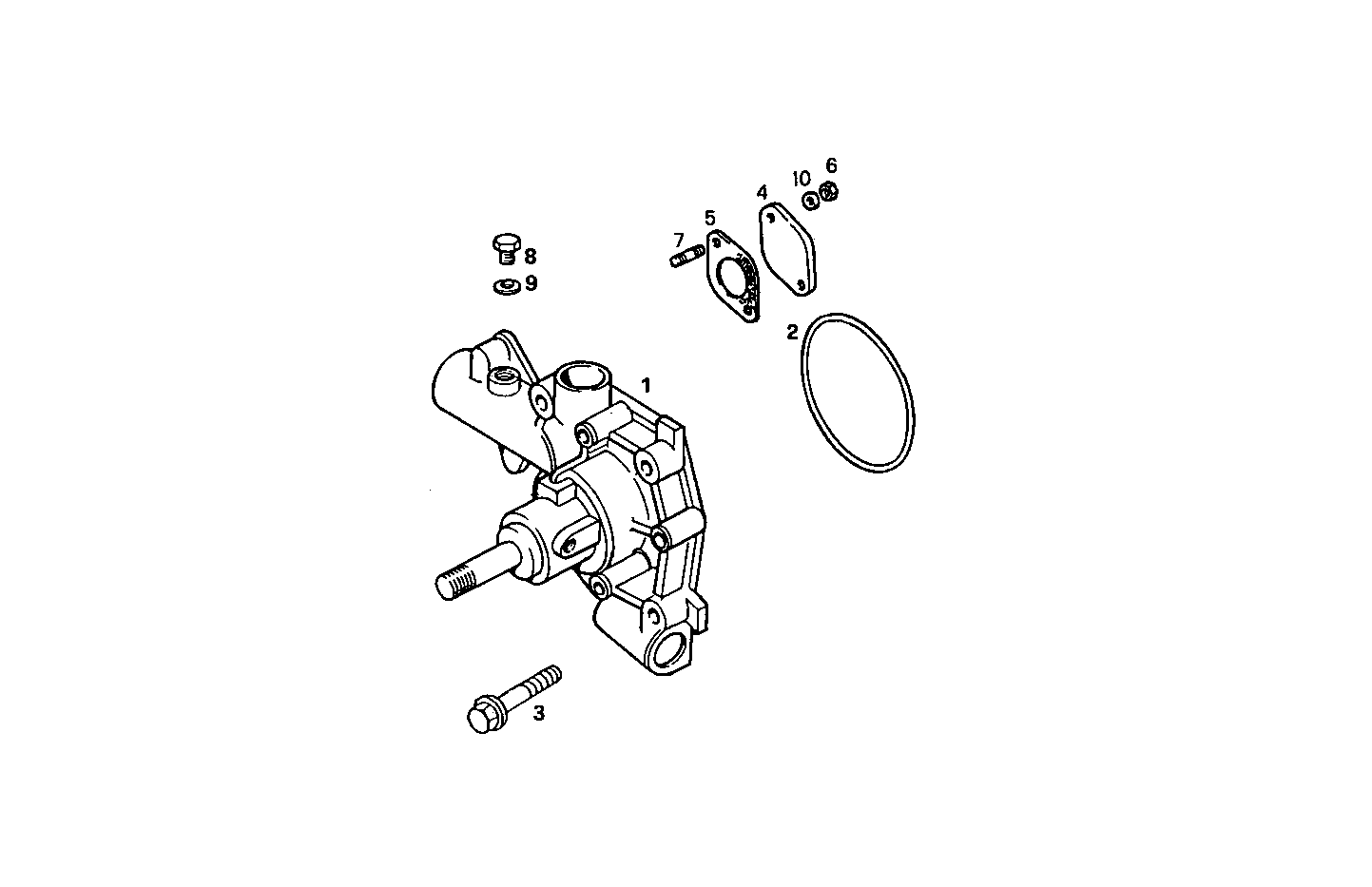

WATER PUMP
8140SRM15.10 — 8140SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8024908 | WATER PUMP WATER PUMP | 1 | |
| 2 | 17291281 | O-RING O-RING | 1 | |
| 3 | 98494125 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 4 | 4934275 | COVER COVER | 1 | |
| 5 | 98430478 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 7 | 13543524 | STUD STUD | 2 | |
| 8 | 10300611 | LOCK PLUG LOCK PLUG | 1 | |
| 9 | 10280060 | WASHER WASHER | 1 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 2 |
