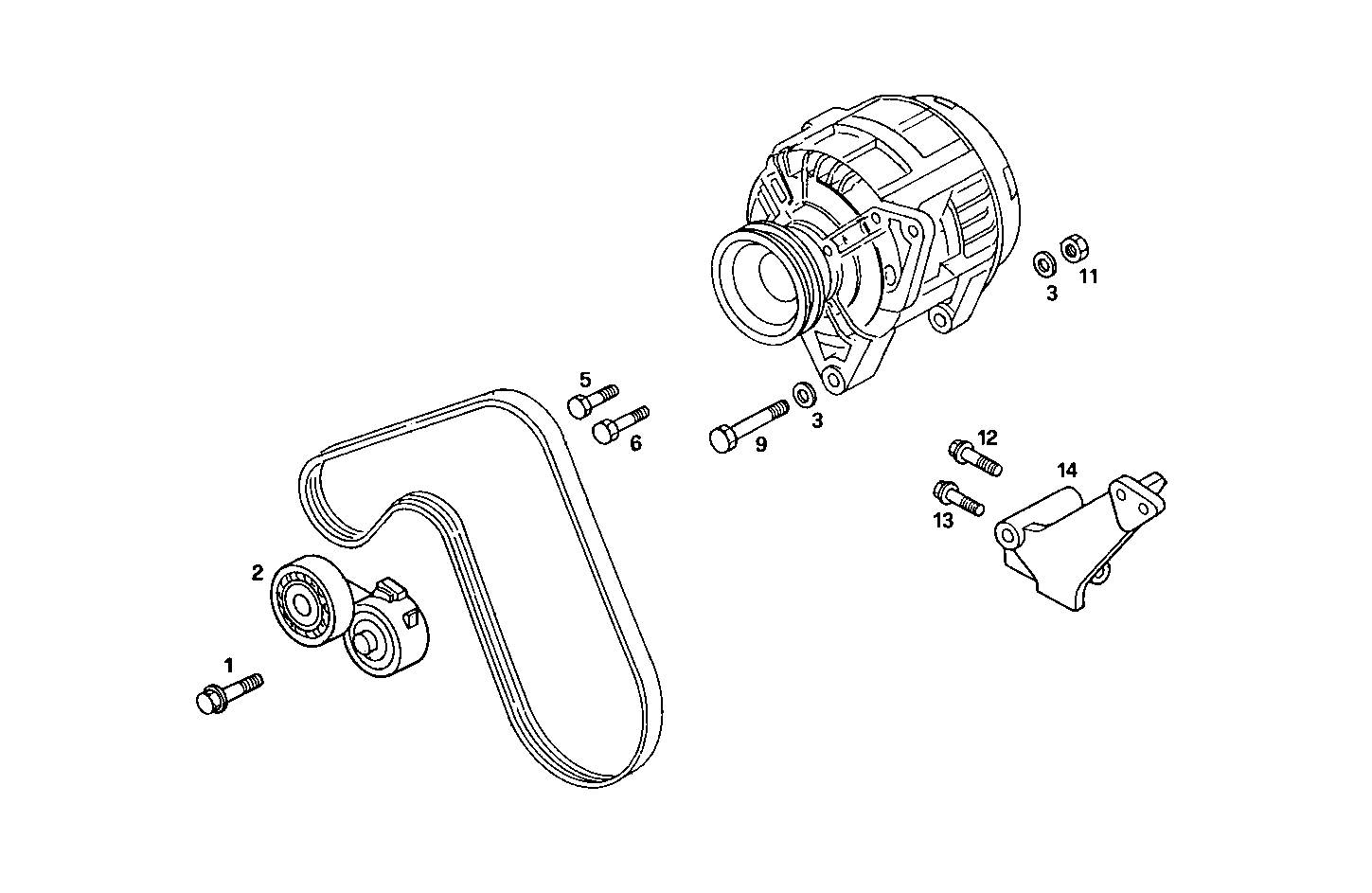

MOUNT
8140SRM15.11 — 8140SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16592224 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 2 | 500332622 | BELT TENSIONER BELT TENSIONER | 1 | |
| 3 | 17095124 | WASHER WASHER | 2 | |
| 5 | 16289024 | SCREW SCREW | 1 | |
| 6 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 504011448 | RETAINER RETAINER | 1 | |
| 9 | 15972421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 14059421 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 16289524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 16288734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 500372423 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 |
