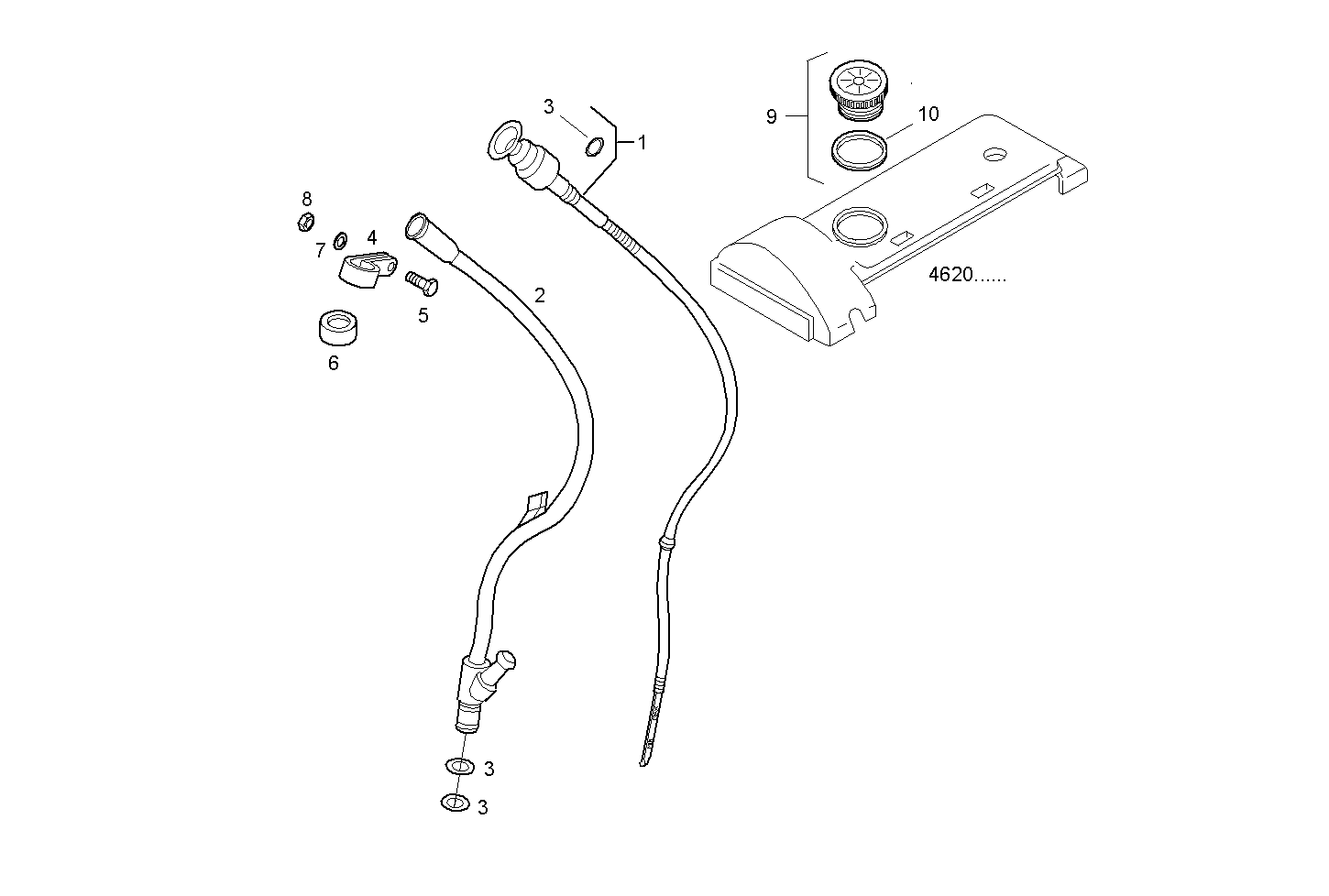

OIL DIPSTICK
8140SRM15.11 — 8140SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8030662 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 2 | 8030706 | ROD GUIDE ROD GUIDE | 1 | |
| 3 | 17277981 | O-RING O-RING | 3 | |
| 4 | 4755963 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 5 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 4755964 | RUBBER PAD RUBBER PAD | 1 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 8 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 98442027 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 10 | 98412146 | GASKET GASKET | 1 |
