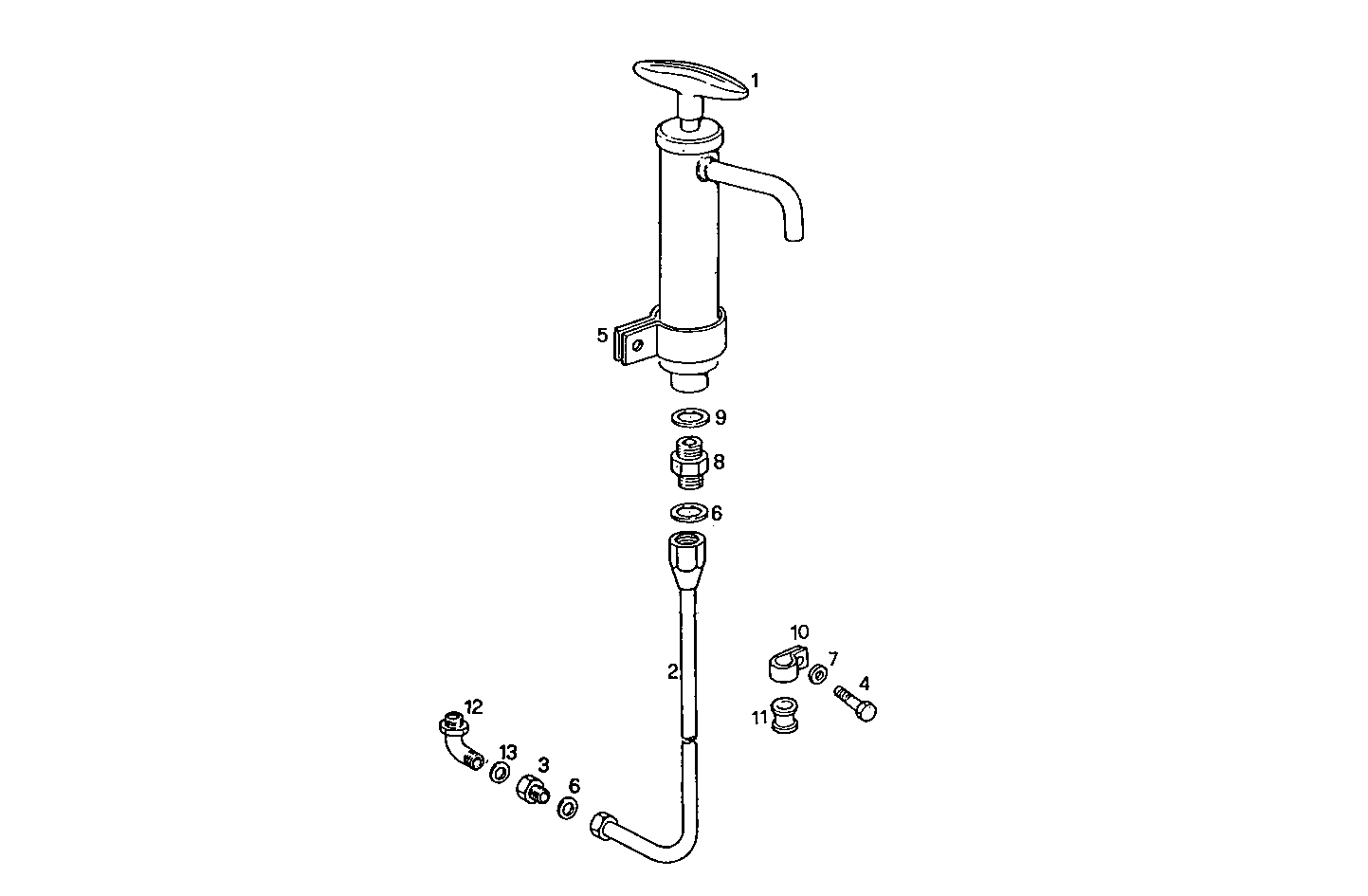

OIL OUTLET PUMP
8140SRM15.11 — 8140SRM15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019921 | HAND PUMP HAND PUMP | 1 | |
| 2 | 8030661 | OIL LINE OIL LINE | 1 | |
| 3 | 4931603 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 4928851 | CLIP CLIP | 2 | |
| 6 | 8024647 | GASKET GASKET | 2 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 8 | 16500311 | PIPE SOCKET PIPE SOCKET | 1 | |
| 9 | 4858609 | WASHER WASHER | 1 | |
| 10 | 8016484 | CLIP CLIP | 1 | |
| 11 | 4755964 | RUBBER PAD RUBBER PAD | 1 | |
| 12 | 11219711 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 13 | 10263460 | WASHER WASHER | 1 |
