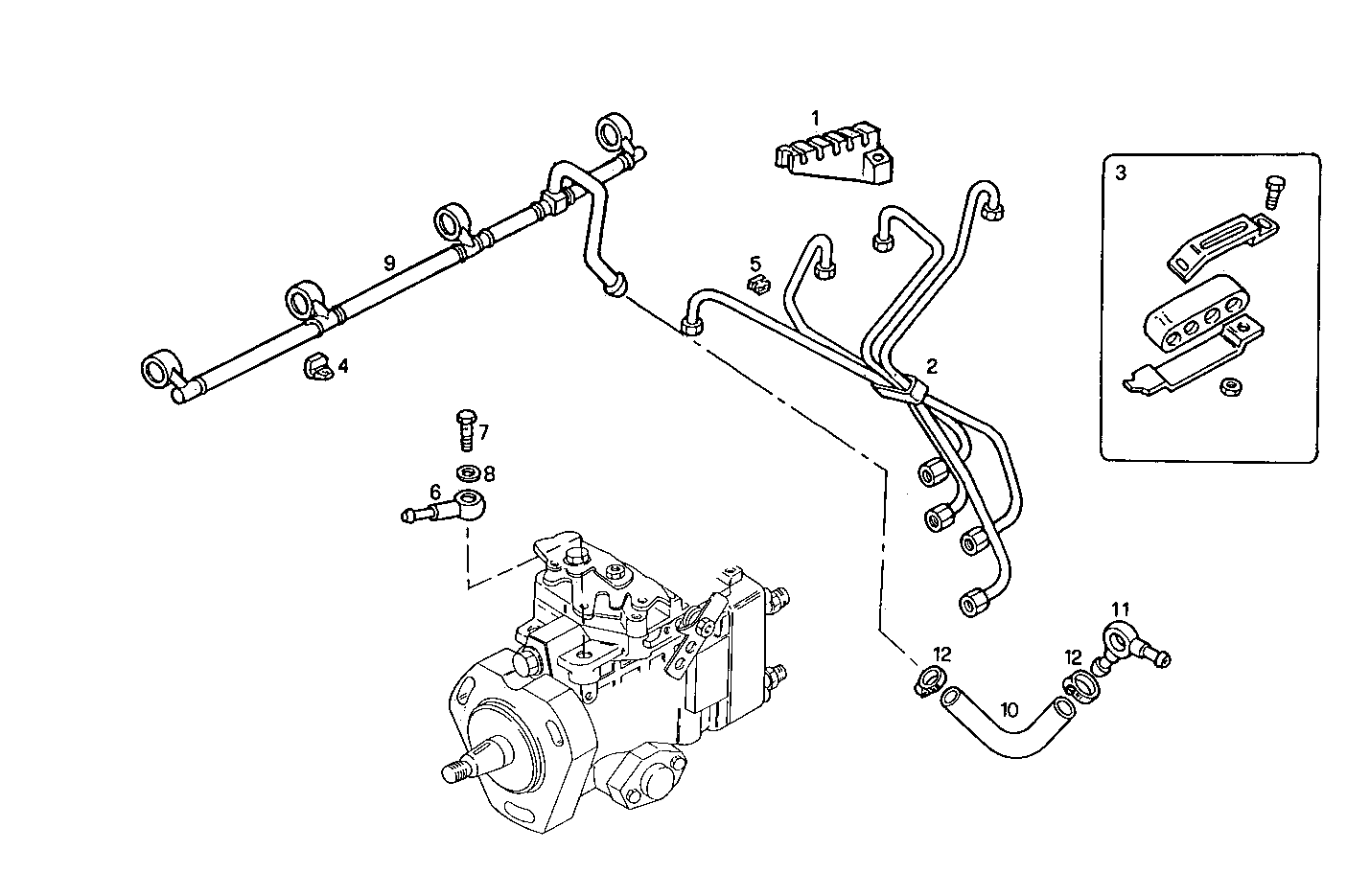

INJECTION PIPES
8141.67.2000 — 8141.67
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4714424 | RUBBER PAD RUBBER PAD | 1 | |
| 2 | 98416942 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 3 | 99431258 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 4 | 4734007 | RETAINER RETAINER | 1 | |
| 5 | 4734008 | RETAINER RETAINER | 1 | |
| 6 | 98434018 | THREADED UNION THREADED UNION | 1 | |
| 7 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 8 | 10296160 | SEAL GASKET SEAL GASKET | 4 | |
| 9 | 4720744 | FUEL LINE FUEL LINE | 1 | |
| 10 | 17731187 | FUEL LINE FUEL LINE | 1 | |
| 11 | 98433829 | BANJO COUPLING BANJO COUPLING | 1 | |
| 12 | 17764292 | HOSE CLIP HOSE CLIP | 2 |
