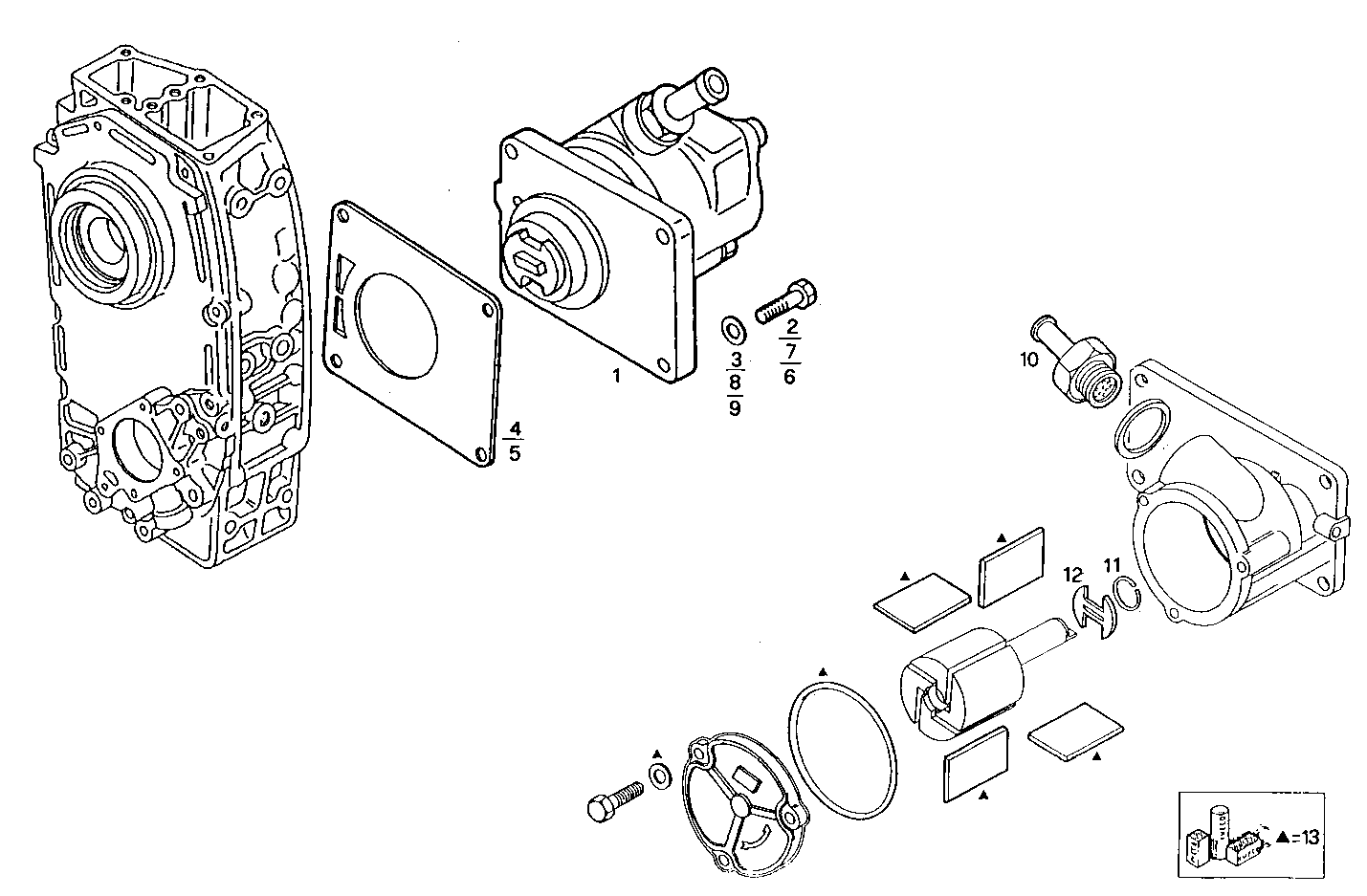

VACUUM PUMP
8141.67.2000 — 8141.67
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99441978 | VACUUM PUMP VACUUM PUMP | 1 | |
| 2 | 10903821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 3 | 4736331 | WASHER WASHER | 1 | |
| 4 | 98421272 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 5 | 98462874 | GASKET GASKET | 1 | |
| 6 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 7 | 10902621 | SCREW SCREW | 3 | |
| 8 | 11194074 | WASHER WASHER | 3 | |
| 9 | 11191774 | WASHER WASHER | 3 | |
| 10 | 8197387 | VALVE VALVE | 1 | |
| 11 | 11066575 | CIRCLIP CIRCLIP | 1 | |
| 12 | 93156730 | SPACING BAR SPACING BAR | 1 | |
| 13 | 93161719 | KIT-DEPRESSOR KIT-DEPRESSOR | 1 |
