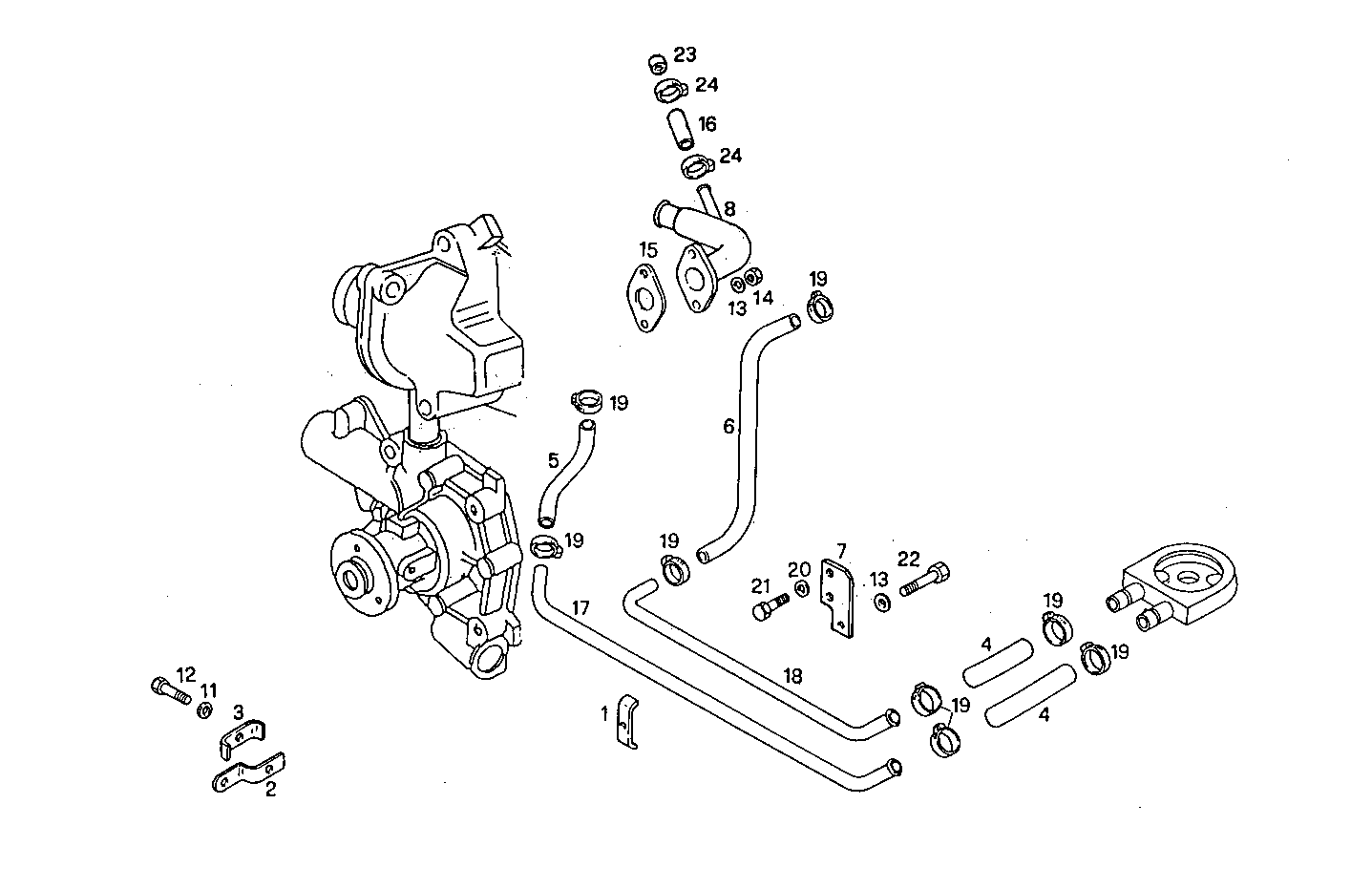

WATER LINES
8141.67F.3000 — 8141.67F
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4852221 | RETAINER RETAINER | 1 | |
| 2 | 4852220 | RETAINER RETAINER | 1 | |
| 3 | 4852223 | RETAINER RETAINER | 1 | |
| 4 | 4852224 | WATER HOSE WATER HOSE | 2 | |
| 5 | 4852225 | WATER HOSE WATER HOSE | 1 | |
| 6 | 98495097 | WATER HOSE WATER HOSE | 1 | |
| 7 | 4852219 | RETAINER RETAINER | 2 | |
| 8 | 98443322 | WATER PIPE WATER PIPE | 1 | |
| 11 | 17088974 | SPRING WASHER SPRING WASHER | 1 | |
| 12 | 10902721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 17088474 | WASHER WASHER | 4 | |
| 14 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 15 | 98430478 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 16 | 17737187 | WATER HOSE WATER HOSE | 1 | |
| 17 | 99482735 | WATER PIPE WATER PIPE | 1 | |
| 18 | 98434054 | WATER PIPE WATER PIPE | 1 | |
| 19 | 98463347 | CLIP CLIP | 8 | |
| 20 | 17090074 | SPRING WASHER SPRING WASHER | 2 | |
| 21 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 22 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 23 | 8105453 | PLUG PLUG | 1 | |
| 24 | 17764592 | CLIP CLIP | 2 |
