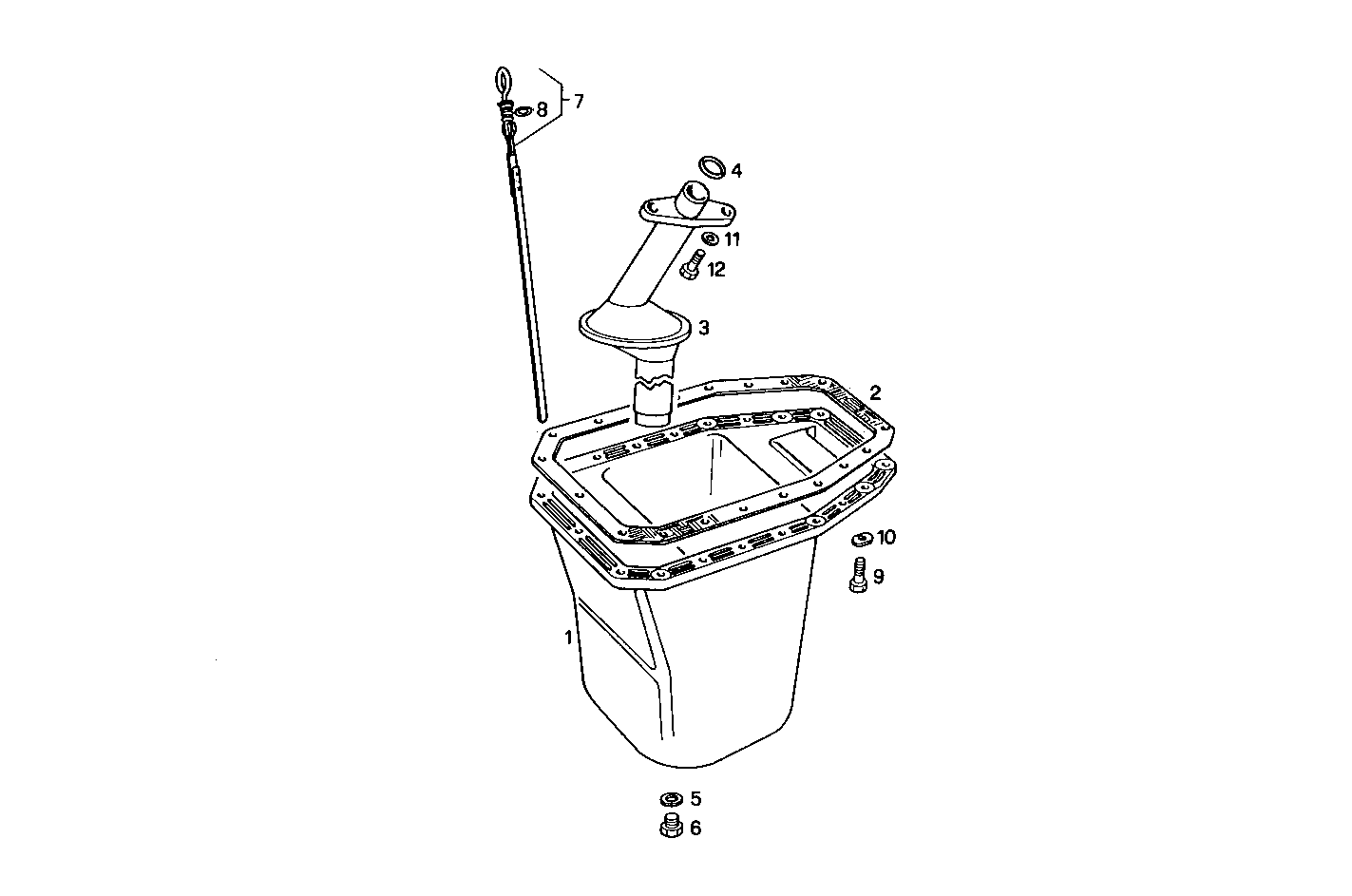

OIL SUMP
8141C00.00 — 8141C00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8104165 | OIL SUMP OIL SUMP | 1 | |
| 2 | 99488483 | OIL SUMP GASKET OIL SUMP GASKET | 1 | |
| 3 | 8104166 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 4 | 17282281 | O-RING O-RING | 1 | |
| 5 | 10263460 | WASHER WASHER | 1 | |
| 6 | 16992611 | THREADED PLUG THREADED PLUG | 1 | |
| 7 | 8022741 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 8 | 14452981 | O-RING O-RING | 1 | |
| 9 | 16605424 | SCREW SCREW | 19 | |
| 10 | 7300648 | LOCKING PLATE LOCKING PLATE | 19 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 |
