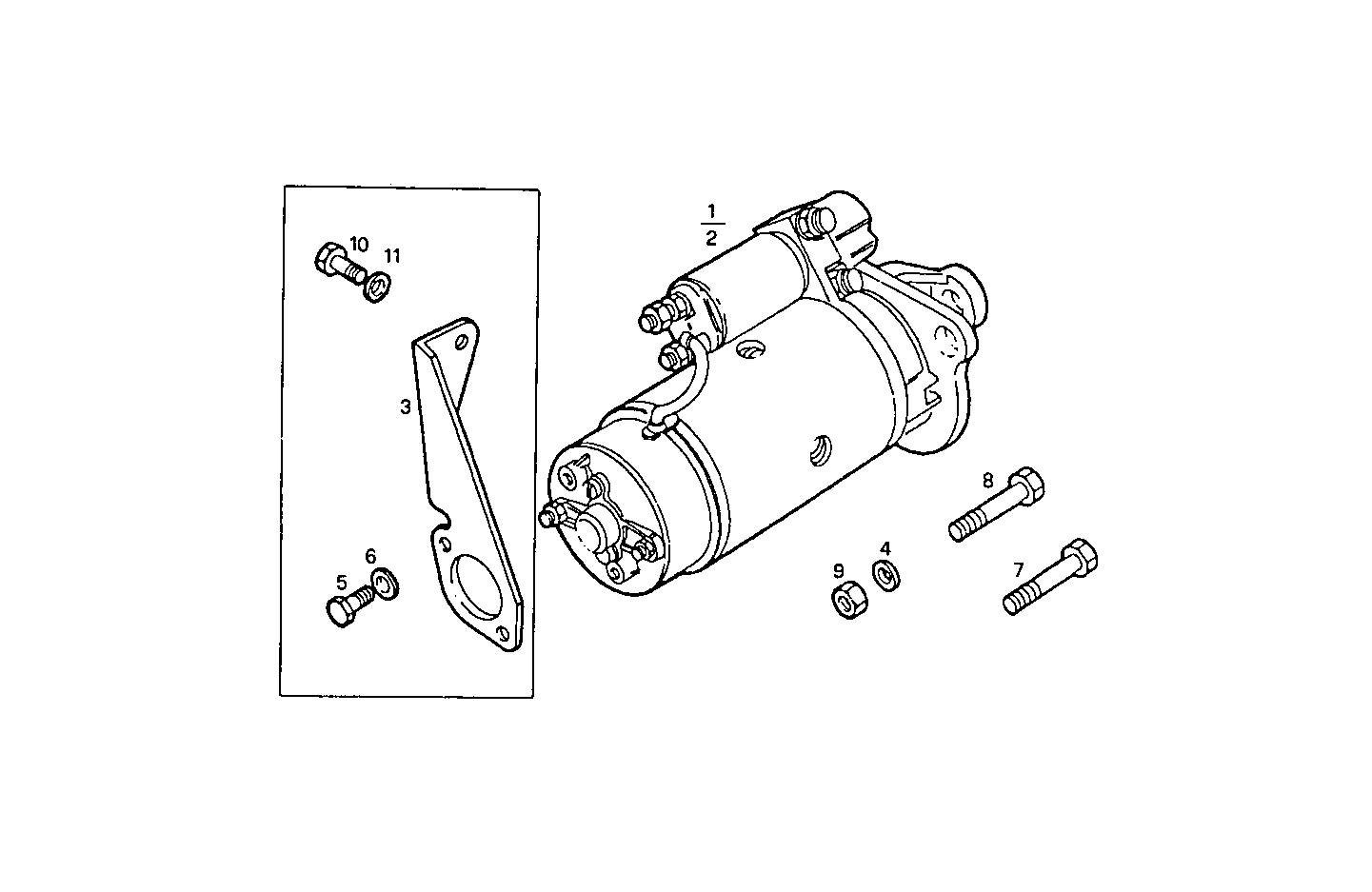

STARTER MOTOR - 12V
8141C67.03A005 — 8141C67
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4856055 | STARTER MOTOR STARTER MOTOR | 1 | |
| 2 | 4856056 | STARTER MOTOR STARTER MOTOR | 1 | |
| 3 | 93804801 | RETAINER RETAINER | 1 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 5 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 17088474 | WASHER WASHER | 2 | |
| 7 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 16608324 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 17038121 | HEXAGON NUT HEXAGON NUT | 2 | |
| 10 | 15540221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 17091074 | WASHER WASHER | 1 |
