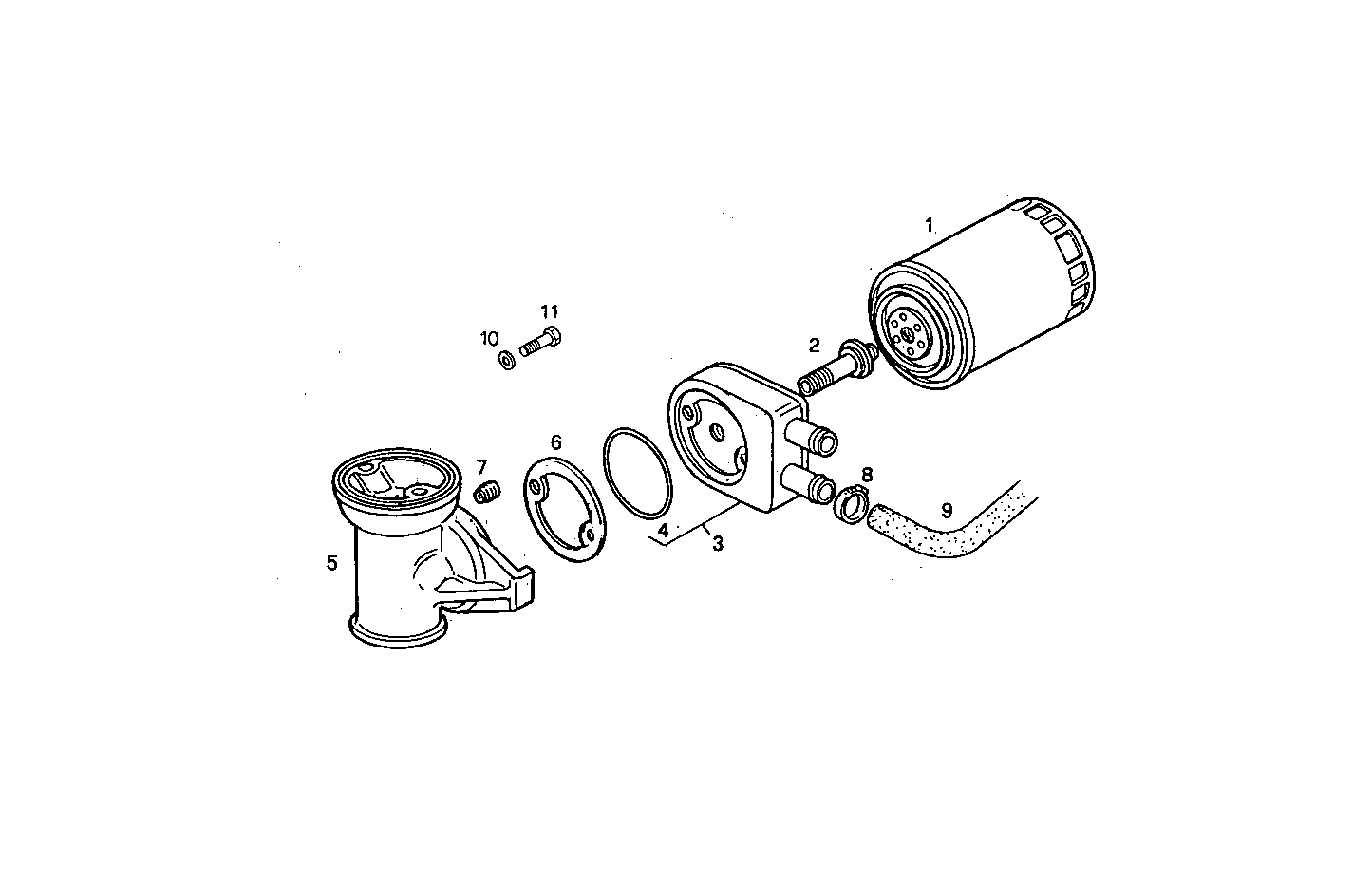

HORIZONTAL SIMPLE OIL FILTER
8141E00.00 — 8141E00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 1903628 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 2 | 98455068 | PIPE SOCKET PIPE SOCKET | 1 | |
| 3 | 4866350 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 4 | 93160574 | RUBBER RING RUBBER RING | 1 | |
| 5 | 98484239 | SUPPORT SUPPORT | 1 | |
| 6 | 8009900 | GASKET GASKET | 1 | |
| 7 | 4855259 | DOWEL PIN DOWEL PIN | 1 | |
| 8 | 17764592 | CLIP CLIP | 4 | |
| 9 | 8018153 | WATER HOSE WATER HOSE | 1 | |
| 10 | 17288381 | O-RING O-RING | 1 | |
| 11 | 98460705 | SCREW SCREW | 1 |
