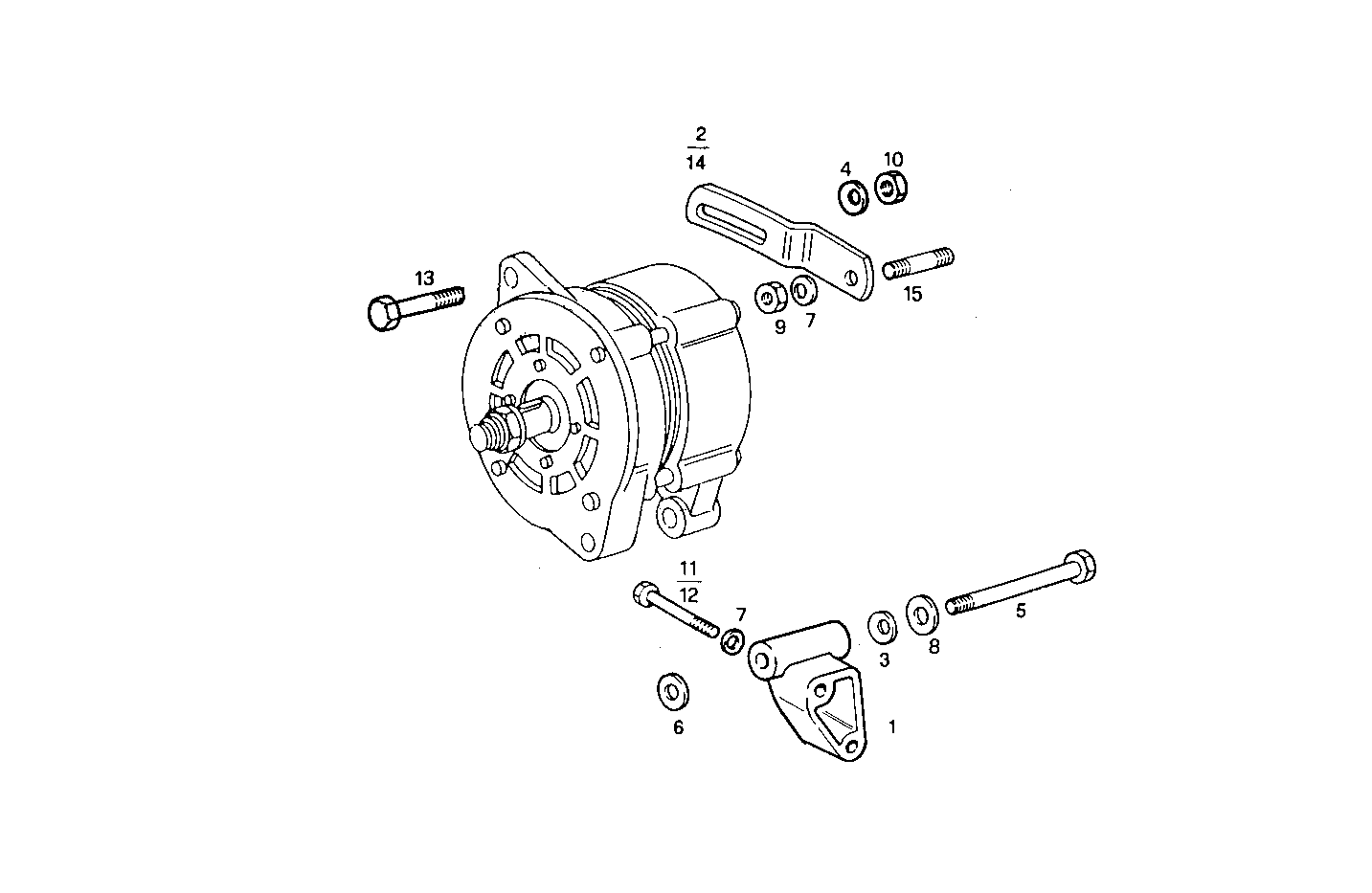

MOUNT
8141E00.00 — 8141E00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 7303475 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 2 | 98416025 | BELT TENSIONER BELT TENSIONER | 1 | |
| 3 | 4726707 | WASHER WASHER | 1 | |
| 4 | 7300040 | WASHER WASHER | 2 | |
| 5 | 11114324 | SCREW SCREW | 1 | |
| 6 | 4827669 | WASHER WASHER | 1 | |
| 7 | 11198374 | SPRING WASHER SPRING WASHER | 3 | |
| 8 | 11198674 | WASHER WASHER | 1 | |
| 9 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 10 | 12574511 | NUT NUT | 1 | |
| 11 | 15971321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 15970924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 11307024 | SCREW SCREW | 1 | |
| 14 | 4279582 | BELT TENSIONER BELT TENSIONER | 1 |
