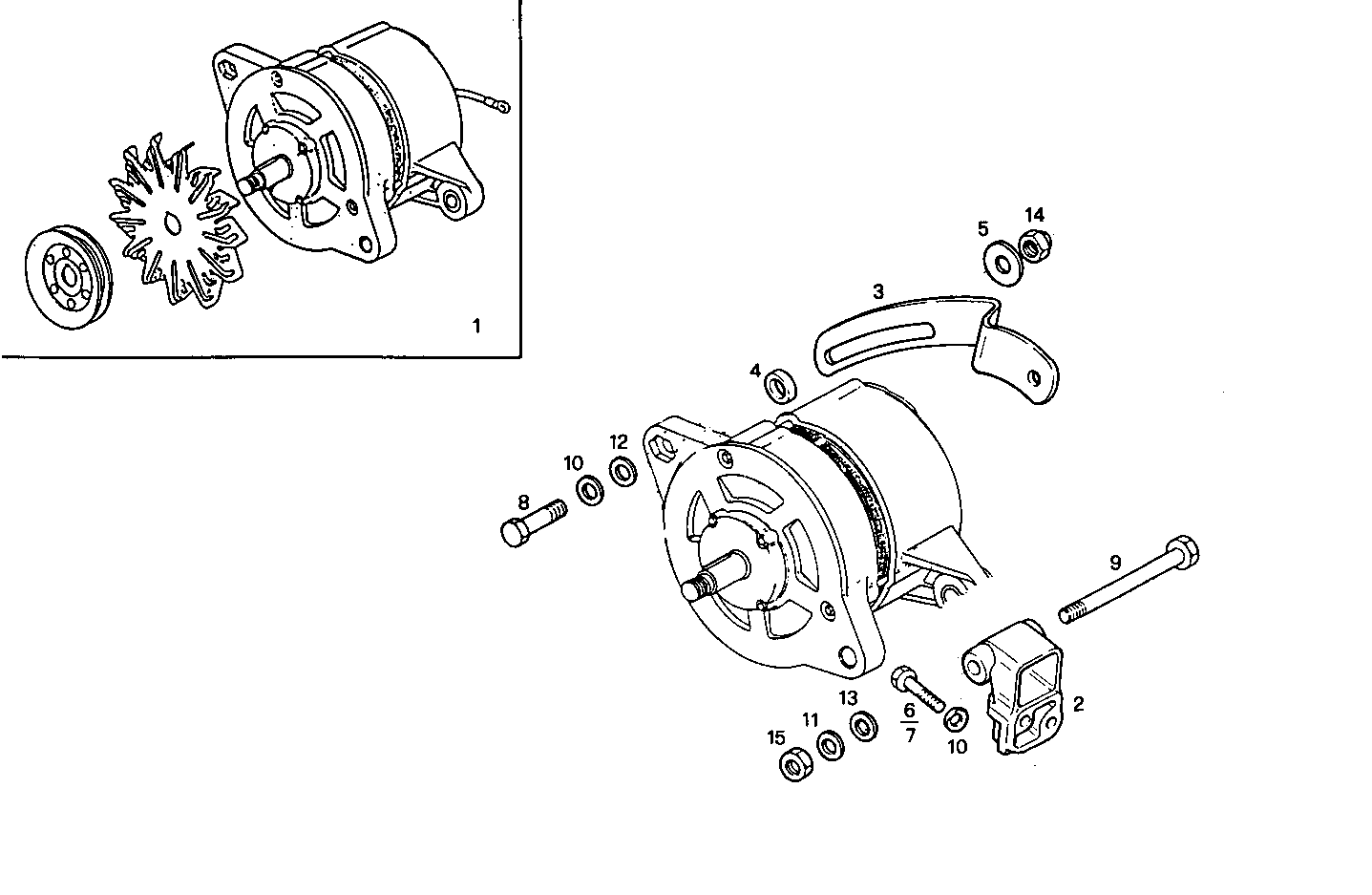

SELF-REGULATED ALTERNATOR
8141E00.00 — 8141E00
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8023992 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 98450774 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 3 | 98450773 | BELT TENSIONER BELT TENSIONER | 1 | |
| 4 | 98450771 | SPACER SPACER | 1 | |
| 5 | 7300040 | WASHER WASHER | 1 | |
| 6 | 11234724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 11343824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 16608224 | SCREW SCREW | 1 | |
| 9 | 16611324 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 11 | 17091074 | WASHER WASHER | 1 | |
| 12 | 17095104 | WASHER WASHER | 1 | |
| 13 | 17095304 | WASHER WASHER | 1 | |
| 14 | 17038121 | HEXAGON NUT HEXAGON NUT | 1 | |
| 15 | 17153121 | NUT NUT | 1 |
