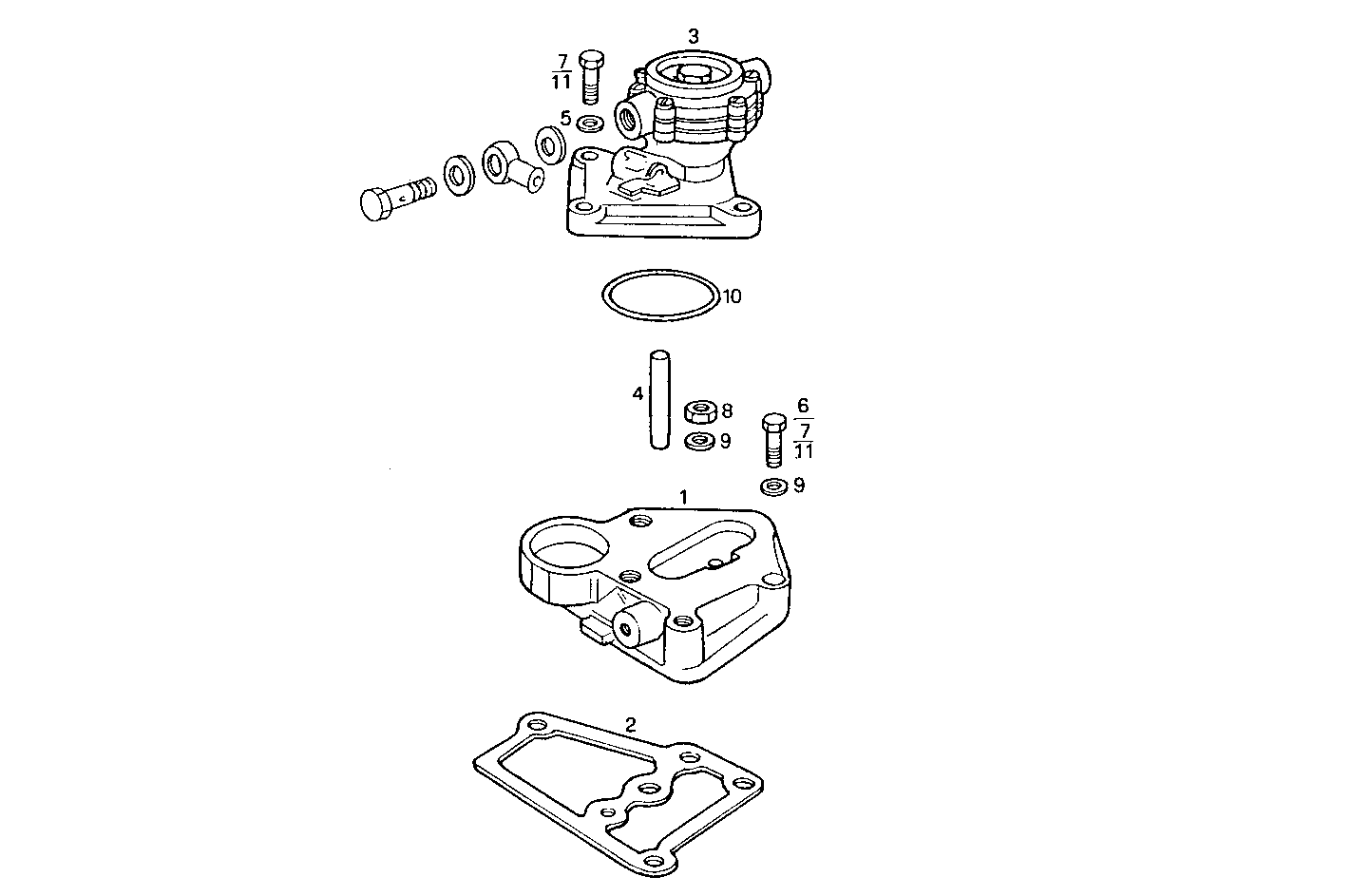

FUEL PUMP
8141i07.01 — 8141i07
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4837038 | SUPPORT SUPPORT | 1 | |
| 2 | 98421276 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 4830098 | FUEL PUMP FUEL PUMP | 1 | |
| 4 | 4741478 | THRUST ROD THRUST ROD | 1 | |
| 5 | 13550301 | WASHER WASHER | 3 | |
| 6 | 16044321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 8 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 11459781 | O-RING O-RING | 1 | |
| 11 | 16044721 | HEXAGON BOLT HEXAGON BOLT | 2 |
