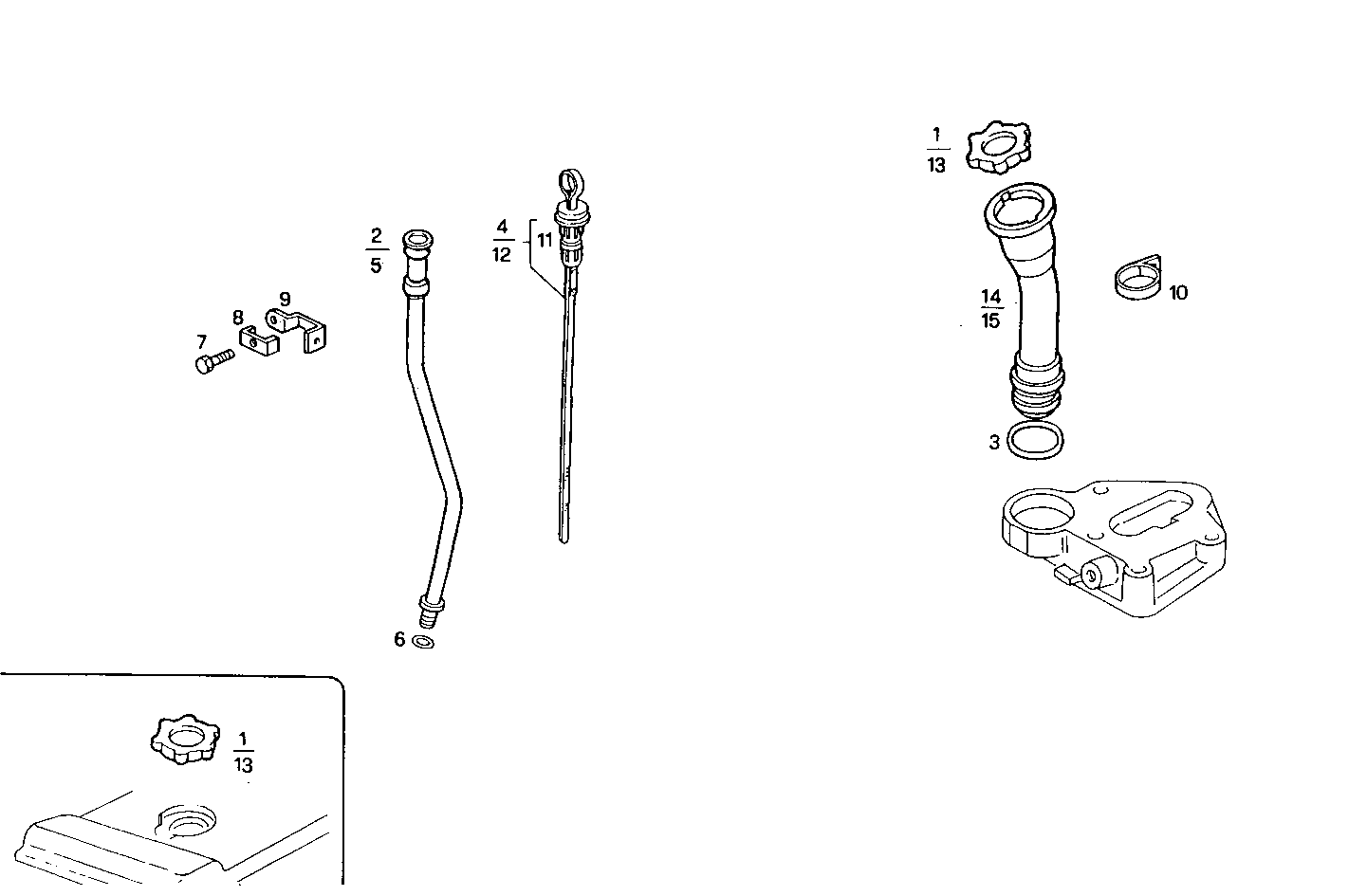

OIL DIPSTICK
8141i07.01 — 8141i07
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500301568 | OIL FILLER PLUG OIL FILLER PLUG | 2 | |
| 2 | 4864682 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 3 | 14458181 | O-RING O-RING | 1 | |
| 4 | 7303007 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 5 | 7302234 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 6 | 11452980 | WASHER WASHER | 1 | |
| 7 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 4716870 | RETAINER RETAINER | 1 | |
| 9 | 7302237 | RETAINER RETAINER | 1 | |
| 10 | 4837154 | RETAINER RETAINER | 1 | |
| 11 | 4102056 | RUBBER GASKET RUBBER GASKET | 1 | |
| 12 | 4864683 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 13 | 98418980 | OIL FILLER PLUG OIL FILLER PLUG | 2 | |
| 14 | 4837150 | OIL FILLER PIPE OIL FILLER PIPE | 1 | |
| 15 | 98476185 | OIL FILLER PIPE OIL FILLER PIPE | 1 |
