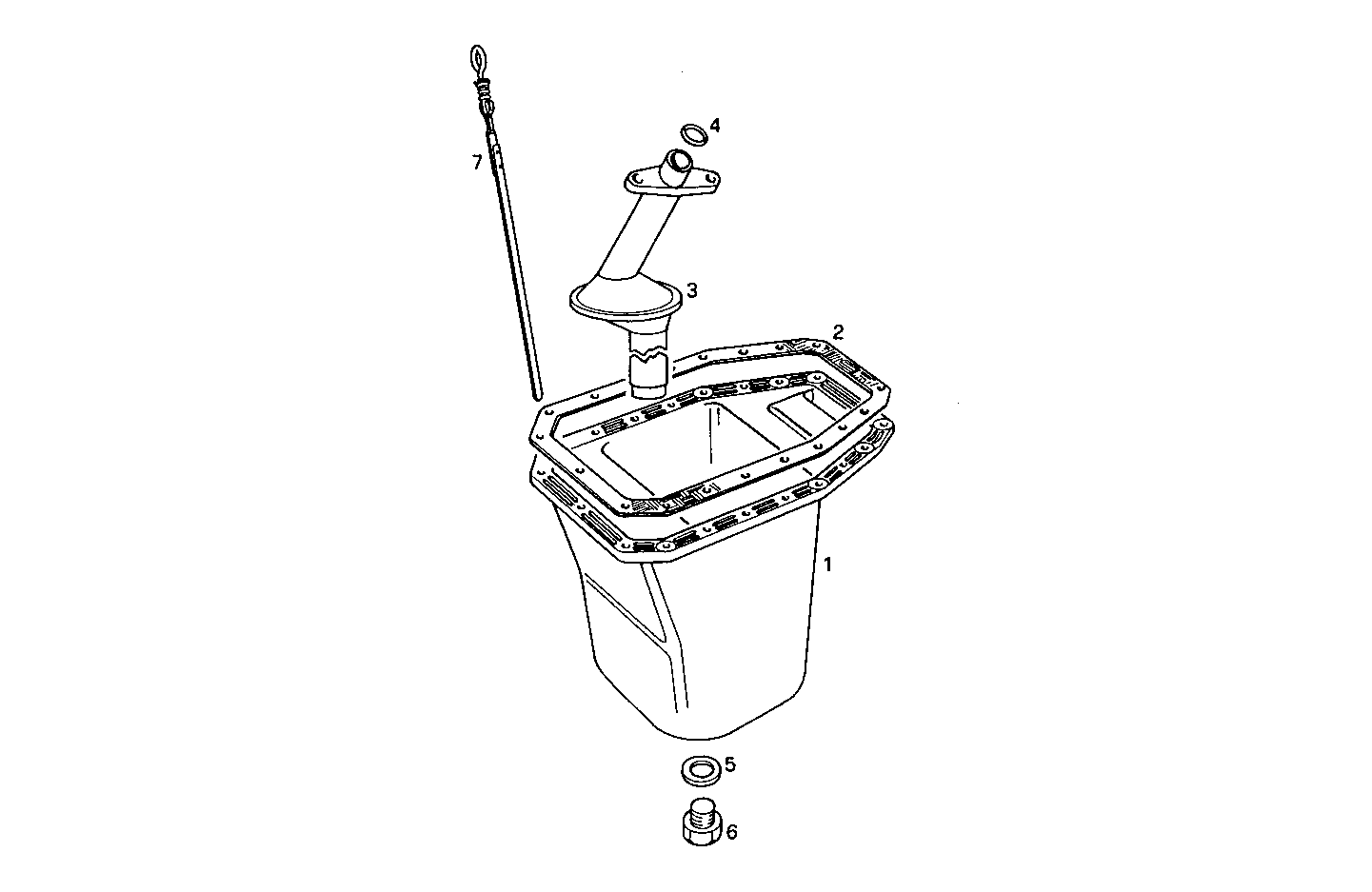

OIL SUMP
8141i07.01 — 8141i07
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8104165 | OIL SUMP OIL SUMP | 1 | |
| 2 | 98427939 | OIL SUMP GASKET OIL SUMP GASKET | 1 | |
| 3 | 8104166 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 4 | 14457781 | O-RING O-RING | 1 | |
| 5 | 10263460 | WASHER WASHER | 1 | |
| 6 | 10305171 | PLUG PLUG | 1 | |
| 7 | 8008546 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 8 | 8103207 | RETAINER RETAINER | 1 | |
| 9 | 11193871 | WASHER WASHER | 2 | |
| 10 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 7300553 | RETAINER RETAINER | 1 | |
| 13 | 16044221 | HEXAGON BOLT HEXAGON BOLT | 1 |
