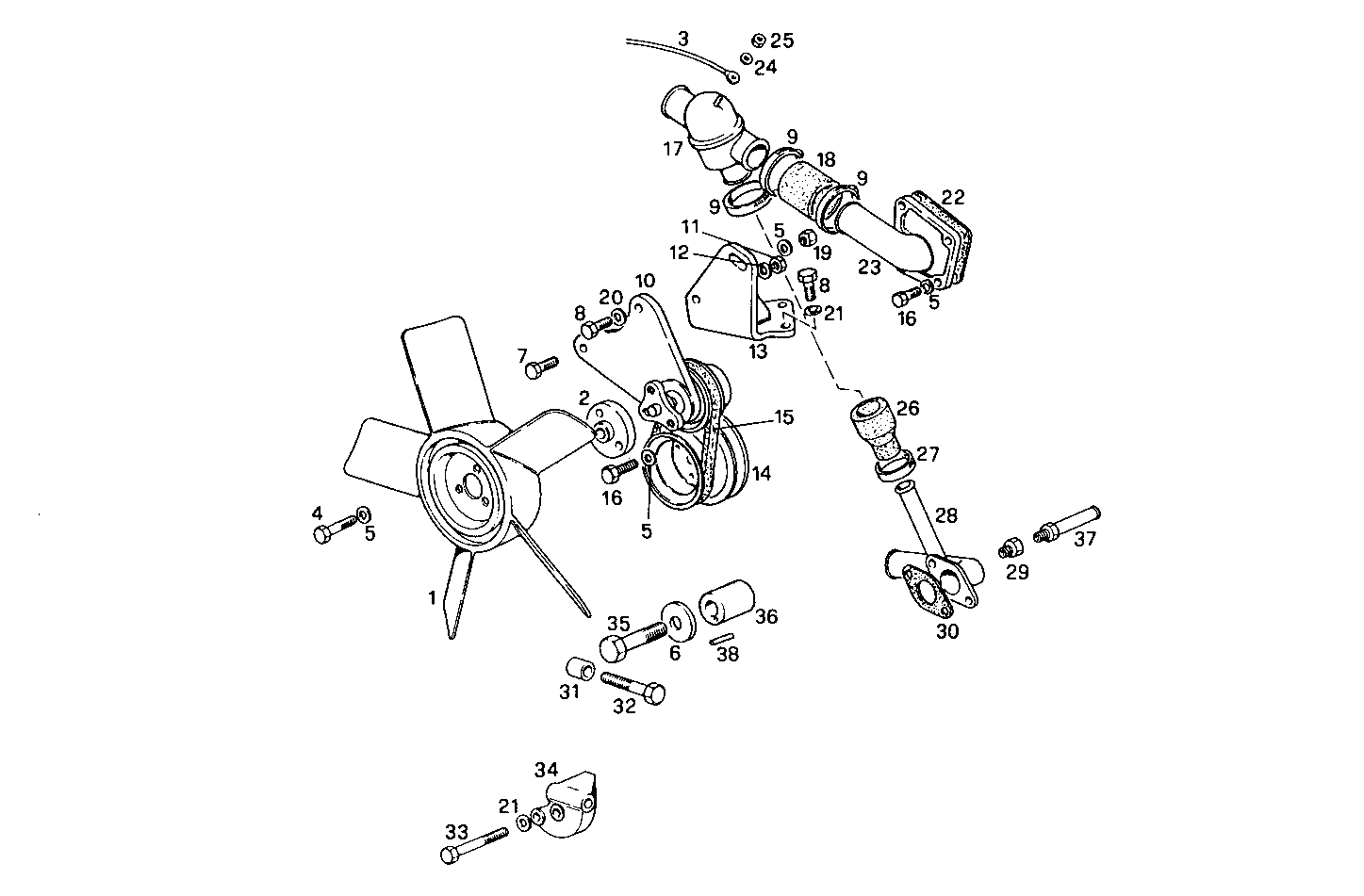

PUSHER FAN
8141i07.01 — 8141i07
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4935425 | FAN FAN | 1 | |
| 2 | 8100515 | SPACING BAR SPACING BAR | 1 | |
| 3 | 8961599 | WIRE/CABLE WIRE/CABLE | 1 | |
| 4 | 16043821 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 11193879 | SPRING WASHER SPRING WASHER | 11 | |
| 6 | 4279447 | WASHER WASHER | 1 | |
| 7 | 15540521 | SCREW SCREW | 1 | |
| 8 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 17764792 | HOSE CLIP HOSE CLIP | 3 | |
| 10 | 7301971 | BELT TENSIONER BELT TENSIONER | 1 | |
| 11 | 16101511 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 11198679 | SPRING WASHER SPRING WASHER | 1 | |
| 13 | 7301966 | SUPPORT SUPPORT | 1 | |
| 14 | 8008079 | PULLEY PULLEY | 1 | |
| 15 | 7301965 | V-BELT V-BELT | 1 | |
| 16 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 17 | 8819129 | THERMOSTAT THERMOSTAT | 1 | |
| 18 | 98433748 | WATER HOSE WATER HOSE | 1 | |
| 19 | 12164711 | HEXAGON NUT HEXAGON NUT | 1 | |
| 20 | 13550421 | WASHER WASHER | 1 | |
| 21 | 11198379 | SPRING WASHER SPRING WASHER | 5 | |
| 22 | 98421297 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 23 | 8007827 | WATER PIPE WATER PIPE | 1 | |
| 24 | 10519301 | WASHER WASHER | 1 | |
| 25 | 15896411 | HEXAGON NUT HEXAGON NUT | 1 | |
| 26 | 4751401 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 27 | 17764692 | CLIP CLIP | 1 | |
| 28 | 7301957 | WATER PIPE WATER PIPE | 1 | |
| 29 | 8020963 | PIPE SOCKET PIPE SOCKET | 1 | |
| 30 | 98430478 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 31 | 7300626 | SPACING BAR SPACING BAR | 1 | |
| 32 | 15888721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 33 | 15971321 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 34 | 7301272 | SUPPORT SUPPORT | 1 | |
| 35 | 98432123 | SCREW SCREW | 1 | |
| 36 | 8009591 | SPACING BAR SPACING BAR | 1 | |
| 37 | 4618675 | THREADED UNION THREADED UNION | 1 | |
| 38 | 10332010 | PARALLEL PIN PARALLEL PIN | 1 |
