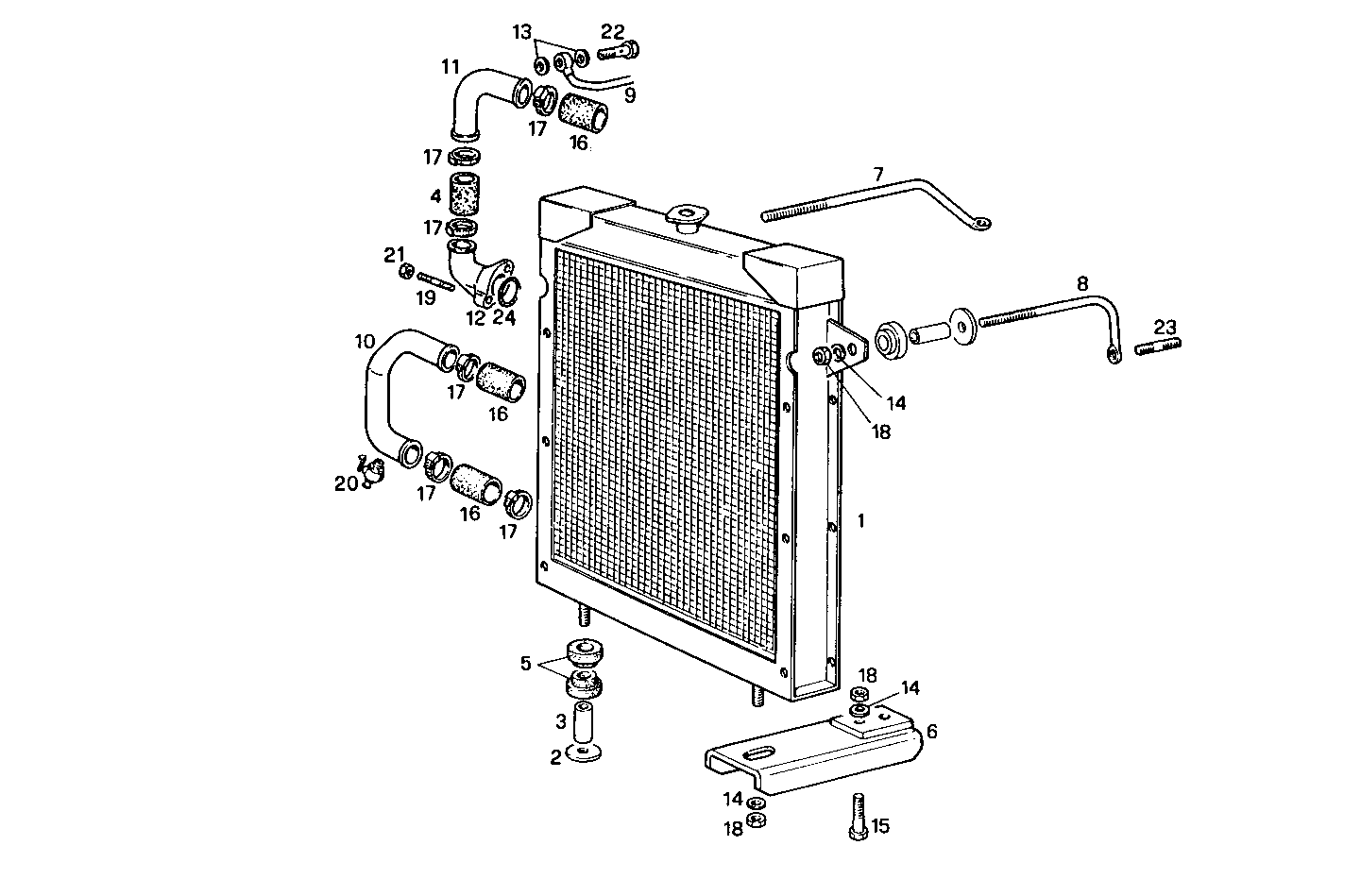

RADIATOR FOR SETTING TILL MAX POWER
8141i07.01 — 8141i07
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4934548 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 741570 | WASHER WASHER | 8 | |
| 3 | 741571 | SPACING BAR SPACING BAR | 4 | |
| 4 | 8017516 | WATER HOSE WATER HOSE | 1 | |
| 5 | 741569 | RUBBER PAD RUBBER PAD | 8 | |
| 6 | 4934549 | SUPPORT SUPPORT | 2 | |
| 7 | 4934566 | TIE ROD TIE ROD | 1 | |
| 8 | 8008464 | TIE ROD TIE ROD | 1 | |
| 9 | 8010901 | WATER PIPE WATER PIPE | 1 | |
| 10 | 4934565 | WATER PIPE WATER PIPE | 1 | |
| 11 | 8100934 | WATER PIPE WATER PIPE | 1 | |
| 12 | 4934561 | WATER PIPE WATER PIPE | 1 | |
| 13 | 4858606 | GASKET GASKET | 4 | |
| 14 | 11198371 | SPRING WASHER SPRING WASHER | 12 | |
| 15 | 11307021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 16 | 12088086 | RUBBER SLEEVE RUBBER SLEEVE | 3 | |
| 17 | 12174090 | HOSE CLIP HOSE CLIP | 8 | |
| 18 | 12164711 | HEXAGON NUT HEXAGON NUT | 12 | |
| 19 | 13517221 | STUD STUD | 2 | |
| 20 | 13413190 | DRAIN COCK DRAIN COCK | 1 | |
| 21 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 22 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 23 | 13517021 | STUD STUD | 1 | |
| 24 | 14455281 | O-RING O-RING | 1 |
