SENDER UNITS ALARMS INSTRUMENT - 12/24V
8141i07.01 — 8141i07

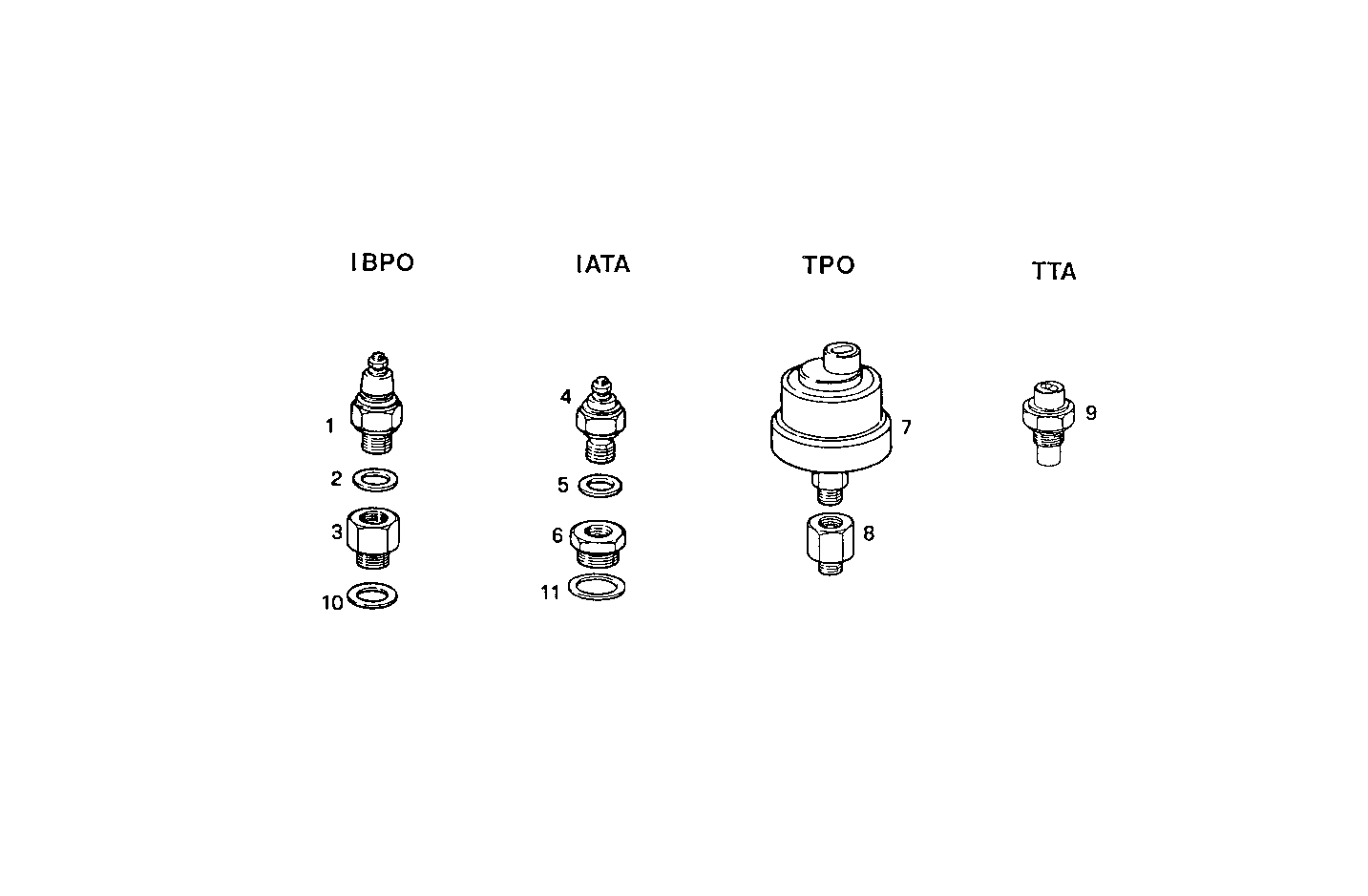

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8104140 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 4858607 | WASHER WASHER | 1 | |
| 3 | 4935314 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8104141 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 6 | 4928330 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 8100563 | TRANSMITTER TRANSMITTER | 1 | |
| 8 | 4928113 | PIPE SOCKET PIPE SOCKET | 1 | |
| 9 | 4448131 | TEMP. TRANSMITTER TEMP. TRANSMITTER | 1 | |
| 10 | 4858610 | WASHER WASHER | 1 | |
| 11 | 4858609 | WASHER WASHER | 1 |
