ACCESSORIES

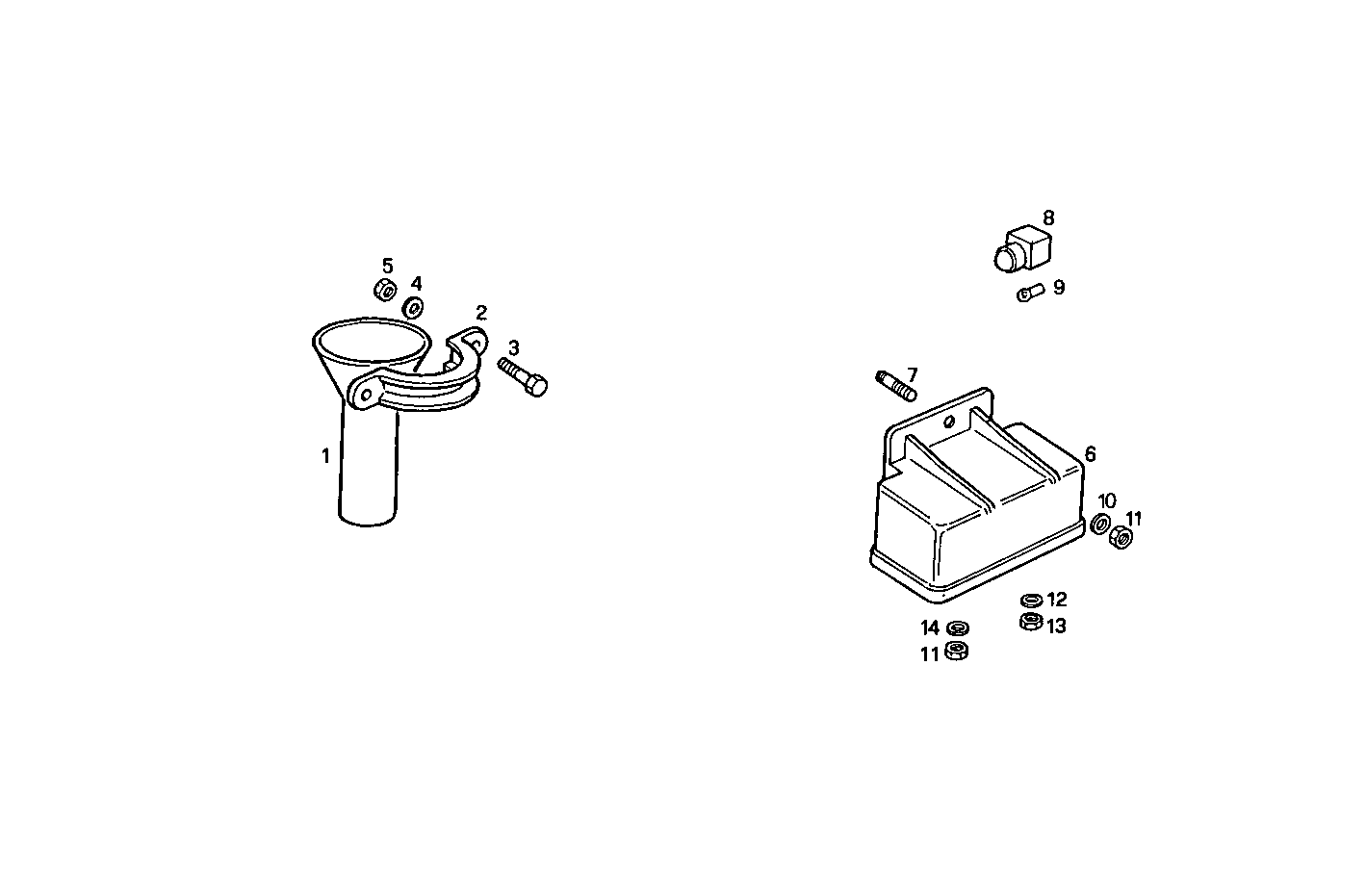

8141i67.01 — 8141i67
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4936100 | EXHAUST PIPE EXHAUST PIPE | 1 | |
| 2 | 93801183 | RETAINER RETAINER | 2 | |
| 3 | 16604524 | SCREW SCREW | 2 | |
| 4 | 11194071 | WASHER WASHER | 2 | |
| 5 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 6 | 5990986 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 | |
| 7 | 8103002 | PIN PIN | 1 | |
| 8 | 8108532 | LUMINOUS INDICATOR LUMINOUS INDICATOR | 1 | |
| 9 | 14143990 | LAMP LAMP | 1 | |
| 10 | 11197771 | SPRING WASHER SPRING WASHER | 1 | |
| 11 | 15896211 | HEXAGON NUT HEXAGON NUT | 2 | |
| 12 | 10519301 | WASHER WASHER | 1 | |
| 13 | 15896411 | HEXAGON NUT HEXAGON NUT | 1 | |
| 14 | 10519401 | WASHER WASHER | 1 |
