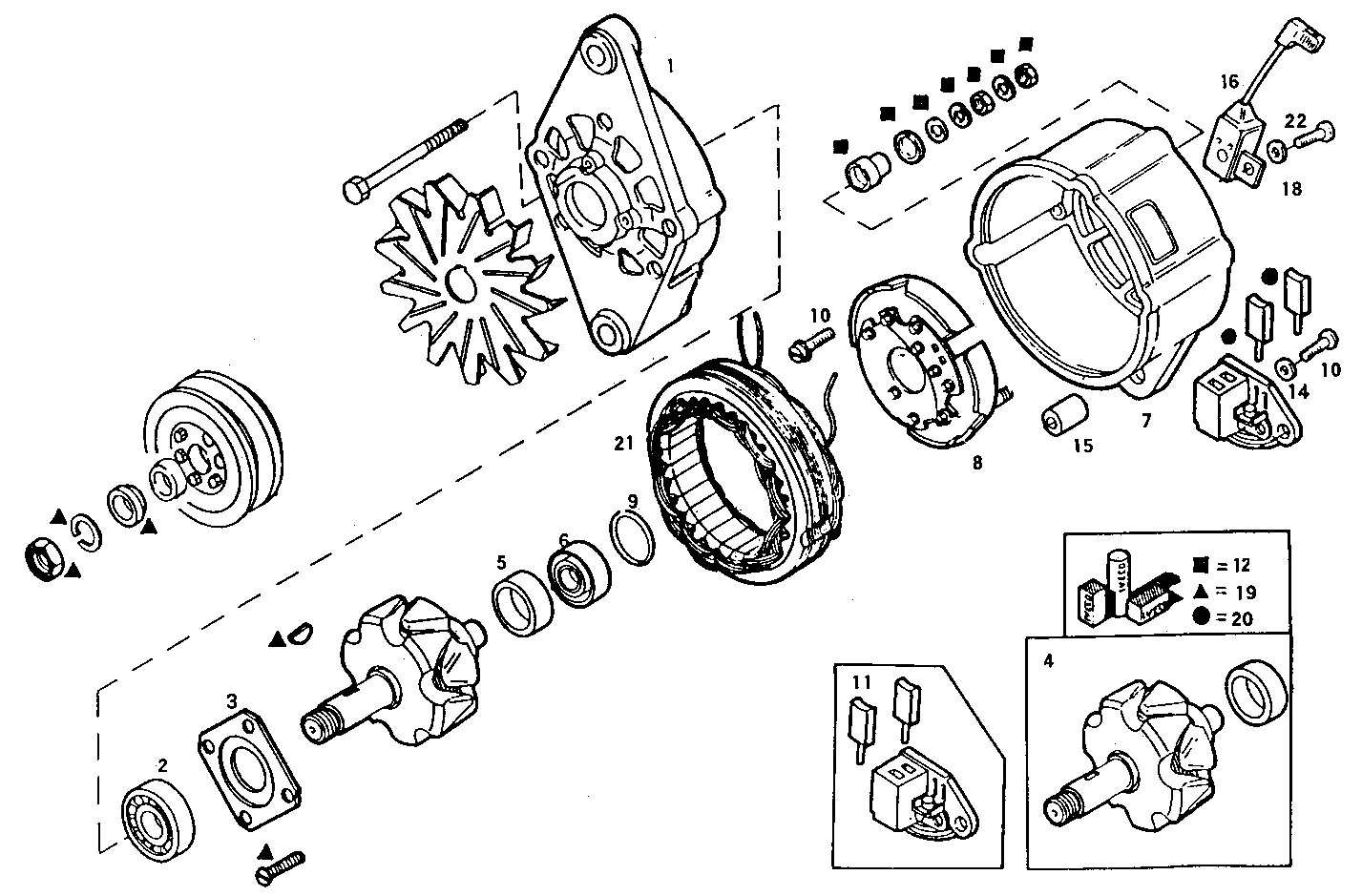

GENERATOR (COMPONENTS)
8141i67.01 — 8141i67
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 72022466 | SUPPORT SUPPORT | 1 | |
| 2 | 1103693 | BALL BEARING BALL BEARING | 1 | |
| 3 | 79022468 | PLATE PLATE | 1 | |
| 4 | 9938170 | GENERATOR ROTOR GENERATOR ROTOR | 1 | |
| 5 | 8121114 | RING RING | 1 | |
| 6 | 1136956 | BALL BEARING BALL BEARING | 1 | |
| 7 | 42484641 | SUPPORT SUPPORT | 1 | |
| 8 | 7984708 | RECTIFIER BRIDGE RECTIFIER BRIDGE | 1 | |
| 9 | 79025494 | O-RING O-RING | 1 | |
| 10 | 79075883 | SCREW SCREW | 5 | |
| 11 | 9942885 | VOLTAGE REGULATOR VOLTAGE REGULATOR | 1 | |
| 12 | 9939709 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 14 | 42483342 | WASHER WASHER | 2 | |
| 15 | 9960120 | BUSH BUSH | 1 | |
| 16 | 79022480 | CONDENSER CONDENSER | 1 | |
| 18 | 9960179 | WASHER WASHER | 1 | |
| 19 | 1307188 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 20 | 9927837 | KIT-GENERATOR KIT-GENERATOR | 1 | |
| 21 | 9937197 | GENERATOR STATOR GENERATOR STATOR | 1 | |
| 22 | 10389321 | SCREW SCREW | 1 |
