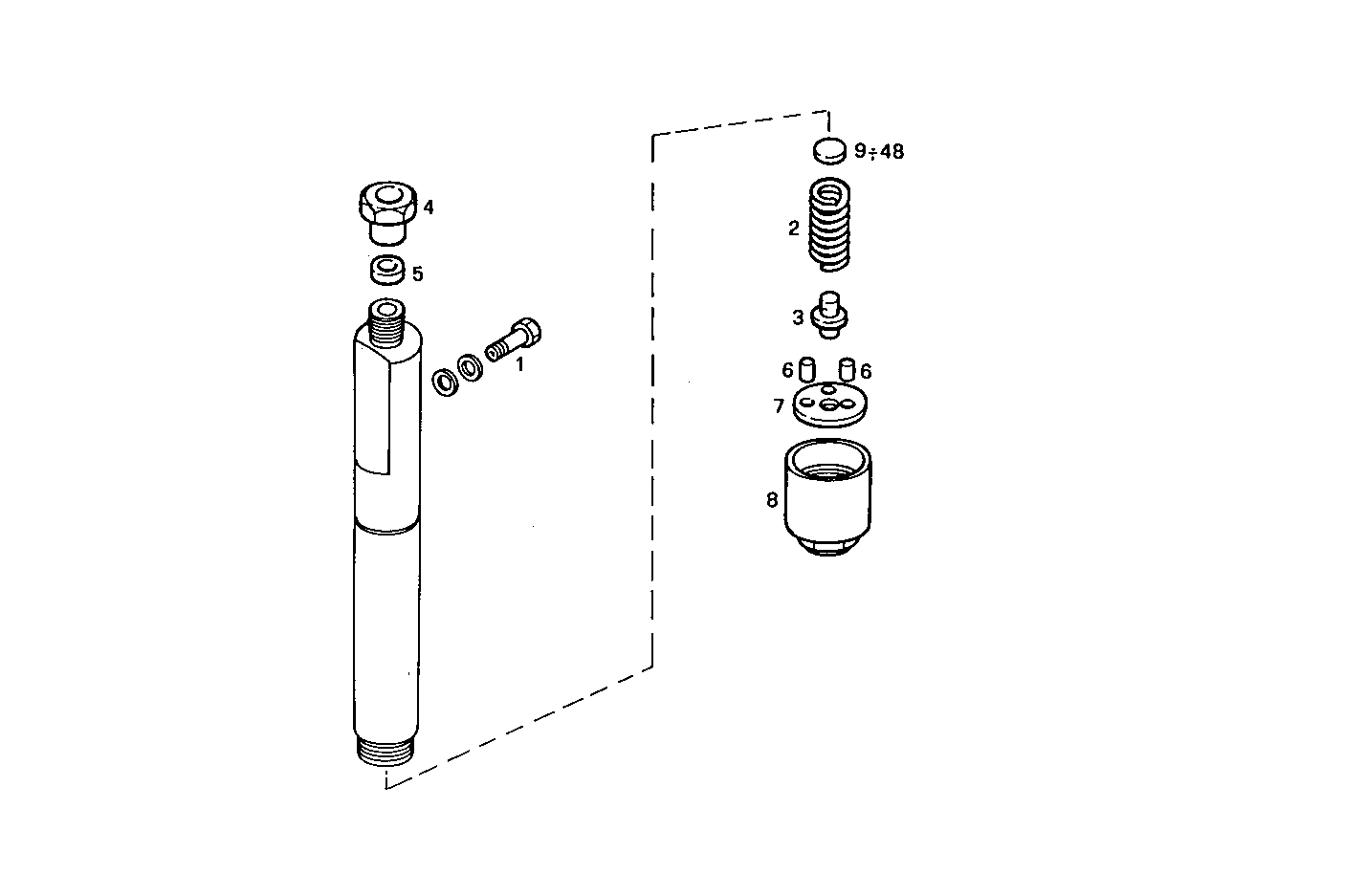

NOZZLE HOLDER (COMPONENTS)
8141i67.01 — 8141i67
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 93190600 | SCREW CONNECTOR SCREW CONNECTOR | 4 | |
| 2 | 9982965 | SPRING SPRING | 1 | |
| 3 | 9982961 | WASHER/PLATE WASHER/PLATE | 1 | |
| 4 | 9982962 | NUT NUT | 1 | |
| 5 | 1288011 | RING RING | 1 | |
| 6 | 9982960 | PARALLEL PIN PARALLEL PIN | 2 | |
| 7 | 9982959 | STOP PLATE STOP PLATE | 1 | |
| 8 | 9982963 | FASTENING RING FASTENING RING | 1 | |
| 9 | 79067811 | SHIM SHIM | 1 | |
| 10 | 79067813 | SHIM SHIM | 1 | |
| 11 | 79067816 | SHIM SHIM | 1 | |
| 12 | 79067818 | SHIM SHIM | 1 | |
| 13 | 79067821 | SHIM SHIM | 1 | |
| 14 | 9982926 | SHIM SHIM | 1 | |
| 15 | 79067826 | SHIM SHIM | 1 | |
| 16 | 9982928 | SHIM SHIM | 1 | |
| 17 | 79067831 | SHIM SHIM | 1 | |
| 18 | 9982930 | SHIM SHIM | 1 | |
| 19 | 9982931 | SHIM SHIM | 1 | |
| 20 | 9982932 | SHIM SHIM | 1 | |
| 21 | 9982933 | SHIM SHIM | 1 | |
| 22 | 9982934 | SHIM SHIM | 1 | |
| 23 | 9982935 | SHIM SHIM | 1 | |
| 24 | 9982937 | SHIM SHIM | 1 | |
| 25 | 9982938 | SHIM SHIM | 1 | |
| 26 | 9982939 | SHIM SHIM | 1 | |
| 27 | 9982940 | SHIM SHIM | 1 | |
| 28 | 9982941 | SHIM SHIM | 1 | |
| 29 | 9982942 | SHIM SHIM | 1 | |
| 30 | 9982943 | SHIM SHIM | 1 | |
| 31 | 9982944 | SHIM SHIM | 1 | |
| 32 | 9982945 | SHIM SHIM | 1 | |
| 33 | 9982946 | SHIM SHIM | 1 | |
| 34 | 9982947 | SHIM SHIM | 1 | |
| 35 | 9982948 | SHIM SHIM | 1 | |
| 36 | 9982949 | SHIM SHIM | 1 | |
| 37 | 9982950 | SHIM SHIM | 1 | |
| 38 | 9982951 | SHIM SHIM | 1 | |
| 39 | 9982952 | SHIM SHIM | 1 | |
| 40 | 9982953 | SHIM SHIM | 1 | |
| 41 | 9982954 | SHIM SHIM | 1 | |
| 42 | 9982955 | SHIM SHIM | 1 | |
| 43 | 9982956 | SHIM SHIM | 1 | |
| 44 | 9982957 | SHIM SHIM | 1 | |
| 45 | 9982958 | SHIM SHIM | 1 | |
| 46 | 79067806 | SHIM SHIM | 1 | |
| 47 | 79067808 | SHIM SHIM | 1 | |
| 48 | 79067848 | SHIM SHIM | 1 |
