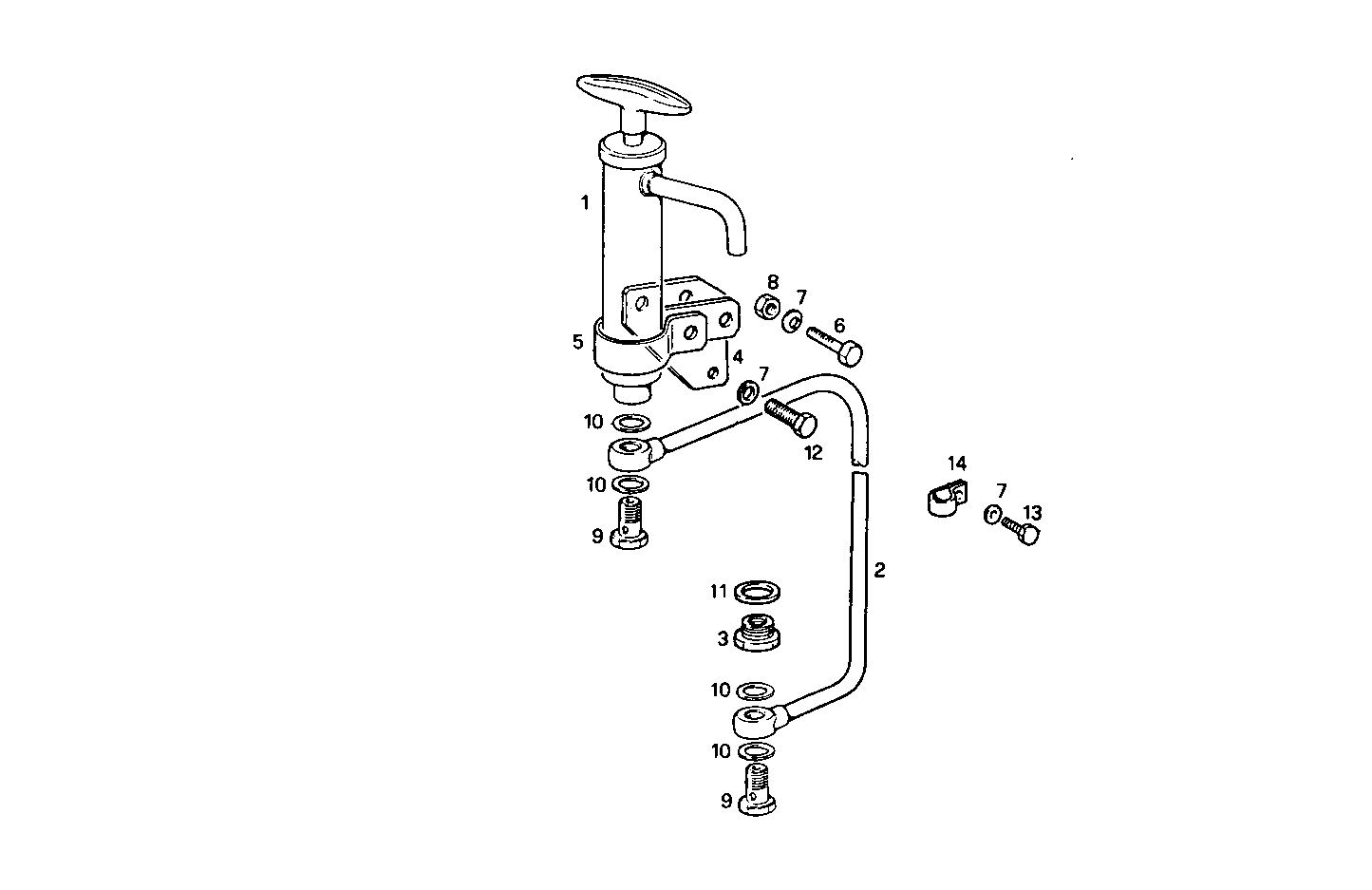

OIL DRAIN PUMP
8141i67.01 — 8141i67
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019921 | HAND PUMP HAND PUMP | 1 | |
| 2 | 8014756 | OIL LINE OIL LINE | 1 | |
| 3 | 4919578 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8101370 | SUPPORT SUPPORT | 1 | |
| 5 | 4928851 | CLIP CLIP | 2 | |
| 6 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 11198371 | SPRING WASHER SPRING WASHER | 5 | |
| 8 | 12164711 | HEXAGON NUT HEXAGON NUT | 2 | |
| 9 | 4864084 | BANJO BOLT BANJO BOLT | 2 | |
| 10 | 4858609 | WASHER WASHER | 4 | |
| 11 | 10263460 | WASHER WASHER | 1 | |
| 12 | 15970321 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 15970321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 8101469 | CLIP CLIP | 1 |
