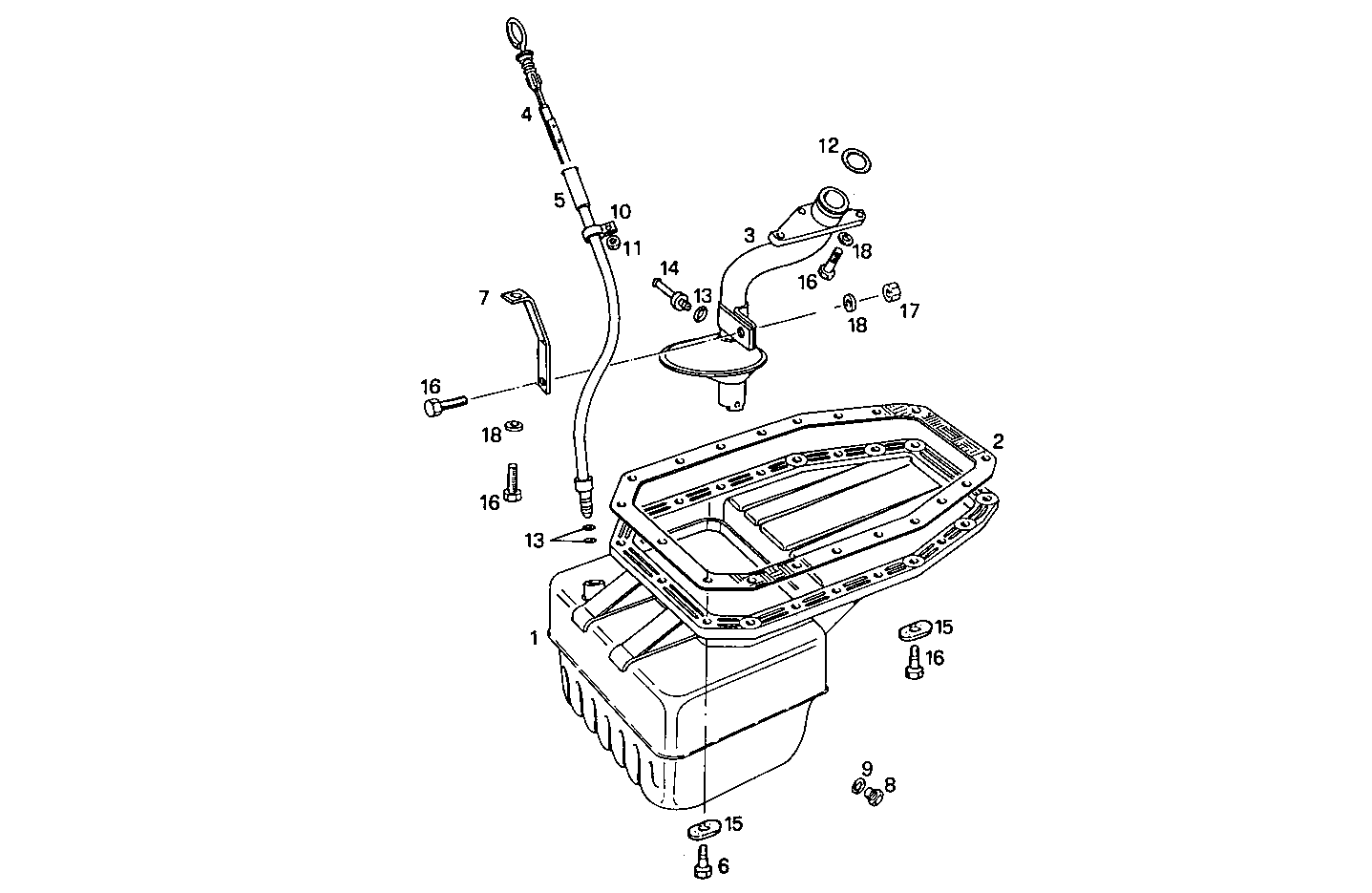

OIL SUMP
8141i67.01 — 8141i67
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8007544 | OIL SUMP OIL SUMP | 1 | |
| 2 | 99488483 | OIL SUMP GASKET OIL SUMP GASKET | 1 | |
| 3 | 7300542 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 4 | 8009735 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 5 | 7300430 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 6 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 7 | 8019884 | RETAINER RETAINER | 1 | |
| 8 | 16992611 | THREADED PLUG THREADED PLUG | 1 | |
| 9 | 10263460 | WASHER WASHER | 1 | |
| 10 | 17316690 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 11 | 16979431 | NUT NUT | 1 | |
| 12 | 17282221 | O-RING O-RING | 1 | |
| 13 | 17277981 | O-RING O-RING | 4 | |
| 14 | 8113956 | OIL LINE OIL LINE | 1 | |
| 15 | 7300648 | LOCKING PLATE LOCKING PLATE | 19 | |
| 16 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 17 | |
| 17 | 17152821 | NUT NUT | 1 | |
| 18 | 17089474 | SPRING WASHER SPRING WASHER | 4 |
