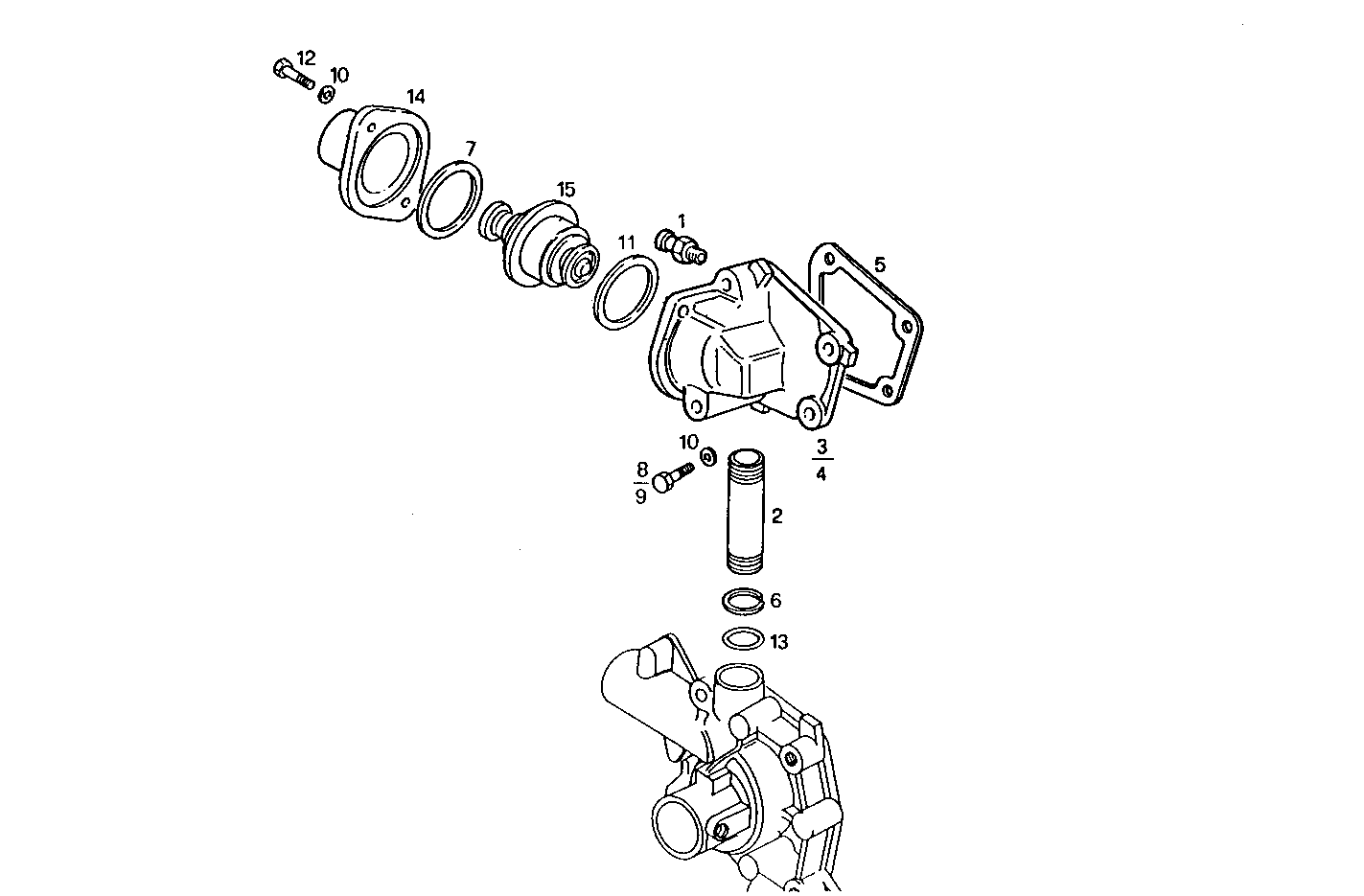

THERMOSTAT
8141i67.01 — 8141i67
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4448131 | TEMP. TRANSMITTER TEMP. TRANSMITTER | 1 | |
| 2 | 7302296 | PIPE PIPE | 1 | |
| 3 | 99464389 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 4 | 4836764 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 5 | 98421297 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 11066976 | CIRCLIP CIRCLIP | 1 | |
| 7 | 14455281 | O-RING O-RING | 1 | |
| 8 | 16605924 | SCREW SCREW | 1 | |
| 9 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 11 | 7303173 | GASKET GASKET | 1 | |
| 12 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 17278481 | O-RING O-RING | 4 | |
| 14 | 7301254 | COVER COVER | 1 | |
| 15 | 7303615 | THERMOSTAT THERMOSTAT | 1 |
