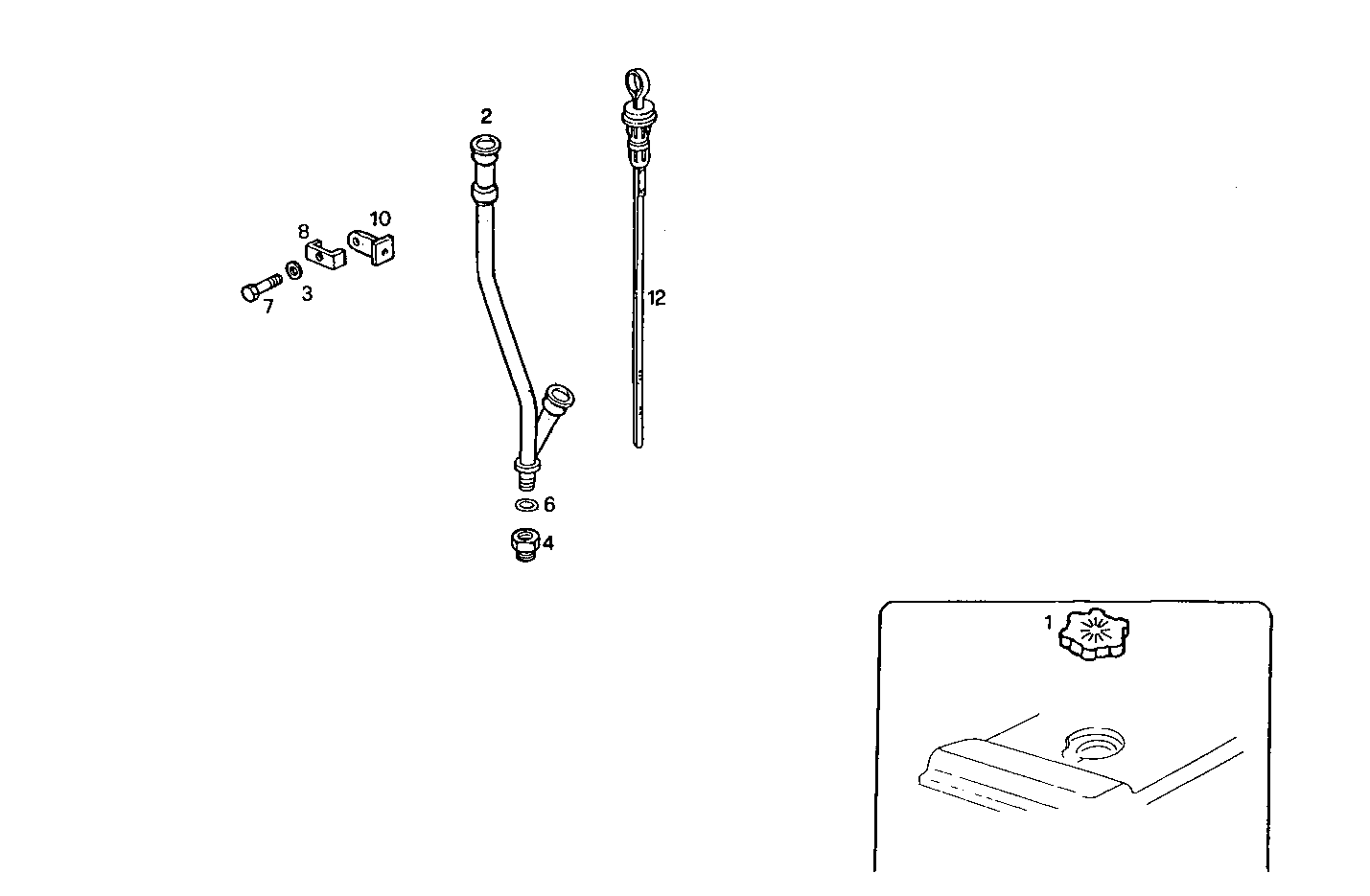

OIL DIPSTICK
8141i67.02A010 — 8141i67
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98442027 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 2 | 500302190 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 3 | 11193874 | WASHER WASHER | 1 | |
| 4 | 99441398 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 14452981 | O-RING O-RING | 1 | |
| 7 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 4716870 | RETAINER RETAINER | 1 | |
| 10 | 500302199 | RETAINER RETAINER | 1 | |
| 12 | 500302197 | OIL DIPSTICK OIL DIPSTICK | 1 |
