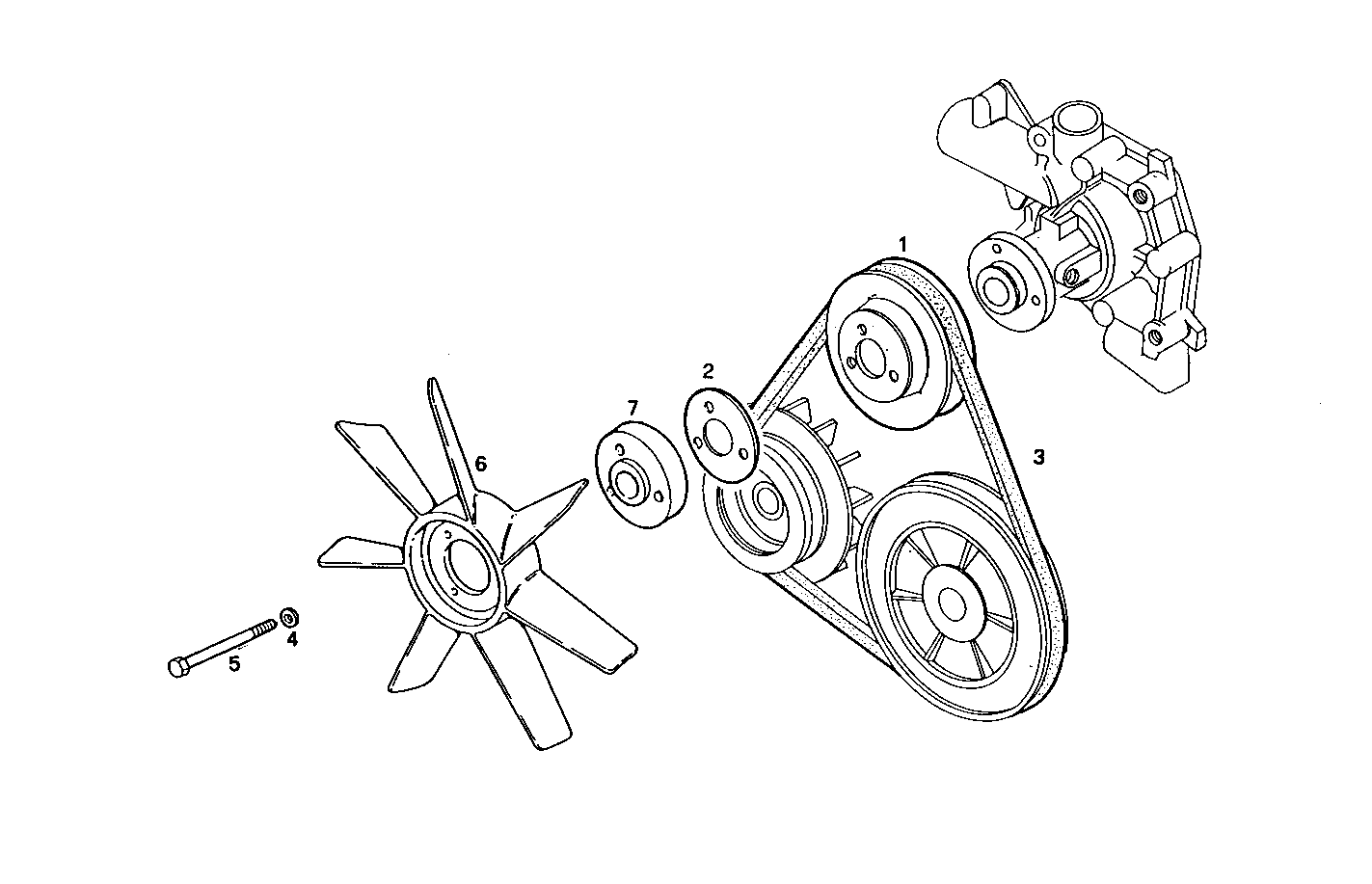

PULLEYS AND BELTS
8141i67.02A010 — 8141i67
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4713941 | WATER PUMP PULLEY WATER PUMP PULLEY | 1 | |
| 2 | 7300488 | RING RING | 2 | |
| 3 | 7301221 | V-BELT V-BELT | 1 | |
| 4 | 17094924 | WASHER WASHER | 3 | |
| 5 | 16606524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 6 | 8596706 | FAN FAN | 1 | |
| 7 | 8100533 | SPACING BAR SPACING BAR | 1 |
