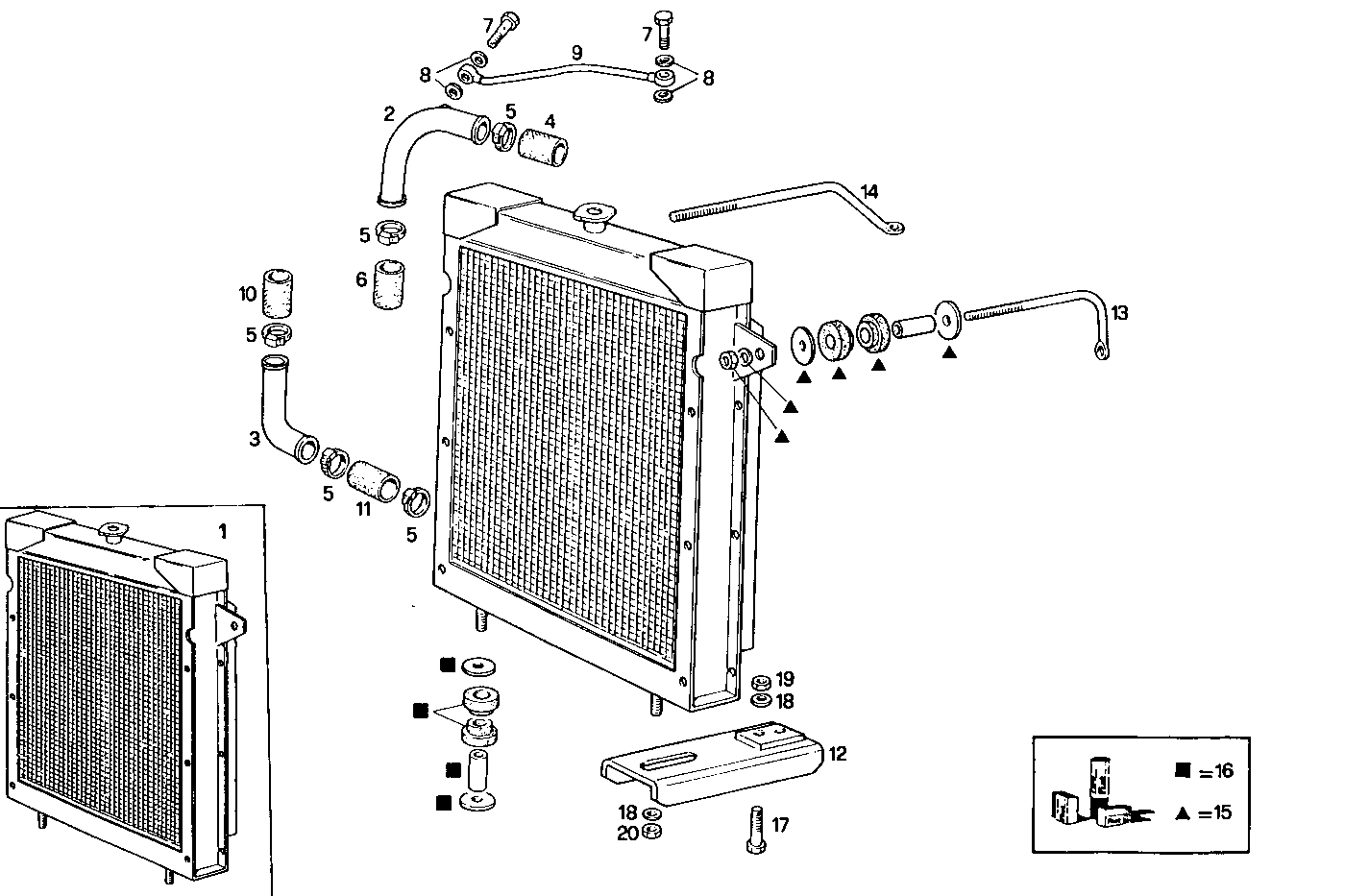

RADIATOR
8141i67.02A010 — 8141i67
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8013568 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8019018 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8018019 | WATER PIPE WATER PIPE | 1 | |
| 4 | 8102099 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 17764791 | CLIP CLIP | 8 | |
| 6 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 8 | 98474305 | WASHER WASHER | 4 | |
| 9 | 8019033 | WATER PIPE WATER PIPE | 1 | |
| 10 | 8017516 | WATER HOSE WATER HOSE | 1 | |
| 11 | 8019020 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 12 | 8013934 | SUPPORT SUPPORT | 2 | |
| 13 | 8019016 | TIE ROD TIE ROD | 1 | |
| 14 | 8019017 | TIE ROD TIE ROD | 1 | |
| 15 | 8090340 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 16 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 17 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 18 | 17090174 | SPRING WASHER SPRING WASHER | 8 | |
| 19 | 17038121 | HEXAGON NUT HEXAGON NUT | 4 | |
| 20 | 17038221 | HEXAGON NUT HEXAGON NUT | 4 |
