INDUSTRIAL CLUTCH
8141Si27.02 — 8141Si27

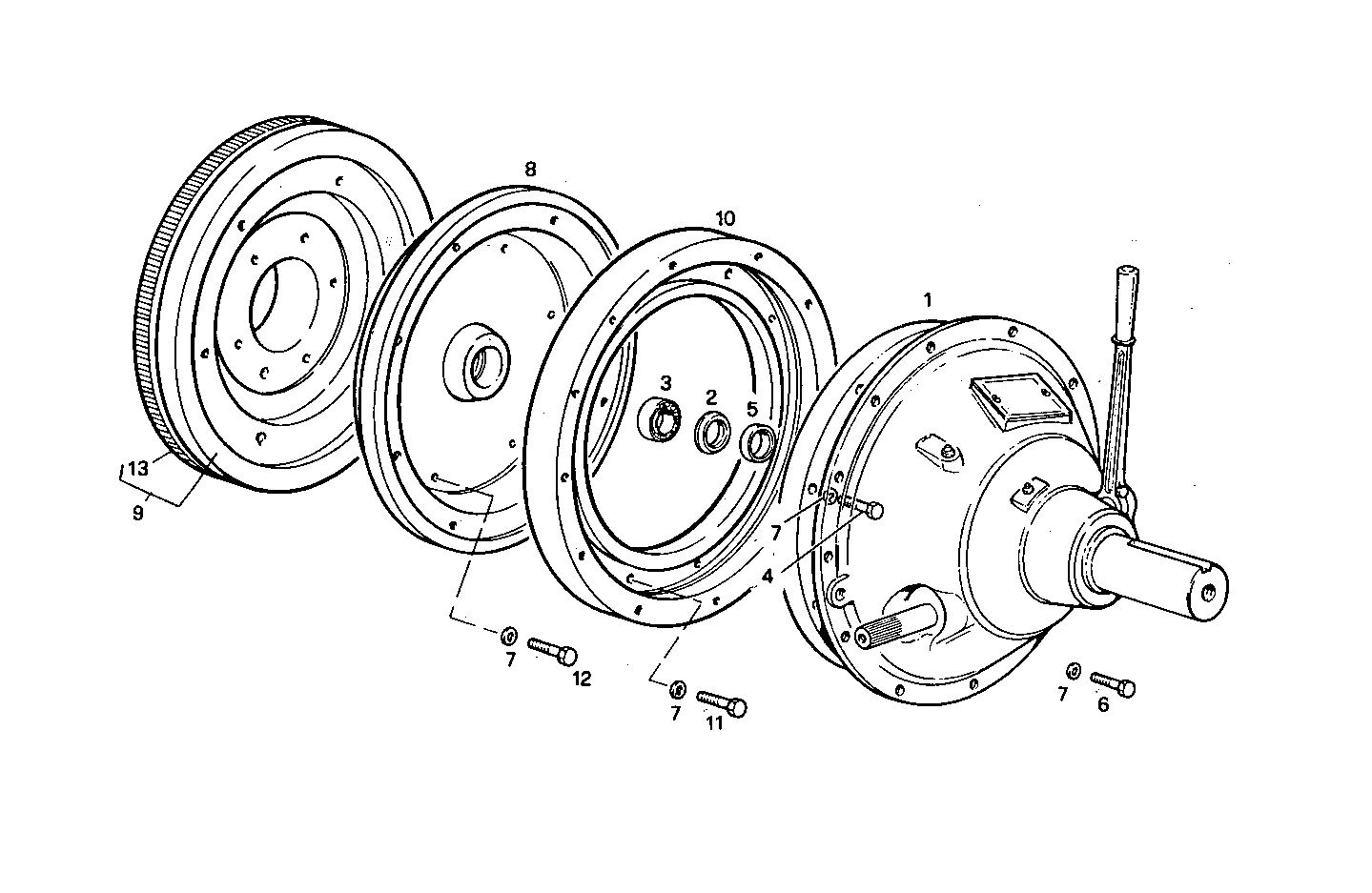

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015230 | CLUTCH CLUTCH | 1 | |
| 2 | 4931870 | SPACING BAR SPACING BAR | 1 | |
| 3 | 28102110 | DRIVE BEARING DRIVE BEARING | 1 | |
| 4 | 16608224 | SCREW SCREW | 8 | |
| 5 | 4934469 | STOP WASHER STOP WASHER | 1 | |
| 6 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 7 | 17090174 | SPRING WASHER SPRING WASHER | 38 | |
| 8 | 8024306 | FLANGE FLANGE | 1 | |
| 9 | 8024307 | FLYWHEEL FLYWHEEL | 1 | |
| 10 | 8017146 | FLANGE FLANGE | 1 | |
| 11 | 15970924 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 12 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 13 | 4279804 | RING GEAR RING GEAR | 1 |
