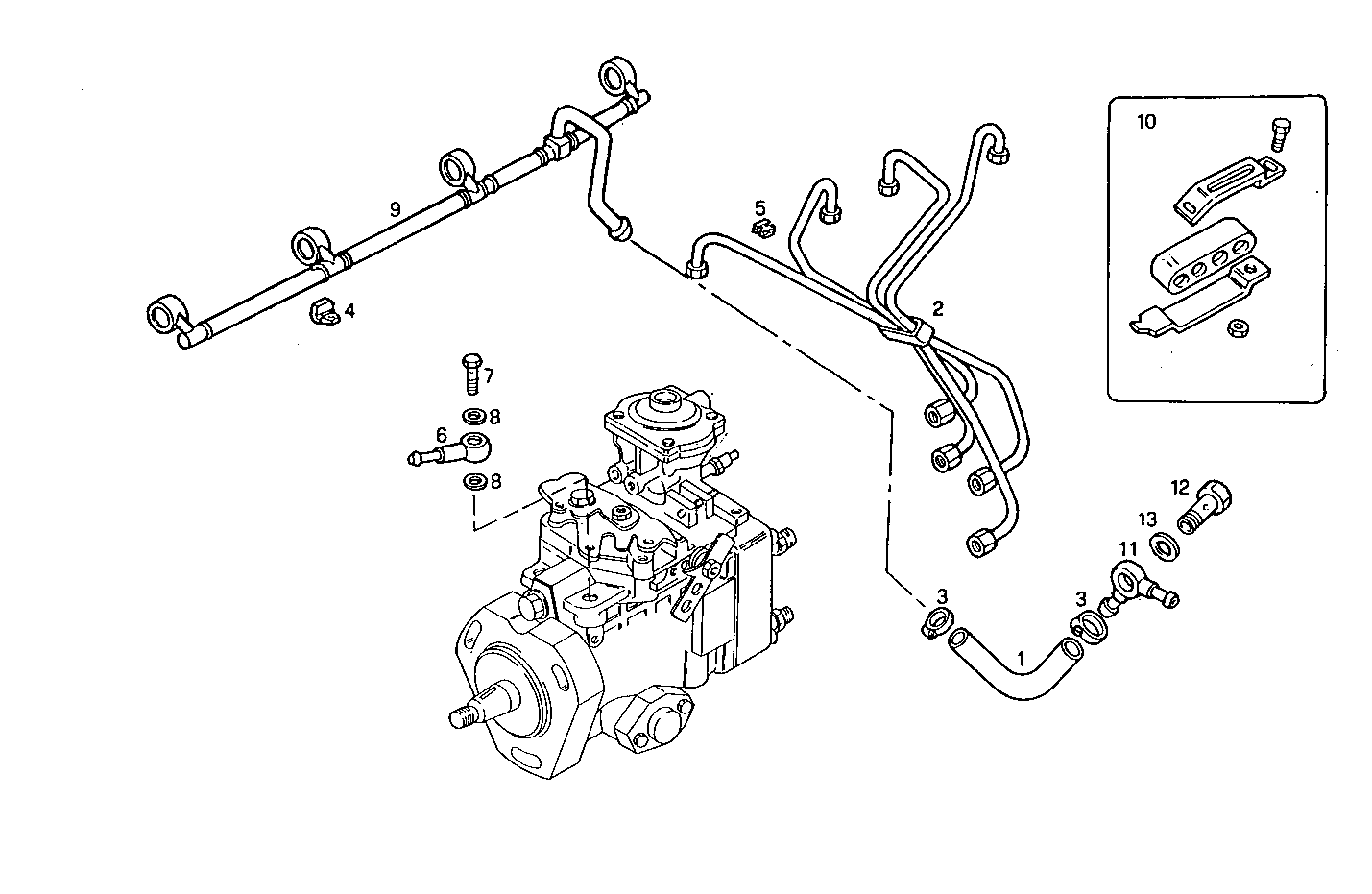

INJECTION PIPES
8141Si27.02 — 8141Si27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 19056687 | RUBBER HOSE RUBBER HOSE | 1 | |
| 2 | 98455396 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 3 | 17764391 | CLIP CLIP | 2 | |
| 4 | 4734007 | RETAINER RETAINER | 1 | |
| 5 | 4734008 | RETAINER RETAINER | 1 | |
| 6 | 4722869 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 7 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 8 | 10296160 | SEAL GASKET SEAL GASKET | 2 | |
| 9 | 98416553 | FUEL LINE FUEL LINE | 1 | |
| 10 | 4806613 | RETAINER RETAINER | 1 | |
| 11 | 4775496 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 13 | 98474306 | WASHER WASHER | 2 |
