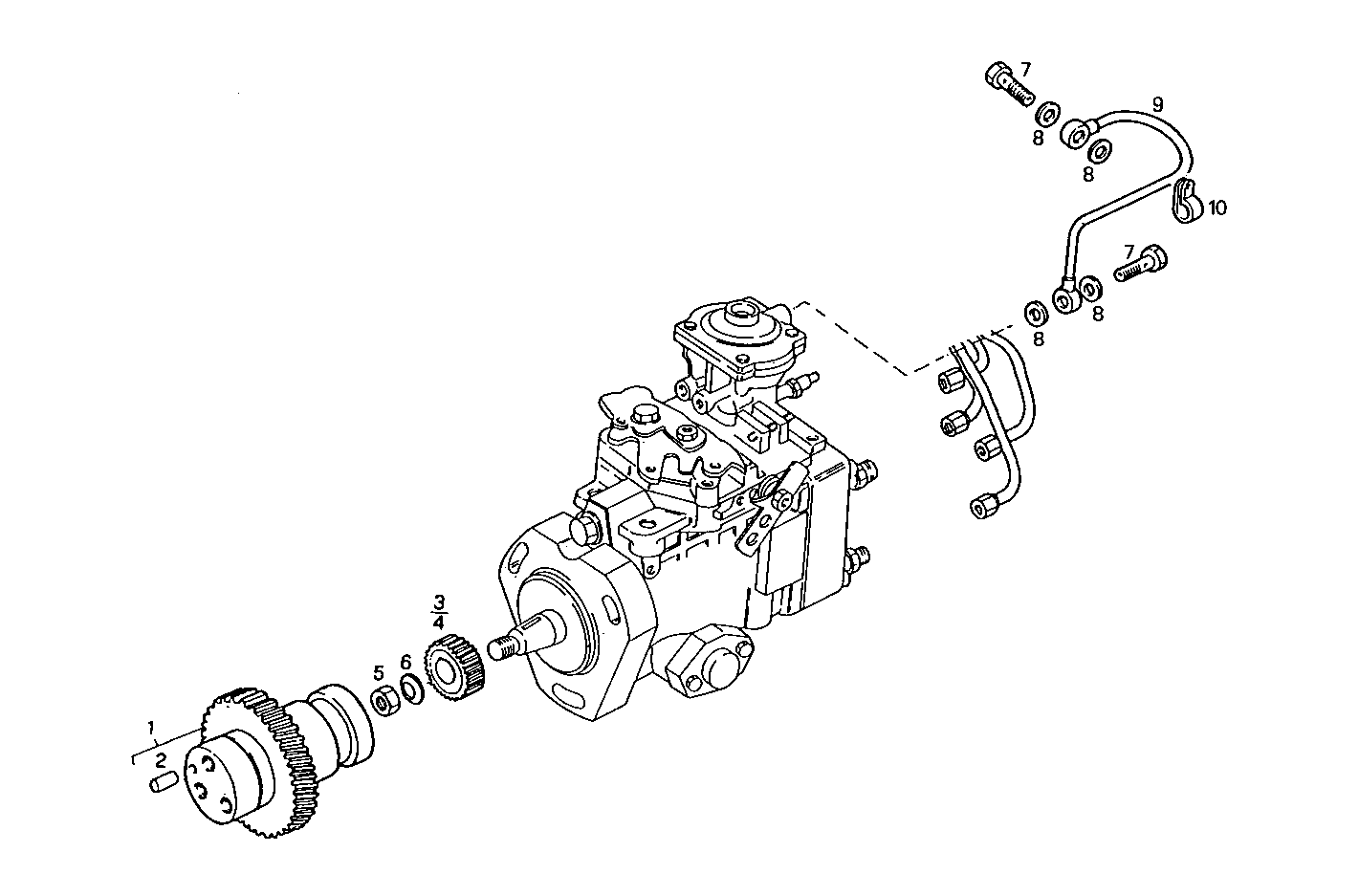

INJECTION PUMP DRIVE
8141Si27.02 — 8141Si27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99483385 | SLIDING PROP.SHAFT SLIDING PROP.SHAFT | 1 | |
| 2 | 10335910 | PARALLEL PIN PARALLEL PIN | 1 | |
| 3 | 4772022 | INJECT.PUMP BUSH INJECT.PUMP BUSH | 1 | |
| 4 | 4797226 | INJECT.PUMP BUSH INJECT.PUMP BUSH | 1 | |
| 5 | 17043231 | NUT NUT | 1 | |
| 6 | 768389 | CIRCLIP CIRCLIP | 1 | |
| 7 | 11904011 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 8 | 10262760 | SEAL GASKET SEAL GASKET | 4 | |
| 9 | 7302725 | FUEL LINE FUEL LINE | 1 | |
| 10 | 10449890 | PIPE CLIP PIPE CLIP | 1 |
