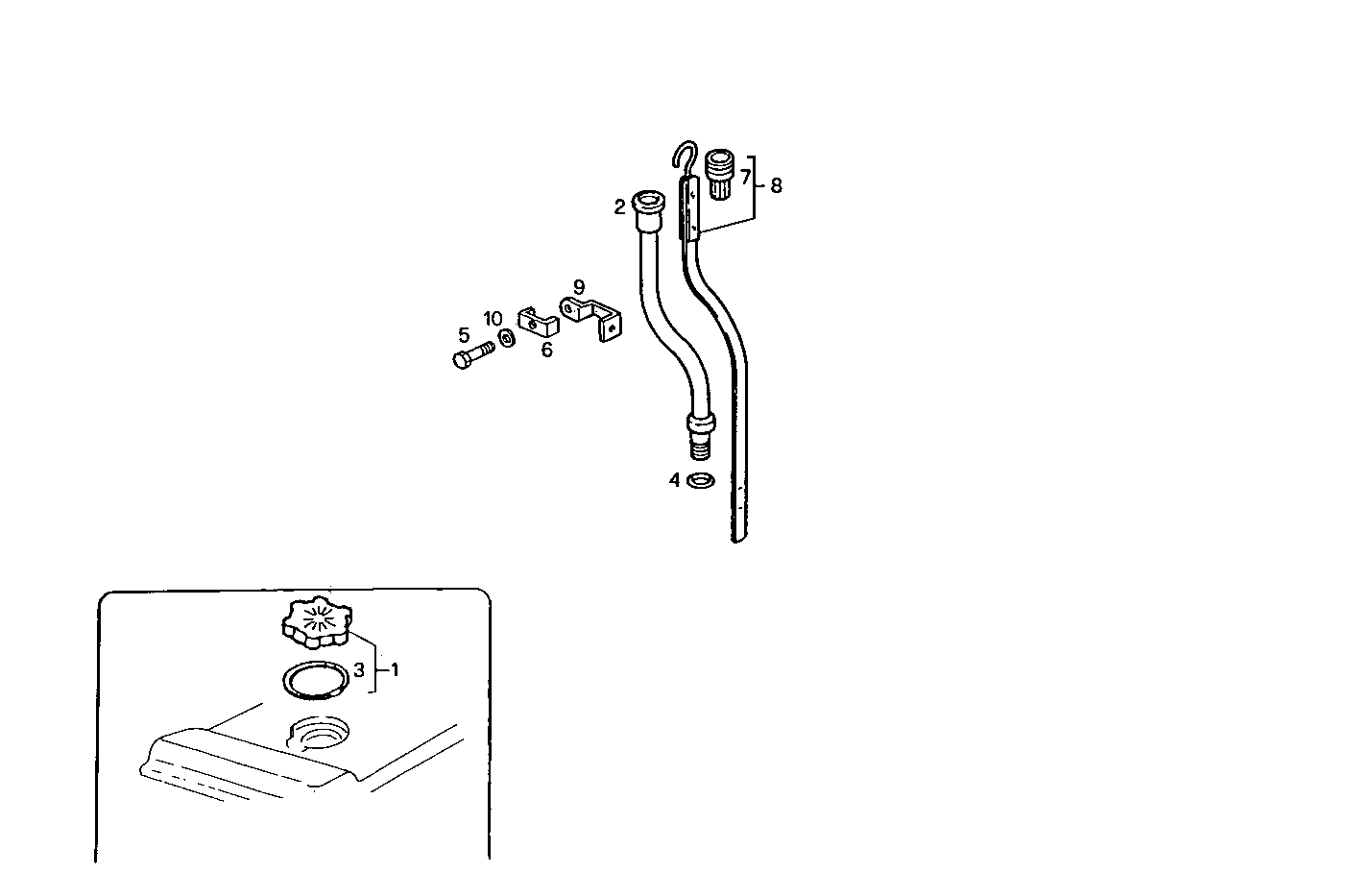

OIL DIPSTICK
8141Si27.02 — 8141Si27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98442027 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 2 | 7302234 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 3 | 98412146 | GASKET GASKET | 1 | |
| 4 | 14452981 | O-RING O-RING | 2 | |
| 5 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 4716870 | RETAINER RETAINER | 1 | |
| 7 | 4102056 | RUBBER GASKET RUBBER GASKET | 1 | |
| 8 | 7303007 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 9 | 7303600 | RETAINER RETAINER | 1 | |
| 10 | 11193874 | WASHER WASHER | 1 |
