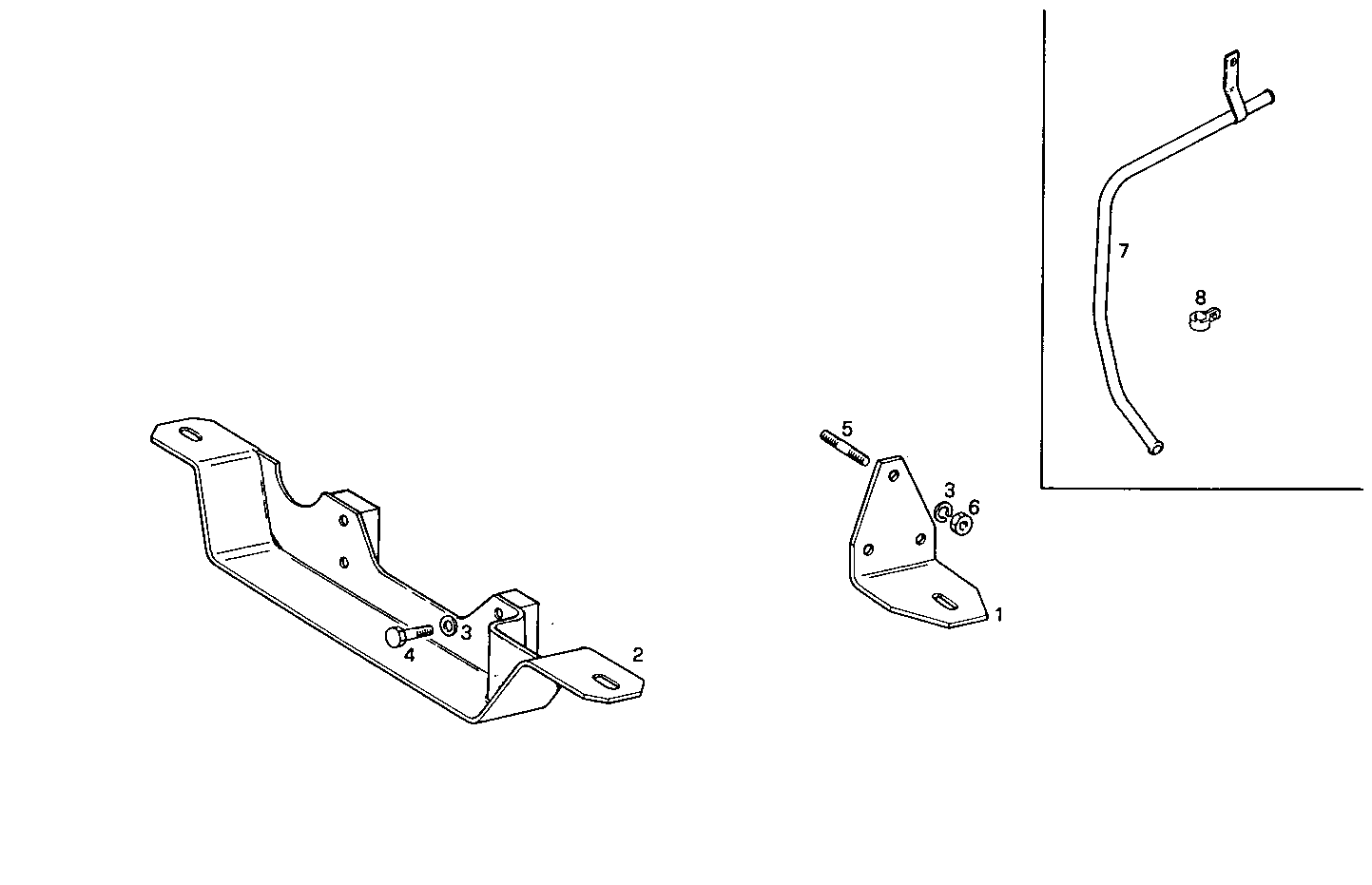

RIGID MOUNTING
8141Si27.02 — 8141Si27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4919262 | SUPPORT SUPPORT | 2 | |
| 2 | 8101293 | SUPPORT SUPPORT | 1 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 10 | |
| 4 | 11288021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 13546321 | STUD STUD | 6 | |
| 6 | 17038221 | HEXAGON NUT HEXAGON NUT | 6 | |
| 7 | 8021279 | WATER PIPE WATER PIPE | 1 | |
| 8 | 17316790 | CLIP CLIP | 1 |
