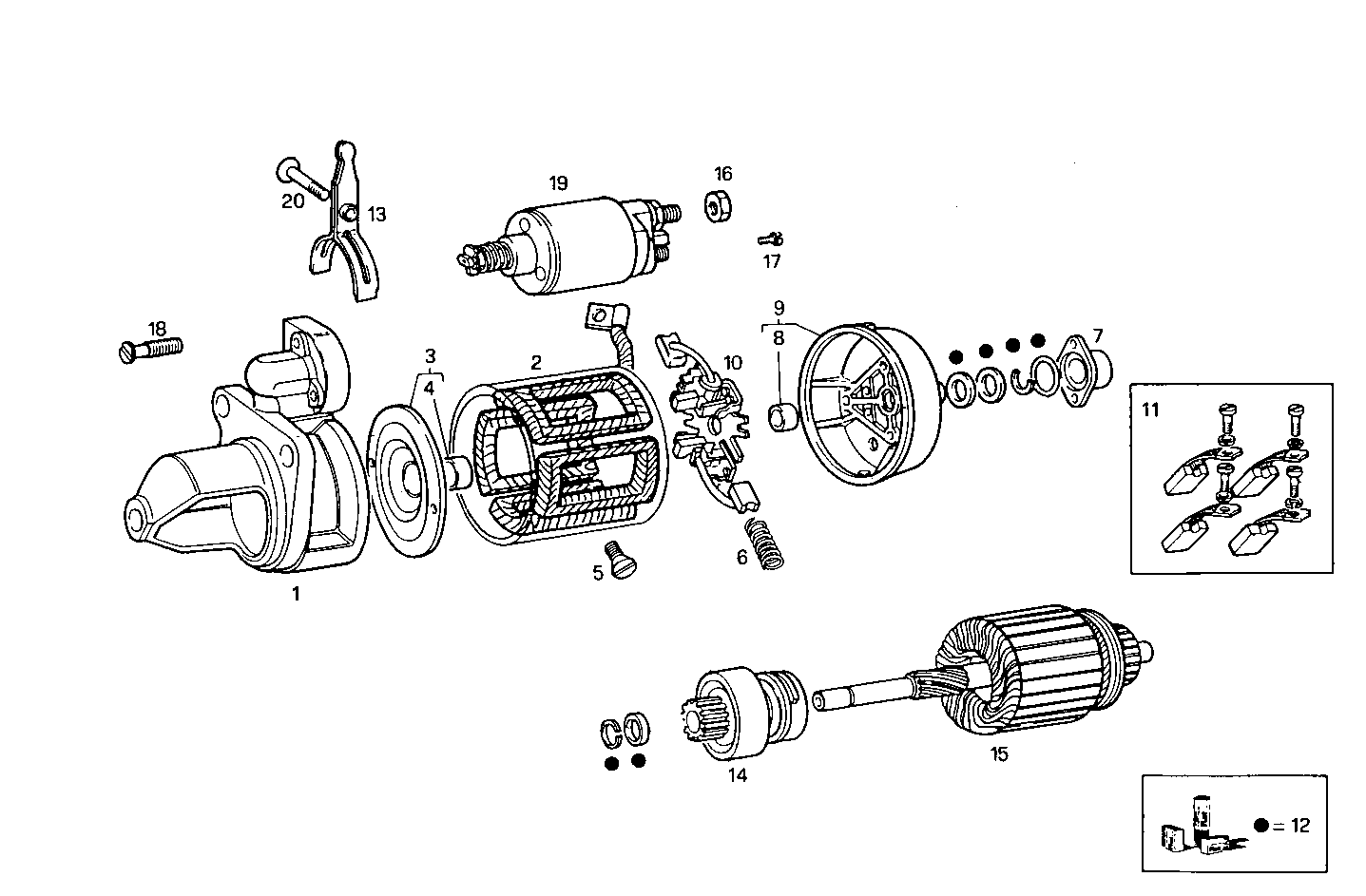

STARTER MOTOR (COMPONENTS)
8141Si27.02 — 8141Si27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 9936728 | SUPPORT SUPPORT | 1 | |
| 2 | 79026094 | STARTER WINDING STARTER WINDING | 1 | |
| 3 | 1308810 | STARTER SUPPORT STARTER SUPPORT | 1 | |
| 4 | 8997795 | BUSH BUSH | 1 | |
| 5 | 79033663 | SCREW SCREW | 4 | |
| 6 | 79026100 | SPRING SPRING | 4 | |
| 7 | 79026098 | COVER COVER | 1 | |
| 8 | 79026097 | BUSH BUSH | 1 | |
| 9 | 9937476 | SUPPORT SUPPORT | 1 | |
| 10 | 79026095 | BRUSH HOLDER BRUSH HOLDER | 1 | |
| 11 | 79050437 | KIT-STARTER KIT-STARTER | 4 | |
| 12 | 79045355 | KIT-STARTER KIT-STARTER | 1 | |
| 13 | 8190144 | START.COUPL.LEVER START.COUPL.LEVER | 1 | |
| 14 | 79026090 | STARTER PINION STARTER PINION | 1 | |
| 15 | 9983622 | STARTER ARMATURE STARTER ARMATURE | 1 | |
| 16 | 12164711 | HEXAGON NUT HEXAGON NUT | 2 | |
| 17 | 10374611 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 18 | 79087210 | SCREW SCREW | 1 | |
| 19 | 9937474 | SOLENOID SOLENOID | 1 | |
| 20 | 79033669 | SCREW SCREW | 1 |
