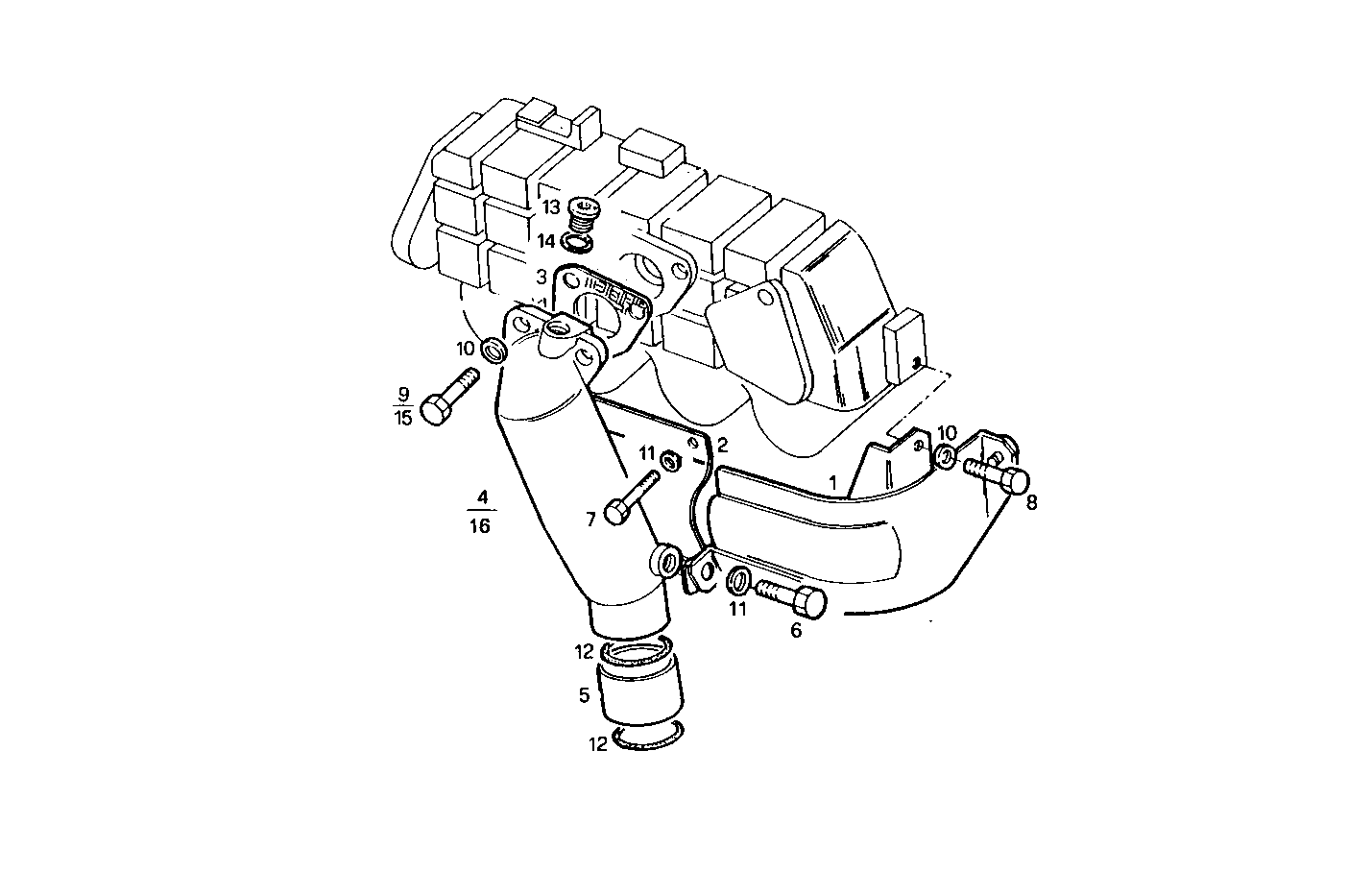

SUPERCHARGING LINES
8141Si27.02 — 8141Si27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 7303232 | PROTECTION PROTECTION | 1 | |
| 2 | 7302056 | PROTECTION PROTECTION | 1 | |
| 3 | 98421281 | GASKET GASKET | 1 | |
| 4 | 98410541 | LINE LINE | 1 | |
| 5 | 7302186 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 6 | 16043021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 16603524 | SCREW SCREW | 2 | |
| 8 | 16043124 | SCREW SCREW | 1 | |
| 9 | 16605721 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 11 | 17088474 | WASHER WASHER | 3 | |
| 12 | 14464381 | O-RING O-RING | 2 | |
| 13 | 4827588 | PLUG PLUG | 1 | |
| 14 | 10263360 | SEAL GASKET SEAL GASKET | 1 | |
| 15 | 16606021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 98443350 | INTAKE ELBOW INTAKE ELBOW | 1 |
