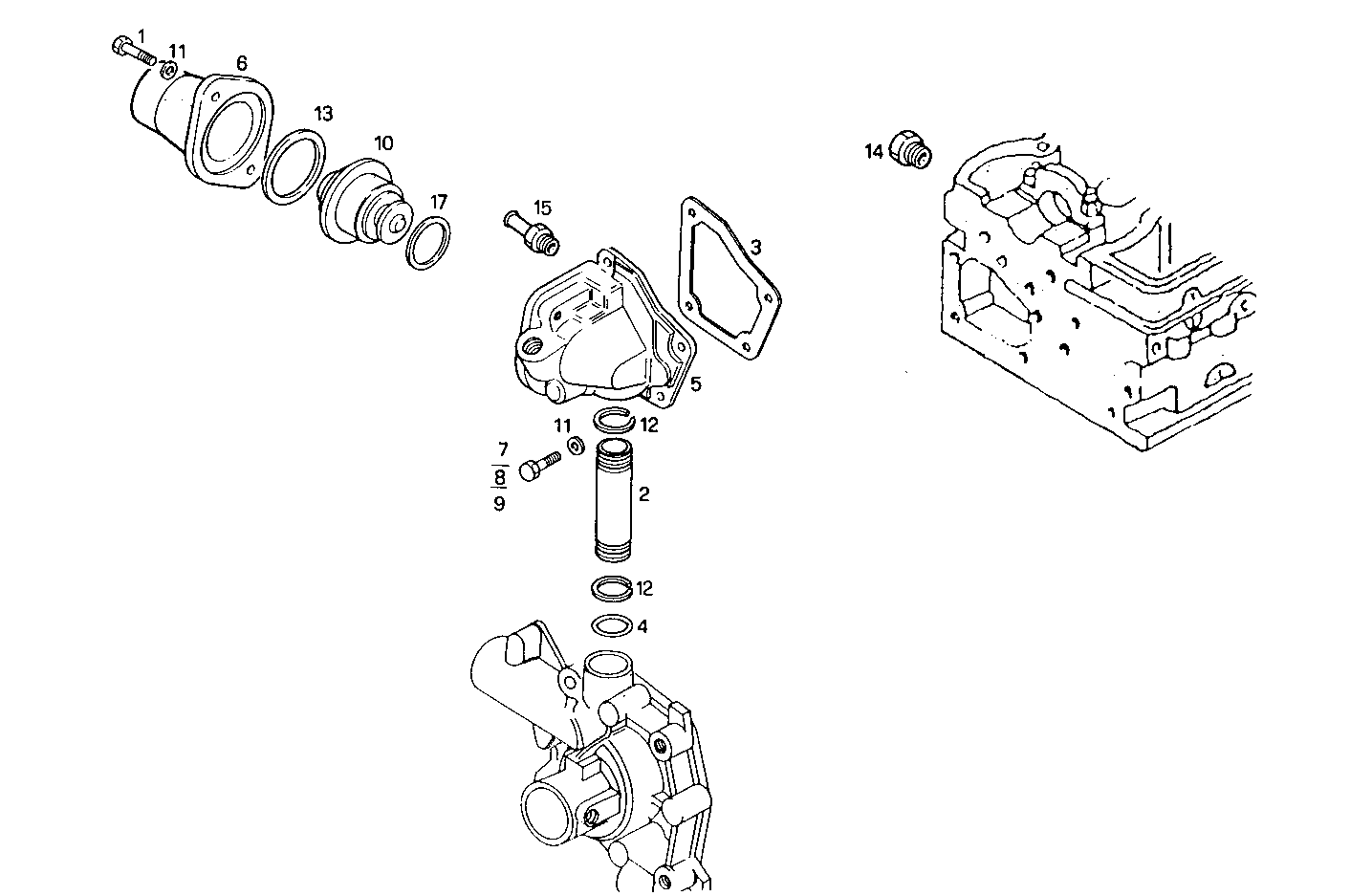

THERMOSTAT
8141Si27.02 — 8141Si27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 2 | 4697947 | WATER PIPE WATER PIPE | 1 | |
| 3 | 98421297 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 17278481 | O-RING O-RING | 4 | |
| 5 | 4828059 | THERMOSTAT BODY THERMOSTAT BODY | 1 | |
| 6 | 7301254 | COVER COVER | 1 | |
| 7 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 16044521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 4826602 | THERMOSTAT THERMOSTAT | 1 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 12 | 16866173 | CIRCLIP CIRCLIP | 2 | |
| 13 | 14455281 | O-RING O-RING | 1 | |
| 14 | 16997411 | THREADED PLUG THREADED PLUG | 1 | |
| 15 | 98420965 | THREADED UNION THREADED UNION | 1 | |
| 17 | 7303173 | GASKET GASKET | 1 |
