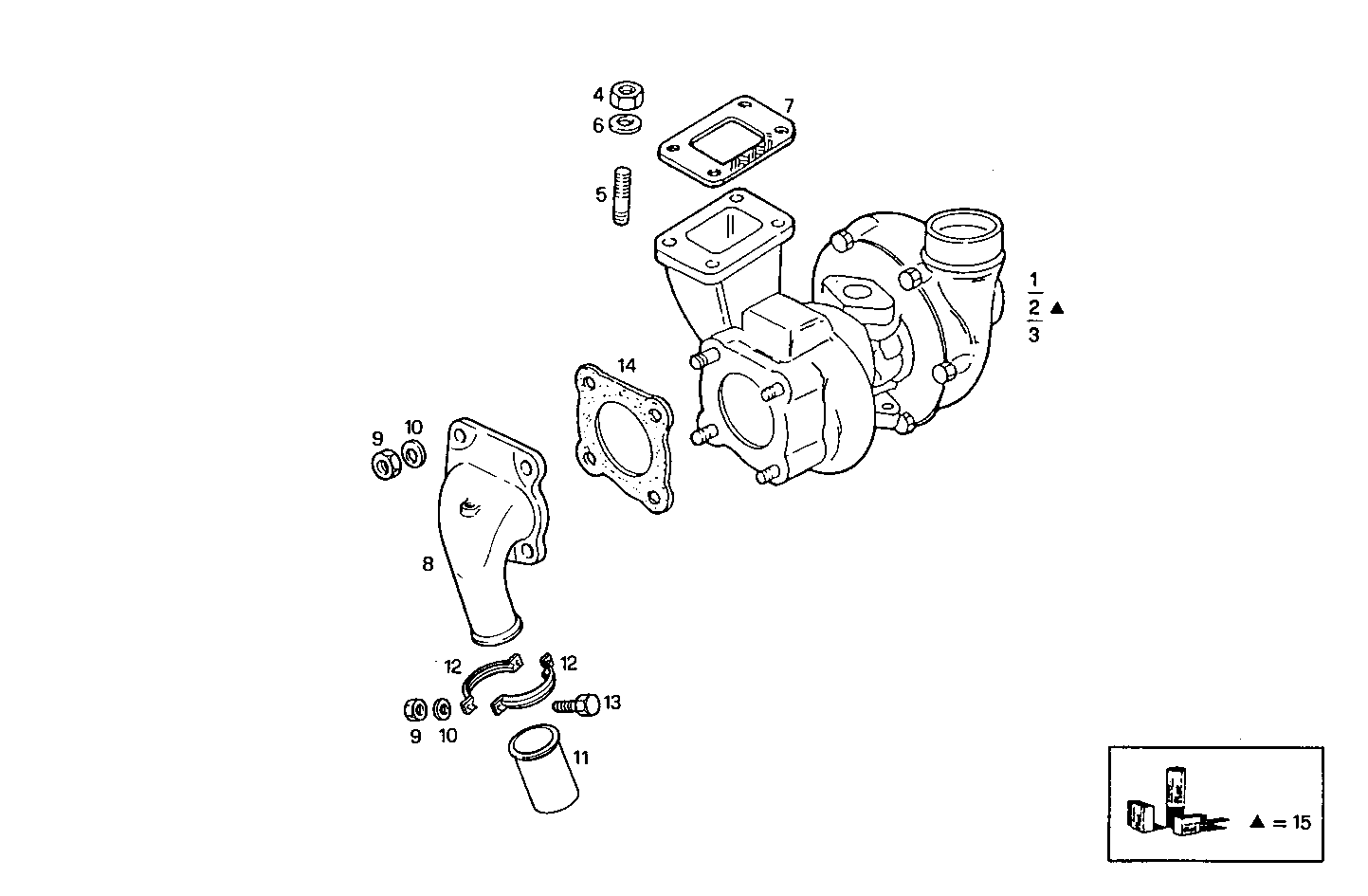

TURBOCHARGER
8141Si27.02 — 8141Si27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98418620 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 4858574 | TURBOCHARGER TURBOCHARGER | 1 | |
| 3 | 98492693 | TURBOCHARGER TURBOCHARGER | 1 | |
| 4 | 14061711 | HEXAGON NUT HEXAGON NUT | 4 | |
| 5 | 98492637 | STUD STUD | 4 | |
| 6 | 16665514 | WASHER WASHER | 4 | |
| 7 | 4834948 | EXH. MANIFOLD GKT EXH. MANIFOLD GKT | 1 | |
| 8 | 8009893 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 11 | 8006939 | EXHAUST PIPE EXHAUST PIPE | 1 | |
| 12 | 8586089 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 13 | 16606524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 4851419 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 8092487 | KIT-TURBOCHARGER KIT-TURBOCHARGER | 1 |
